ZX-SFM07-65
Lomosen
12MP
2/3″
F7.5
＜0.07
0.7X
C-mount
65mm±3%
| Quantity: | |
|---|---|
Product Introduction

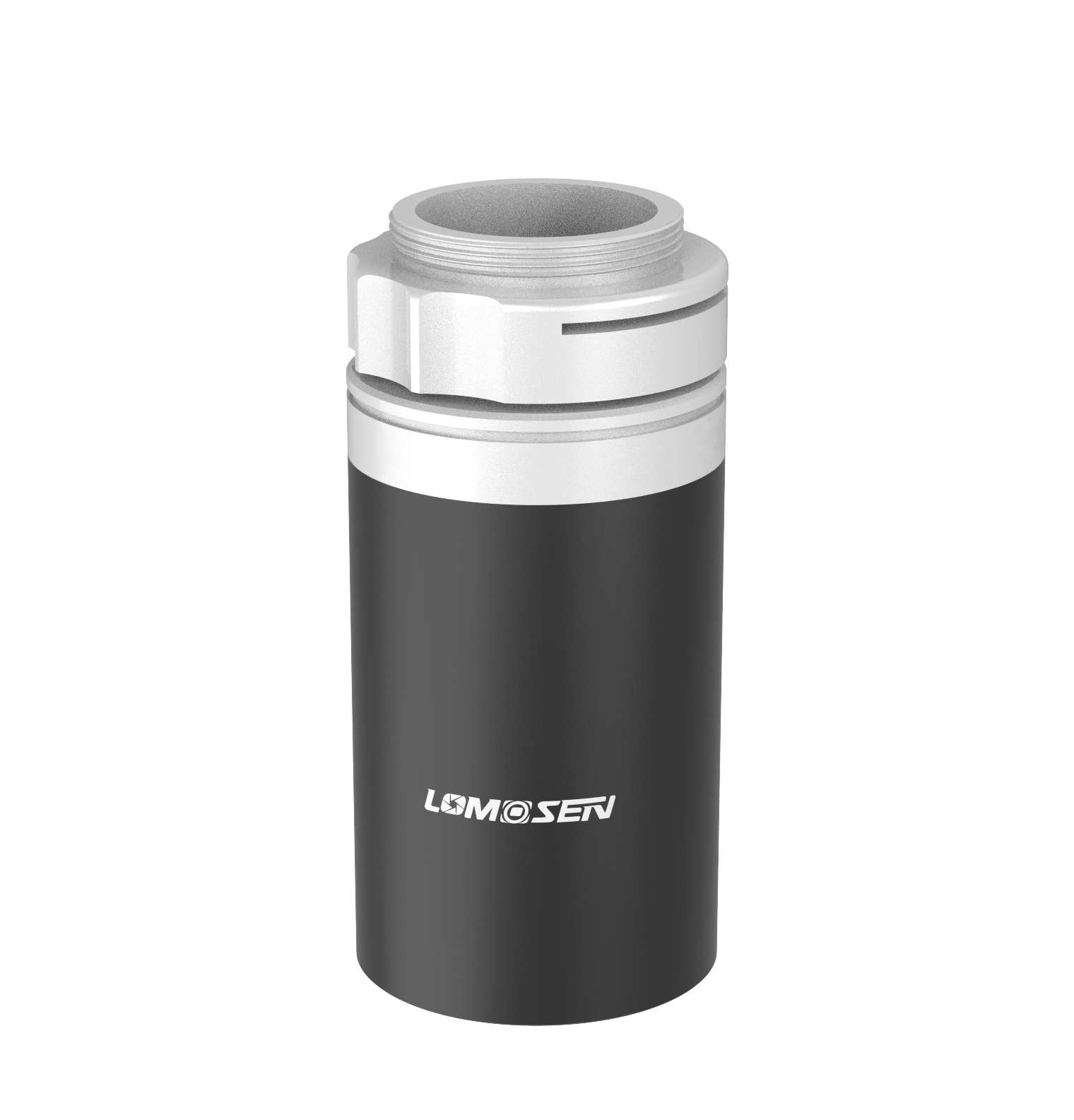

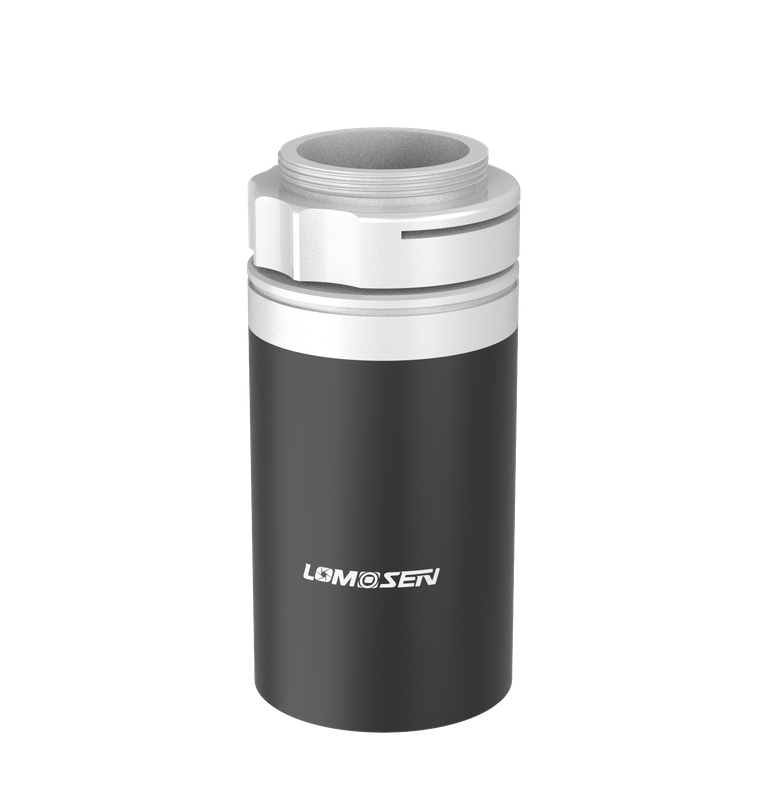

The ZX-SFM07-65 fixed-magnification industrial lens is a fixed-magnification optical lens specifically designed for high-magnification, close-range precision imaging applications. This lens features a 0.7X fixed magnification design, achieving clear and stable high-detail imaging at a working distance of 65mm. It is ideal for industrial vision applications requiring magnified observation and precise inspection of minute features.
Thanks to its precise optical structure design, the ZX-SFM07-65 boasts an effective depth of field of 1.7mm, allowing for accurate focusing on the target plane at close range, clearly rendering edge contours and detailed information. This characteristic gives it a significant advantage in applications with a clearly defined focal plane and consistent inspection height, helping to improve measurement accuracy and inspection consistency.
The lens demonstrates excellent imaging stability and repeatability in practical applications. It is suitable for scenarios such as precision electronic component inspection, chip and packaging appearance inspection, micro-structure size measurement, and precision assembly process monitoring. The ZX-SFM07-65 provides a reliable optical foundation for high-precision vision systems and is an ideal choice for projects requiring high magnification and imaging accuracy.
Product Introduction
The ZX-SFM07-65 fixed-magnification industrial lens is a fixed-magnification optical lens specifically designed for high-magnification, close-range precision imaging applications. This lens features a 0.7X fixed magnification design, achieving clear and stable high-detail imaging at a working distance of 65mm. It is ideal for industrial vision applications requiring magnified observation and precise inspection of minute features.
Thanks to its precise optical structure design, the ZX-SFM07-65 boasts an effective depth of field of 1.7mm, allowing for accurate focusing on the target plane at close range, clearly rendering edge contours and detailed information. This characteristic gives it a significant advantage in applications with a clearly defined focal plane and consistent inspection height, helping to improve measurement accuracy and inspection consistency.
The lens demonstrates excellent imaging stability and repeatability in practical applications. It is suitable for scenarios such as precision electronic component inspection, chip and packaging appearance inspection, micro-structure size measurement, and precision assembly process monitoring. The ZX-SFM07-65 provides a reliable optical foundation for high-precision vision systems and is an ideal choice for projects requiring high magnification and imaging accuracy.
