ZX-SFM05-112
Lomosen
12MP
2/3″
F6
＜0.05
0.5X
C-mount
112mm±3%
| Quantity: | |
|---|---|
Product Introduction

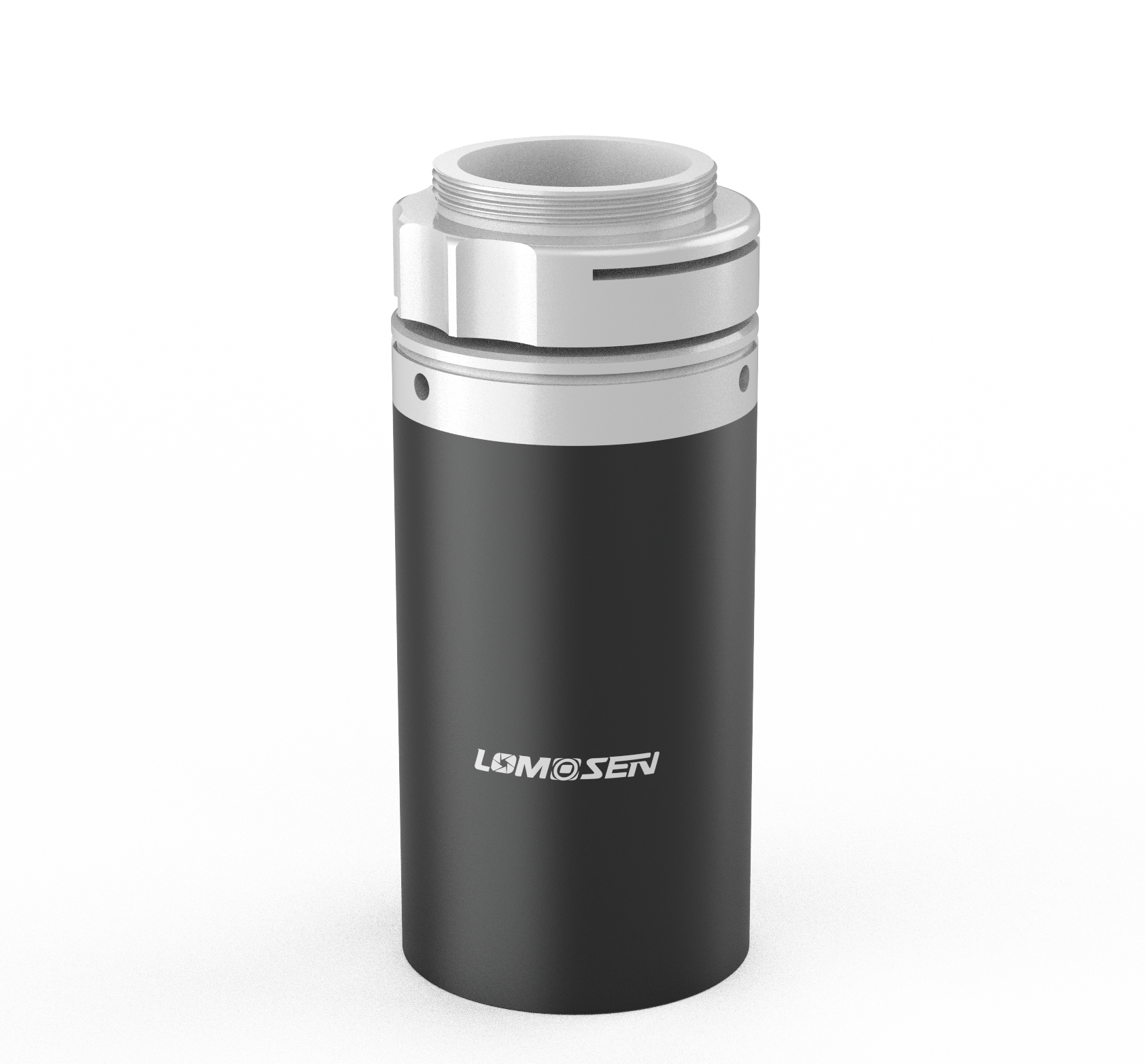

The ZX-SFM05-112 fixed-magnification industrial lens is a fixed-magnification optical product that strikes a good balance between imaging accuracy and working space. It is specifically designed for machine vision inspection scenarios requiring medium magnification and high stability. This lens features a 0.5X fixed magnification, ensuring detailed magnification while covering a more practical field of view, making it suitable for applications where both target size and imaging range are important.
The lens has a working distance of 112mm, providing ample space for on-site installation and lighting arrangements, enhancing system integration flexibility. In actual imaging, the ZX-SFM05-112 can obtain clear images at a relatively stable shooting distance, helping to reduce imaging fluctuations caused by positional deviations.
Furthermore, the 2.5mm effective depth of field allows the lens to maintain good image clarity even with slight height variations in the inspection plane, improving detection consistency and repeatability. This feature is particularly suitable for stable observation of product surfaces, structural edges, and assembly status.
The ZX-SFM05-112 is widely applicable to machine vision systems for electronic component inspection, precision parts appearance inspection, dimensional measurement, and automated assembly process monitoring. It is a fixed-magnification lens solution that combines imaging quality and practicality.
