ZX-SFM032-59
Lomosen
12MP
2/3″
F6
＜0.11
0.32X
C-mount
59mm±3%
| Quantity: | |
|---|---|
Product Introduction

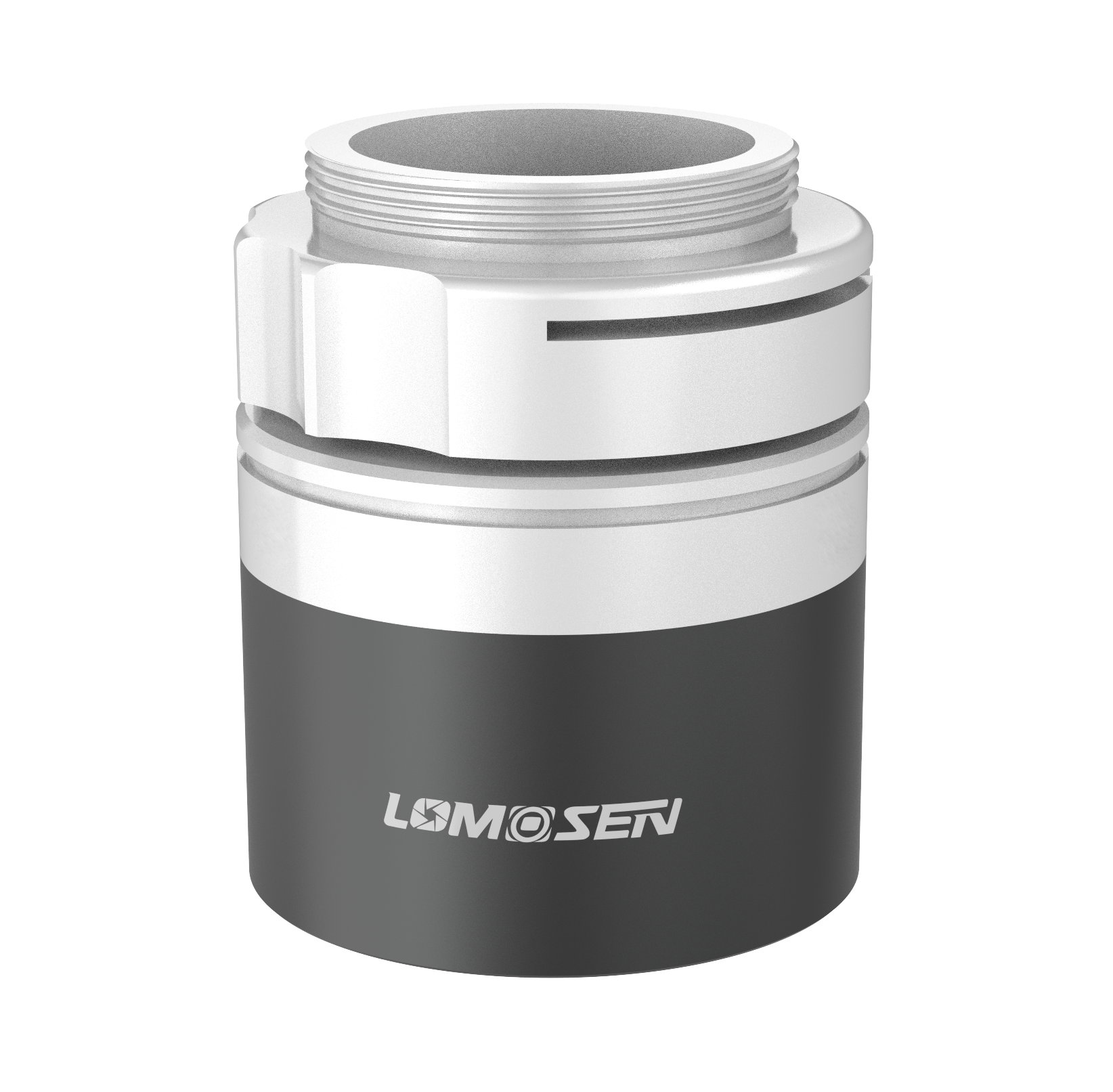

The ZX-SFM032-59 is a stable fixed-magnification industrial lens with a 0.32X magnification, providing clear and accurate imaging over a wide field of view, suitable for low- to medium-magnification visual inspection needs. With a working distance of 59mm, it balances image quality with compact equipment installation and flexible system integration.
Furthermore, the lens features an effective depth of field of 6.2mm, adapting to applications where the measured object has a certain height difference, ensuring stable imaging during production and reducing the need for frequent focusing. This product is widely applicable to product dimension measurement, component inspection, and continuous inspection applications in automated production lines.
