English
Language
 |
ZX-SFM02-97
Lomosen
12MP
2/3″
F6
＜0.04
0.2X
C-mount
97mm±3%
| Quantity: | |
|---|---|
Product Introduction

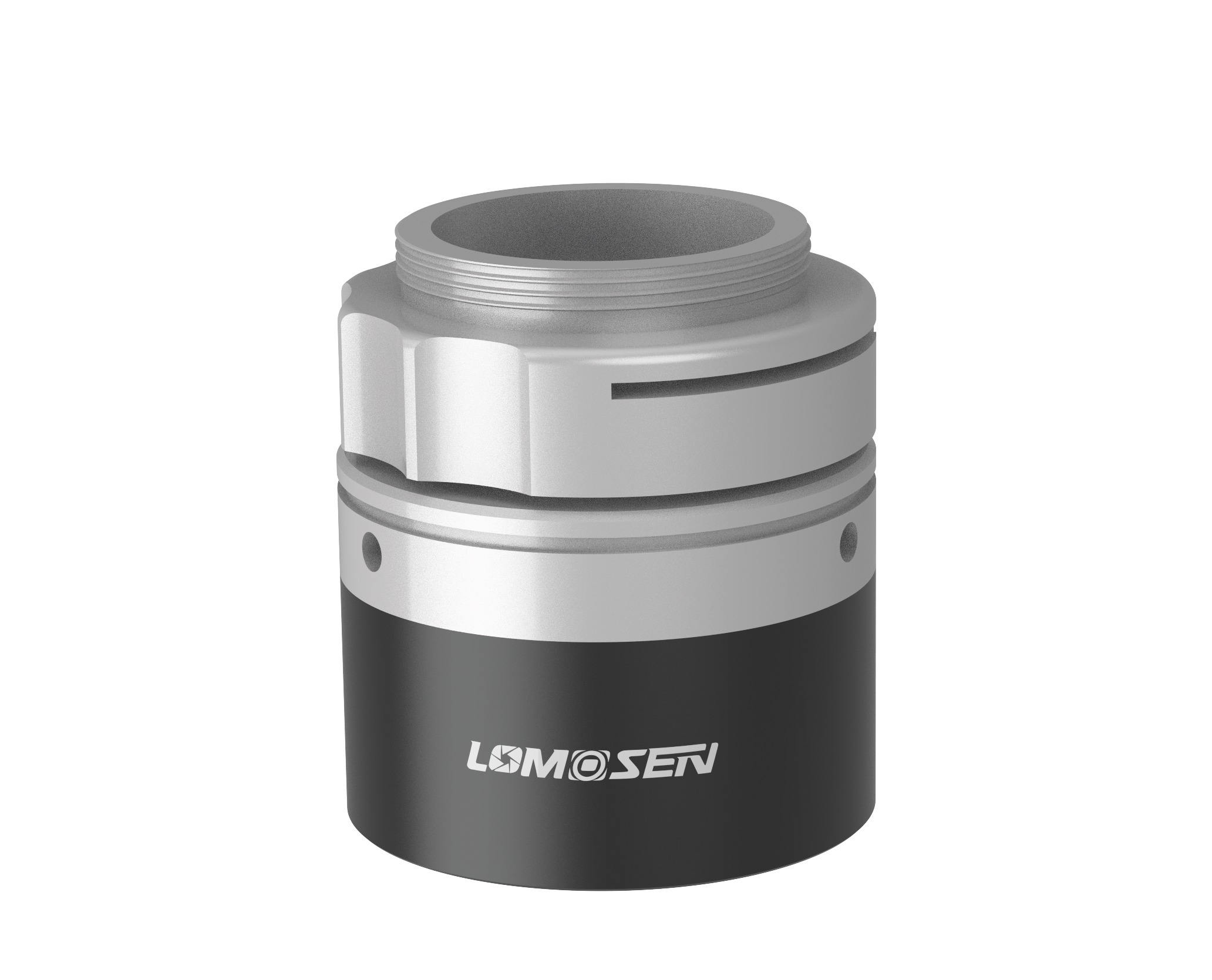

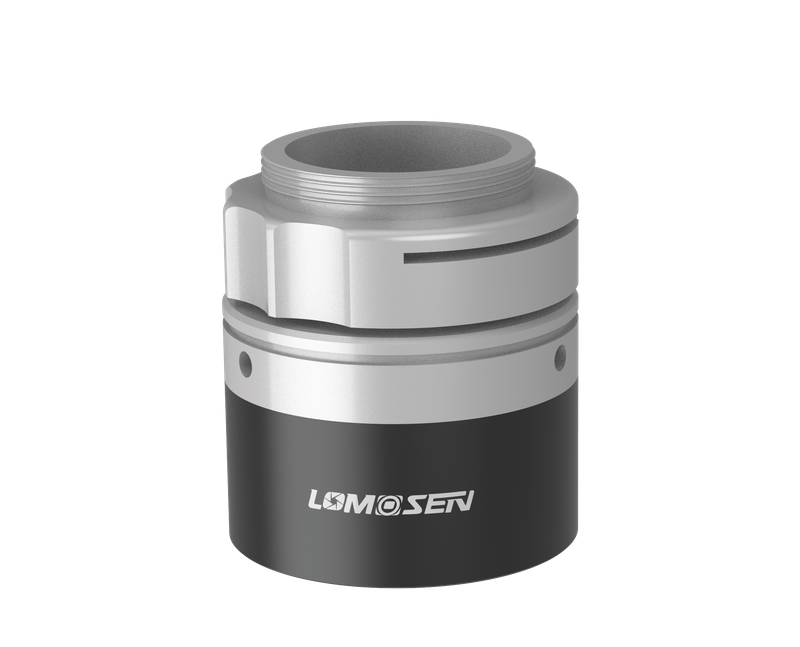

The ZX-SFM02-97 fixed-magnification industrial lens is a low-magnification fixed-magnification lens designed for medium-to-close-range, wide-field-of-view inspection scenarios. It is suitable for machine vision systems with high requirements for imaging stability and inspection consistency. This product adopts a 0.2X fixed magnification design, enabling clear presentation of the overall structure and key features of the object under test while maintaining a large field of view coverage.
The lens has a 97mm working distance, maintaining good installation flexibility even in compact equipment structures. This facilitates the rational layout of cameras, light sources, and mechanical components, effectively improving system integration efficiency.
Meanwhile, the 15.2mm effective depth of field allows the ZX-SFM02-97 to obtain clear and stable imaging results even when the object under test has a certain height difference or positional offset, reducing the need for frequent focusing and improving the continuity and reliability of the inspection process.
The ZX-SFM02-97 is widely applicable to machine vision applications such as large-size product appearance inspection, automated assembly verification, packaging inspection, and workstation positioning and guidance. It is a fixed-magnification lens solution that balances practicality and imaging stability.
Product Introduction
The ZX-SFM02-97 fixed-magnification industrial lens is a low-magnification fixed-magnification lens designed for medium-to-close-range, wide-field-of-view inspection scenarios. It is suitable for machine vision systems with high requirements for imaging stability and inspection consistency. This product adopts a 0.2X fixed magnification design, enabling clear presentation of the overall structure and key features of the object under test while maintaining a large field of view coverage.
The lens has a 97mm working distance, maintaining good installation flexibility even in compact equipment structures. This facilitates the rational layout of cameras, light sources, and mechanical components, effectively improving system integration efficiency.
Meanwhile, the 15.2mm effective depth of field allows the ZX-SFM02-97 to obtain clear and stable imaging results even when the object under test has a certain height difference or positional offset, reducing the need for frequent focusing and improving the continuity and reliability of the inspection process.
The ZX-SFM02-97 is widely applicable to machine vision applications such as large-size product appearance inspection, automated assembly verification, packaging inspection, and workstation positioning and guidance. It is a fixed-magnification lens solution that balances practicality and imaging stability.
