ZX-SFM02-275
Lomosen
12MP
2/3″
F6
＜0.03
0.2X
C-mount
275mm±3%
| Quantity: | |
|---|---|
Product Introduction

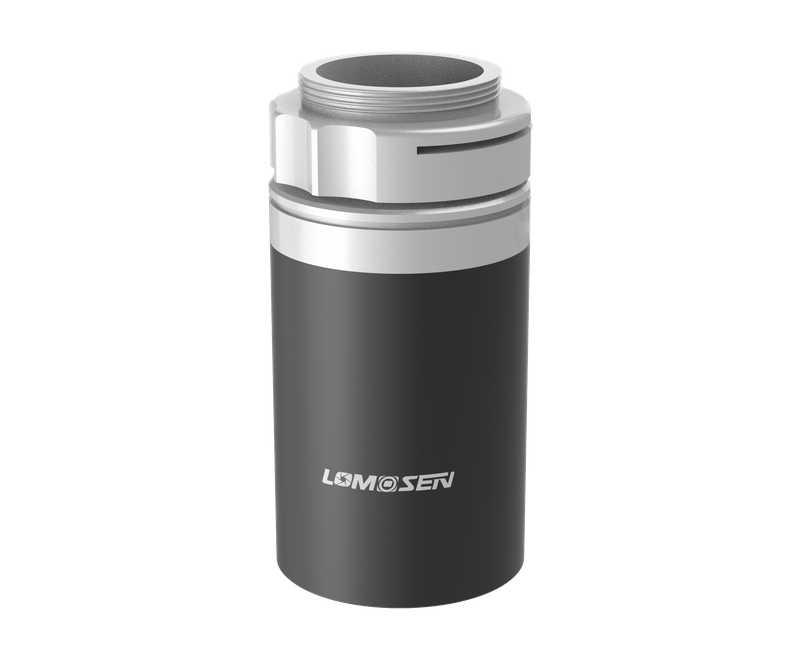

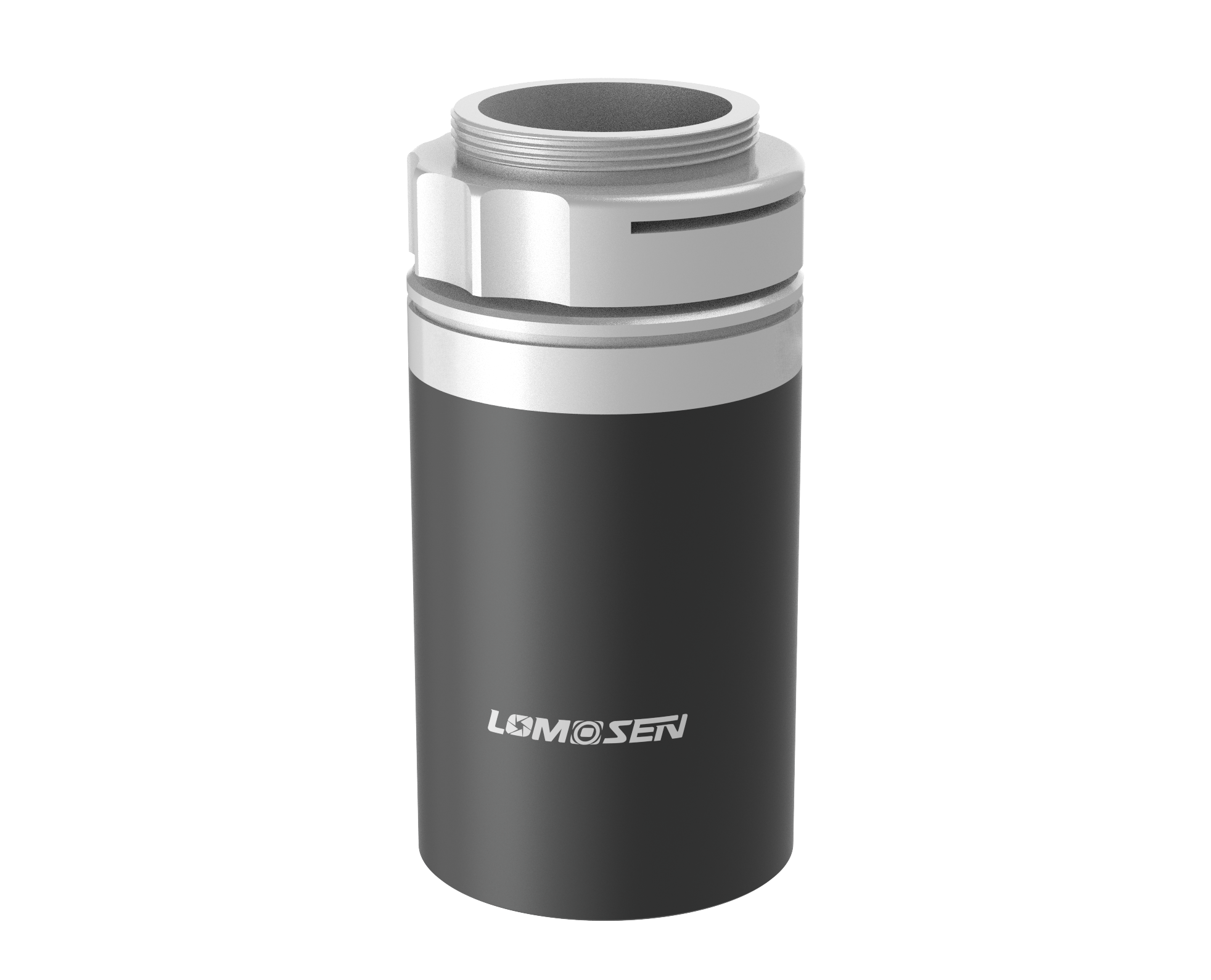

The ZX-SFM02-275 fixed-magnification industrial lens is a low-magnification fixed-focus lens designed specifically for large field-of-view and long working distance vision inspection applications. Featuring a fixed magnification of 0.2X, it can cover a larger imaging area at longer working distances, making it suitable for stable observation of overall structure, appearance contours, and macroscopic features.
The lens has a working distance of 275mm, providing ample space for equipment installation, lighting arrangement, and object handling. Even at long working distances, the ZX-SFM02-275 maintains clear and stable imaging performance, contributing to improved system reliability.
Furthermore, the 16.6mm effective depth of field significantly enhances the lens's tolerance to height variations. Even if the object under inspection has some undulation or positional deviation, it can still maintain good image clarity, reducing the need for frequent focusing and improving inspection efficiency.
The ZX-SFM02-275 is suitable for machine vision applications such as large-size product appearance inspection, automated assembly status verification, logistics and packaging inspection, and overall workpiece positioning and guidance. It is a fixed-magnification lens solution that combines long-distance imaging with stability.
