ZX-SFM016-338
Lomosen
12MP
2/3″
F6
＜0.04
0.16X
C-mount
338mm±3%
| Quantity: | |
|---|---|
Product Introduction

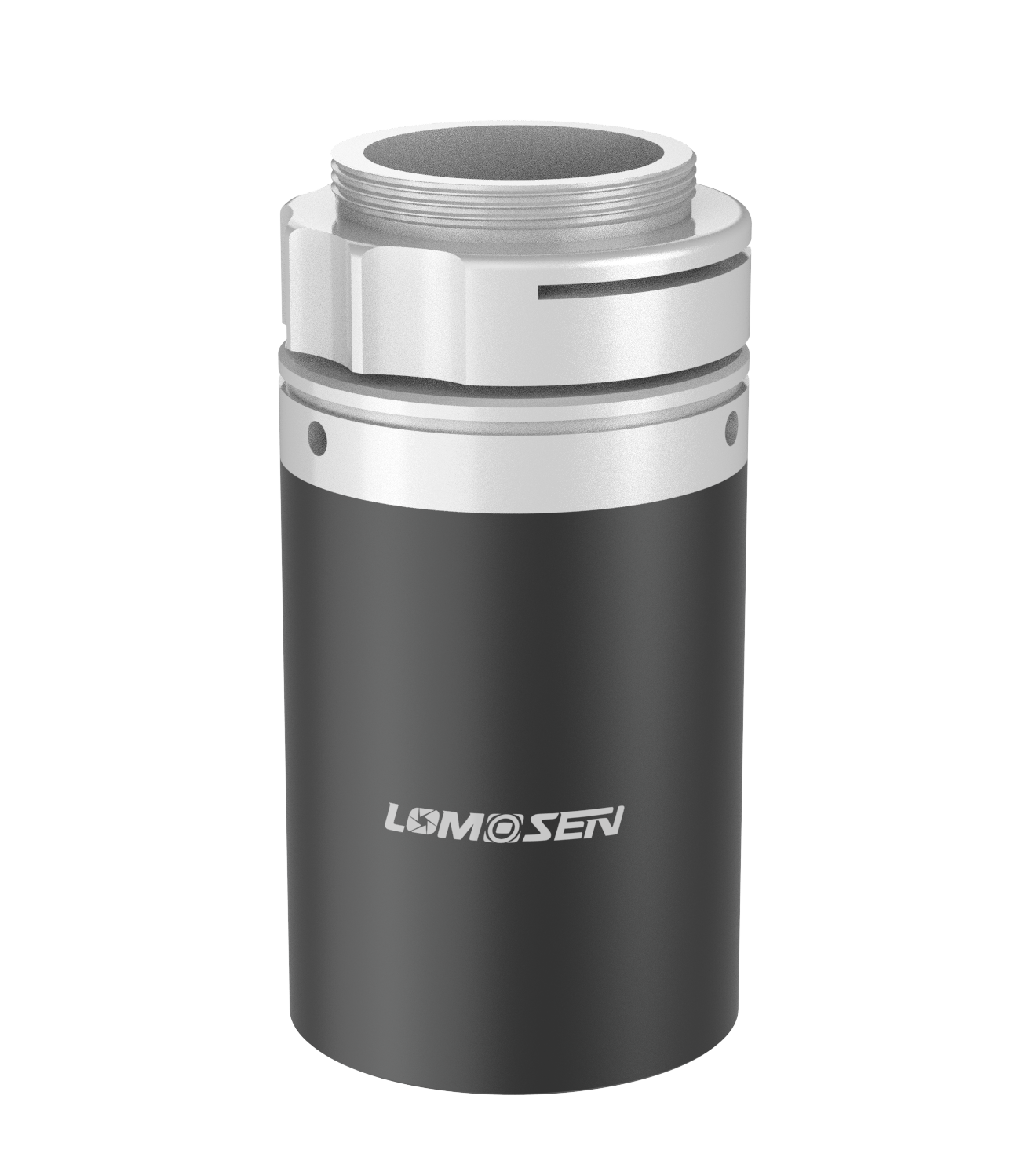

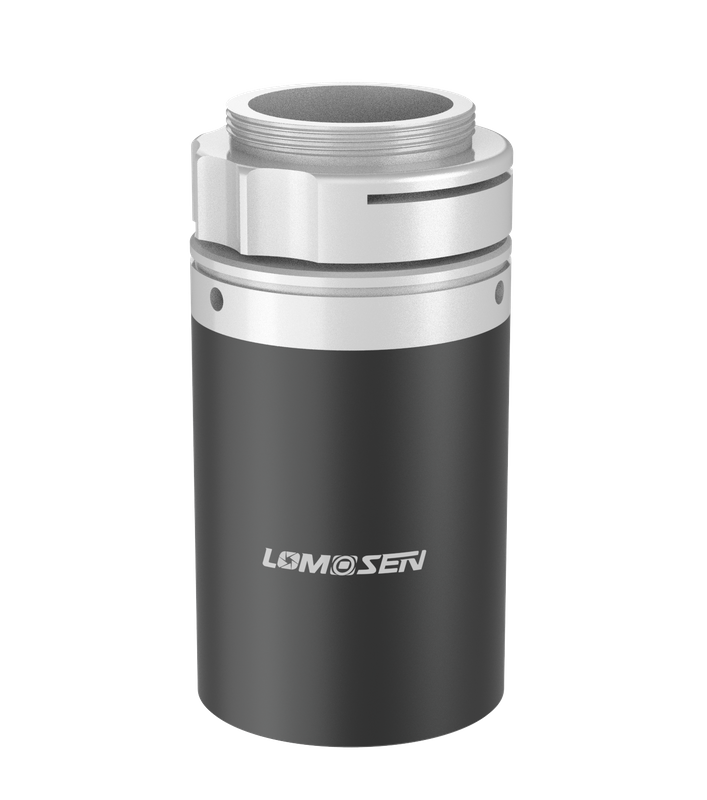

The ZX-SFM016-338 is an ultra-wide field-of-view fixed-magnification industrial lens with a magnification of 0.16X, suitable for machine vision inspection applications requiring high coverage. The lens features a long working distance of 338 mm, providing ample space for equipment layout, light source installation, and on-site debugging, making it particularly suitable for large targets or complex inspection environments.
This lens boasts an ultra-wide depth of field of 25.8 mm, maintaining excellent image sharpness and consistency even when the measured object has significant height differences or positional changes, effectively reducing the frequency of focusing.
With its stable magnification and reliable optical performance, the ZX-SFM016-338 is widely used in machine vision scenarios such as large-size appearance inspection, dimensional measurement, packaging inspection, and automated production lines, providing a solid imaging guarantee for high-efficiency and high-stability vision inspection systems.
