ZX-SFM016-239
Lomosen
12MP
2/3″
F6
＜0.04
0.16X
C-mount
239mm±3%
| Quantity: | |
|---|---|
Product Introduction

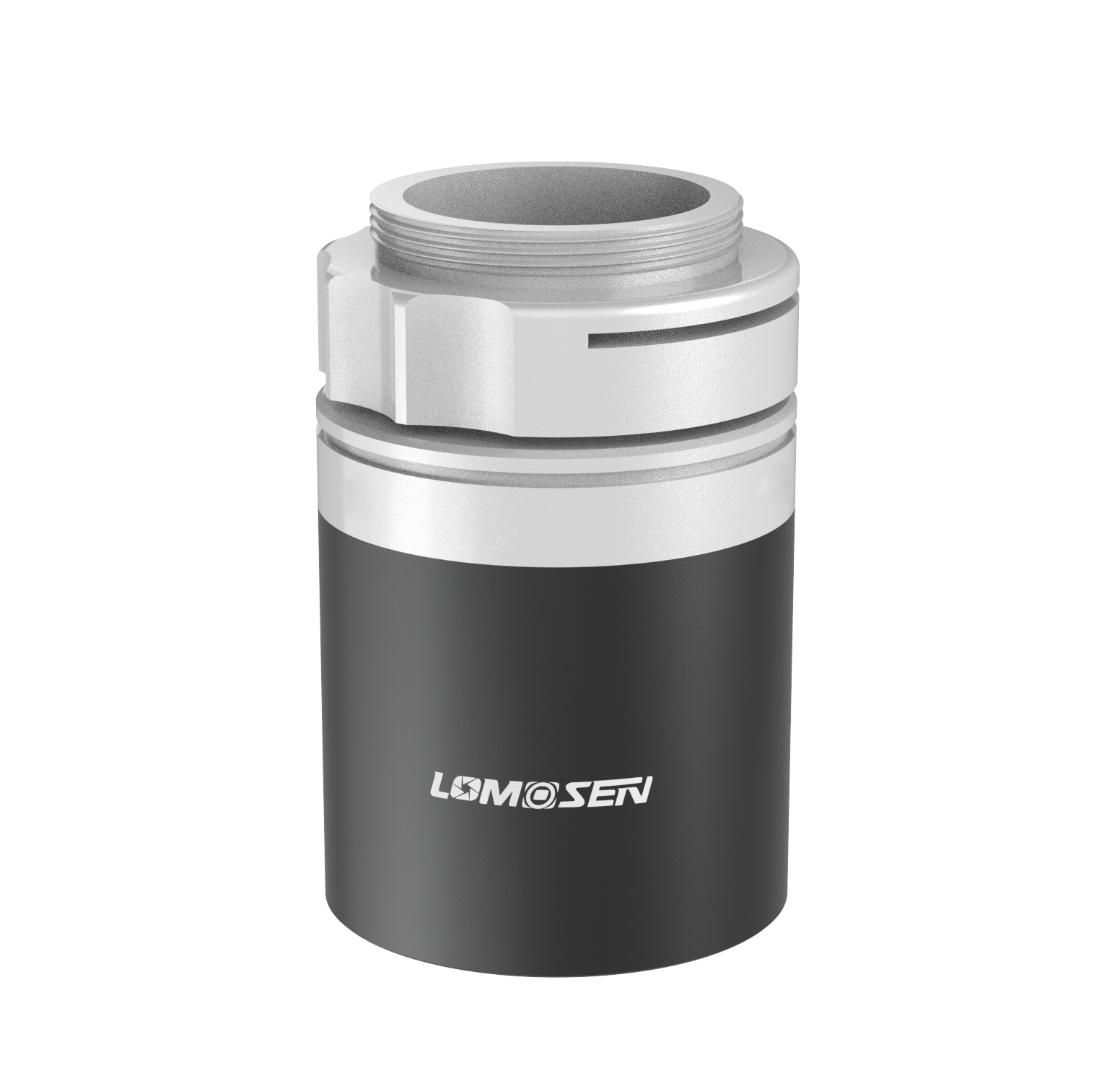

The ZX-SFM016-239 is a wide-field, fixed-magnification industrial lens with a magnification of 0.16X, suitable for machine vision inspection applications requiring a large field of view. With a working distance of 239 mm, this lens provides ample space for equipment installation and lighting arrangement, enhancing system integration flexibility.
Furthermore, the lens boasts a large depth of field of 25.0 mm, maintaining stable and clear imaging even with significant height variations in the object under inspection, thus reducing the need for frequent focusing adjustments. Thanks to its stable fixed-magnification imaging characteristics, the ZX-SFM016-239 is widely used in machine vision applications such as surface inspection, dimensional measurement, and automated production lines.
