ZX-SFM013-410
Lomosen
12MP
2/3″
F6
＜0.04
0.13X
C-mount
410mm±3%
| Quantity: | |
|---|---|
Product Introduction

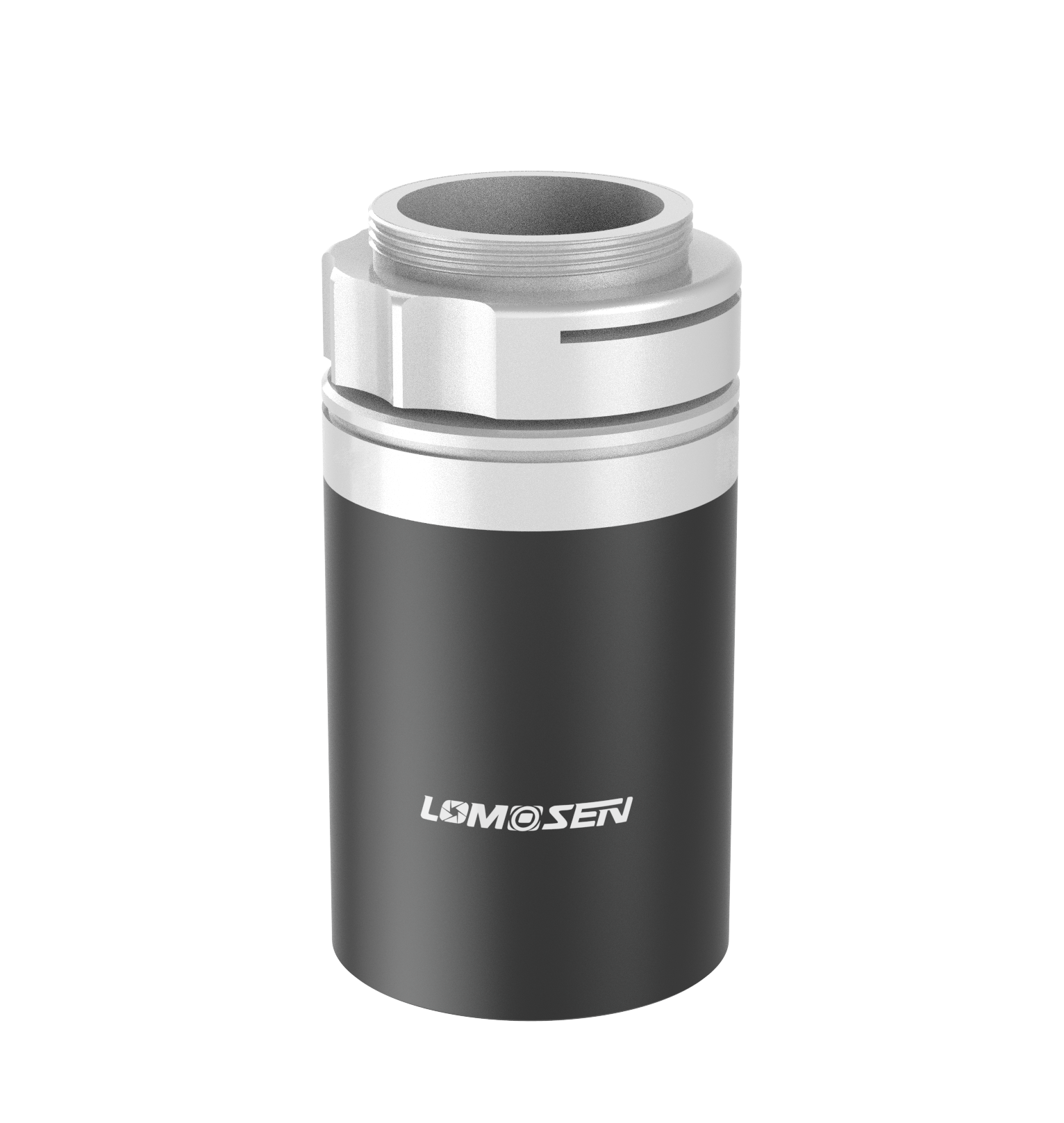

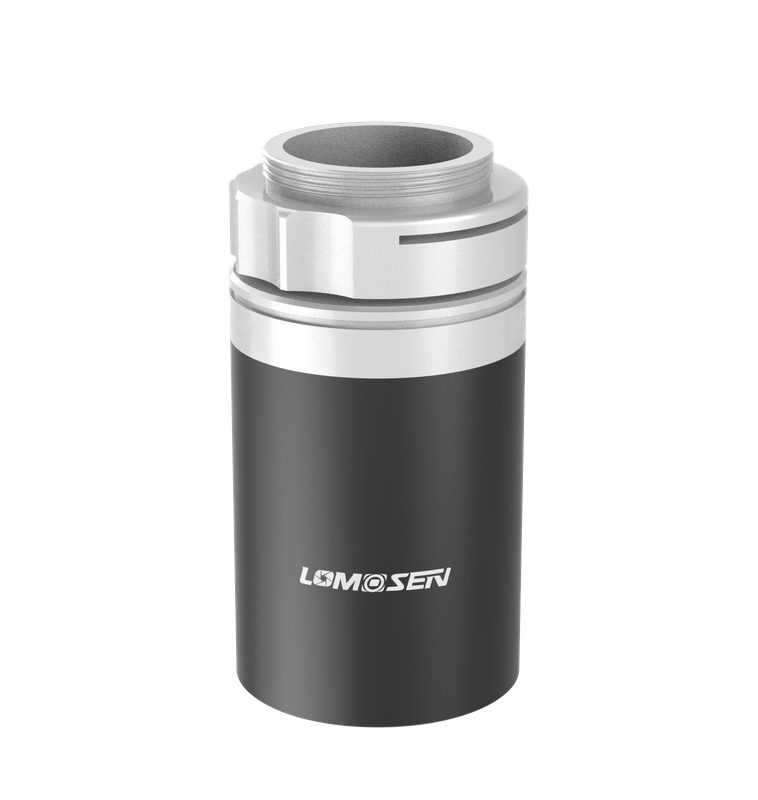

The ZX-SFM013-410 is a fixed-magnification industrial lens with an ultra-large depth of field design. With a magnification of 0.13X, it is suitable for machine vision inspection scenarios requiring a large field of view and high adaptability. This lens achieves stable imaging at a working distance of 410 mm, balancing system compactness and installation flexibility, making it easy to integrate into various automated equipment.
The lens boasts an ultra-large depth of field of up to 38.9 mm, maintaining excellent image clarity even when the object under inspection has significant height differences or surface irregularities, effectively reducing the need for refocusing and improving inspection efficiency.
Thanks to its stable fixed-magnification imaging characteristics and excellent depth of field performance, the ZX-SFM013-410 is particularly suitable for machine vision applications such as appearance inspection, overall dimension inspection, packaging inspection, and irregular workpiece inspection, providing reliable imaging support for complex inspection environments.
