ZX-SFM013-290
Lomosen
12MP
2/3″
F6
＜0.03
0.13X
C-mount
290mm±3%
| Quantity: | |
|---|---|
Product Introduction

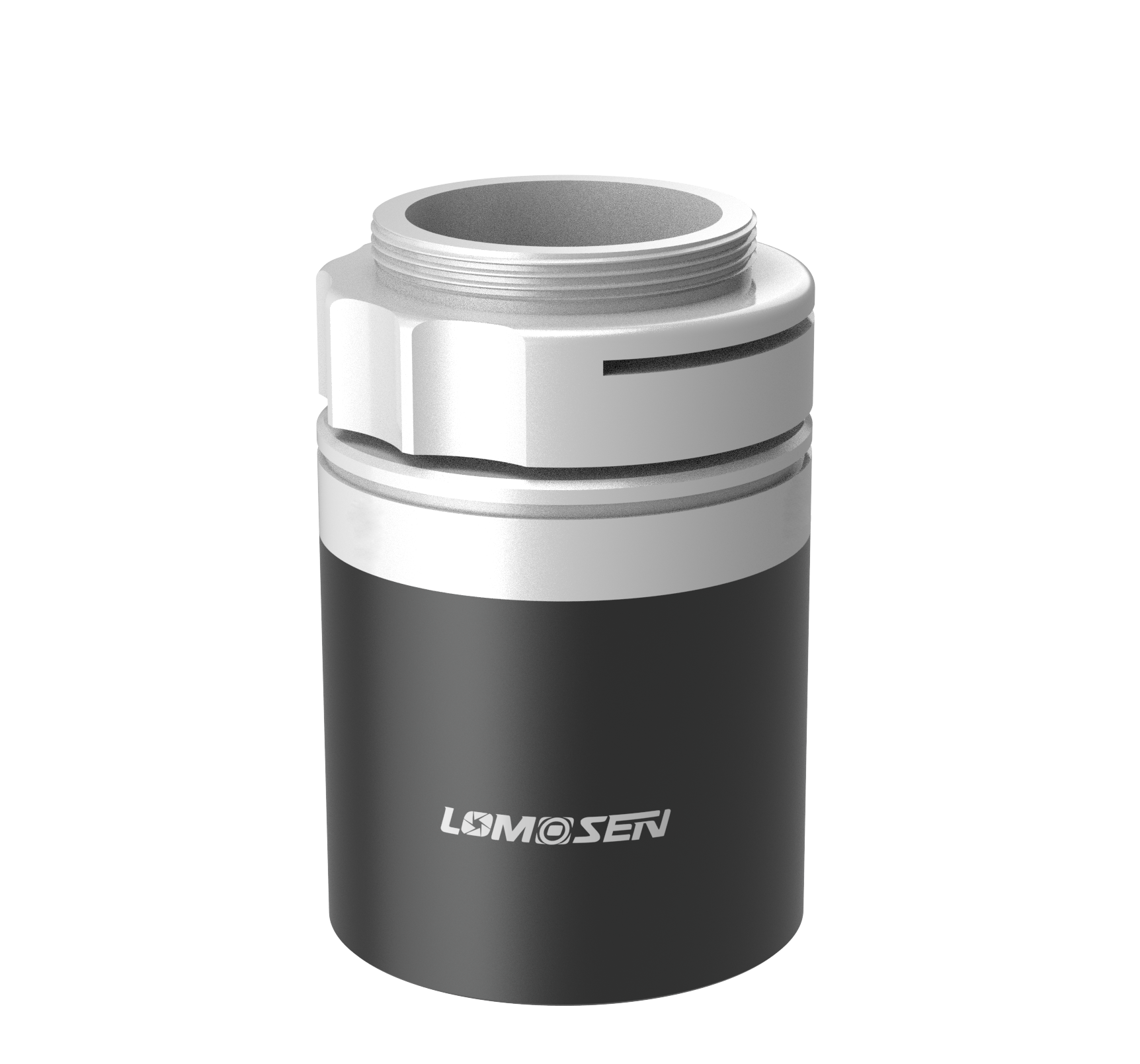

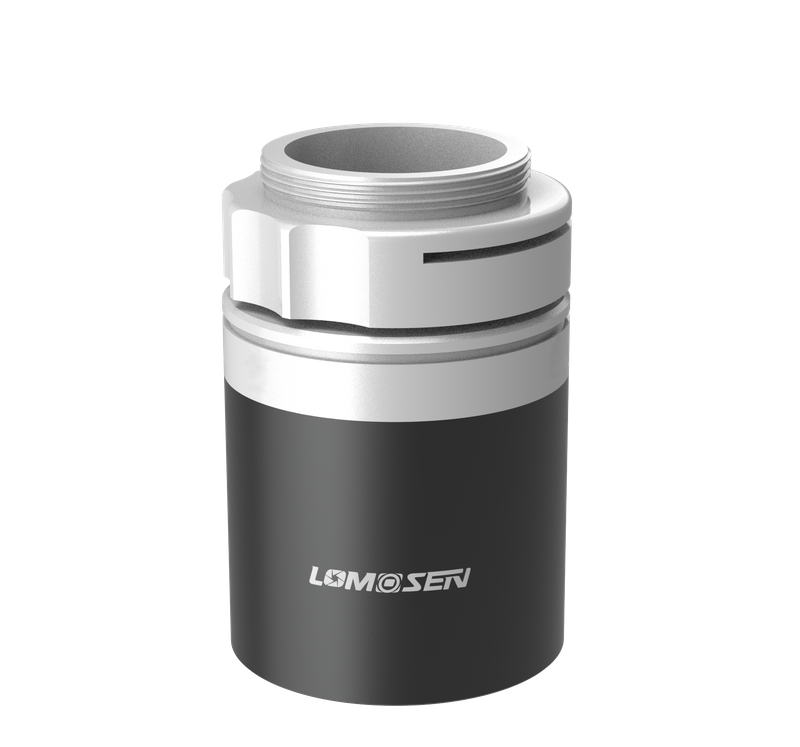

The ZX-SFM013-290 fixed magnification lens is a high-performance industrial fixed magnification lens designed for large field of view and long working distance applications. This lens features a 0.13X fixed magnification design, providing stable and clear imaging at a working distance of 290mm, making it particularly suitable for visual inspection scenarios where a safe distance from the object is required or space is limited.
Thanks to its ultra-large depth of field of 37.9mm, the ZX-SFM013-290 effectively handles surface variations and height differences of the object under inspection. Even if the target has some thickness variation, it maintains overall image clarity, effectively reducing efficiency losses caused by frequent focusing adjustments.
This lens is ideal for applications such as large workpiece inspection, electronic and 3C product appearance inspection, packaging and logistics identification, and agricultural and plant imaging analysis. It performs exceptionally well in vision systems requiring large depth of field and long working distances, making it an ideal choice for building highly reliable machine vision solutions.
Product Introduction
The ZX-SFM013-290 fixed magnification lens is a high-performance industrial fixed magnification lens designed for large field of view and long working distance applications. This lens features a 0.13X fixed magnification design, providing stable and clear imaging at a working distance of 290mm, making it particularly suitable for visual inspection scenarios where a safe distance from the object is required or space is limited.
Thanks to its ultra-large depth of field of 37.9mm, the ZX-SFM013-290 effectively handles surface variations and height differences of the object under inspection. Even if the target has some thickness variation, it maintains overall image clarity, effectively reducing efficiency losses caused by frequent focusing adjustments.
This lens is ideal for applications such as large workpiece inspection, electronic and 3C product appearance inspection, packaging and logistics identification, and agricultural and plant imaging analysis. It performs exceptionally well in vision systems requiring large depth of field and long working distances, making it an ideal choice for building highly reliable machine vision solutions.
