ZX-SFM013-213
Lomosen
12MP
2/3″
F6
＜0.04
0.13X
C-mount
213mm±3%
| Quantity: | |
|---|---|
Product Introduction

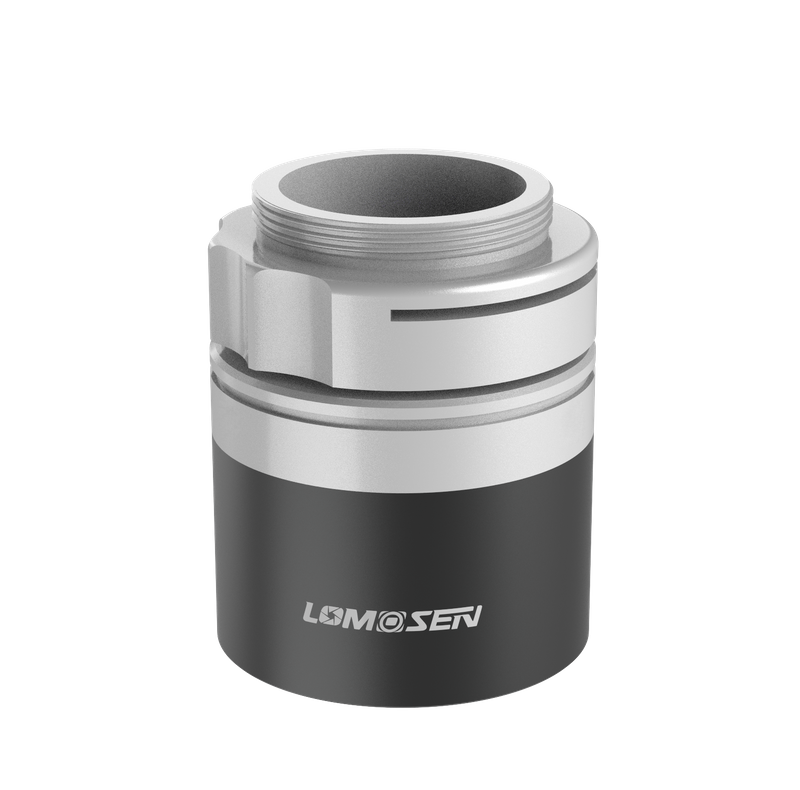

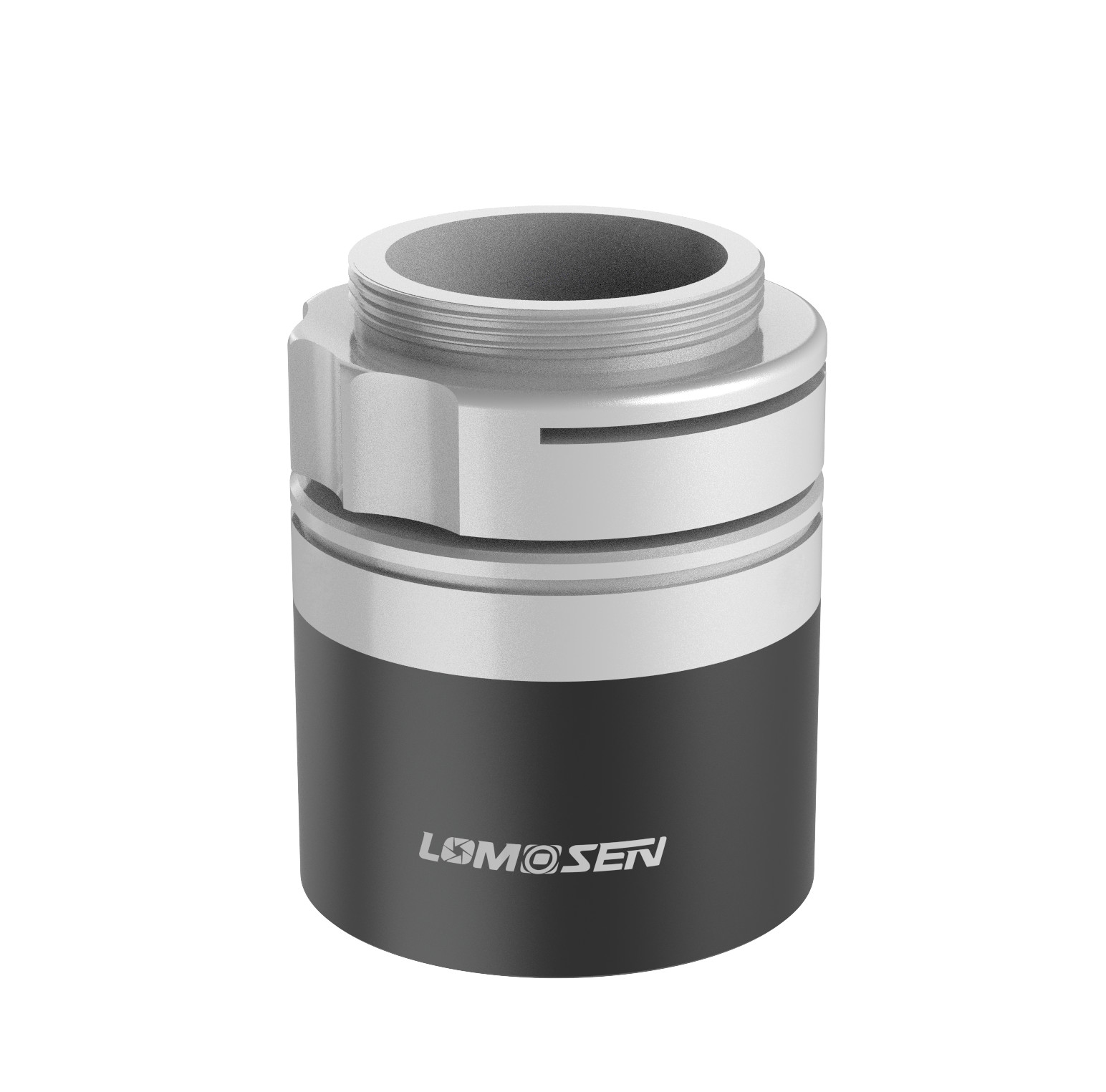

The ZX-SFM013-213 fixed-magnification lens is a high-stability optical product developed for medium-to-long distance industrial vision inspection applications. This lens features a fixed magnification of 0.13X, providing clear and balanced imaging at a working distance of 213mm, offering greater flexibility in installation layout and space planning for vision systems.
The lens boasts a large depth of field of 37.6mm, allowing it to cover different height areas of the object under inspection with a single focus, effectively handling inspection objects with height differences or surface undulations. Even in complex structures or multi-layered target inspection scenarios, it maintains overall image clarity, improving inspection efficiency and imaging stability.
Thanks to its optimized optical structure design, the ZX-SFM013-213 performs exceptionally well in terms of image consistency and detail rendering. It is suitable for a variety of applications, including electronics and 3C product inspection, precision component appearance inspection, automated production line online inspection, and agricultural and plant imaging analysis. It is particularly ideal for machine vision systems requiring a large field of view and depth of field, making it an excellent choice for building reliable industrial vision solutions.
Product Introduction
The ZX-SFM013-213 fixed-magnification lens is a high-stability optical product developed for medium-to-long distance industrial vision inspection applications. This lens features a fixed magnification of 0.13X, providing clear and balanced imaging at a working distance of 213mm, offering greater flexibility in installation layout and space planning for vision systems.
The lens boasts a large depth of field of 37.6mm, allowing it to cover different height areas of the object under inspection with a single focus, effectively handling inspection objects with height differences or surface undulations. Even in complex structures or multi-layered target inspection scenarios, it maintains overall image clarity, improving inspection efficiency and imaging stability.
Thanks to its optimized optical structure design, the ZX-SFM013-213 performs exceptionally well in terms of image consistency and detail rendering. It is suitable for a variety of applications, including electronics and 3C product inspection, precision component appearance inspection, automated production line online inspection, and agricultural and plant imaging analysis. It is particularly ideal for machine vision systems requiring a large field of view and depth of field, making it an excellent choice for building reliable industrial vision solutions.
