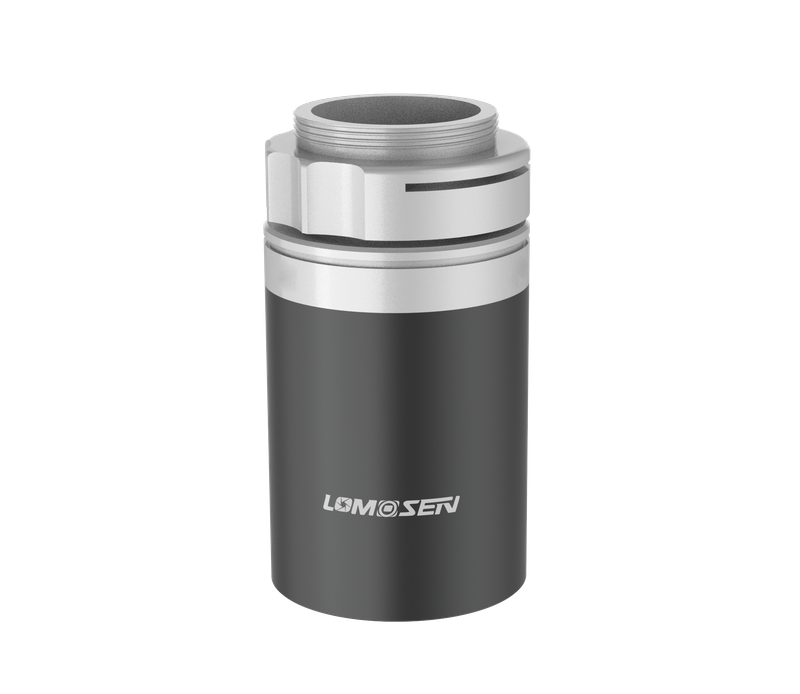

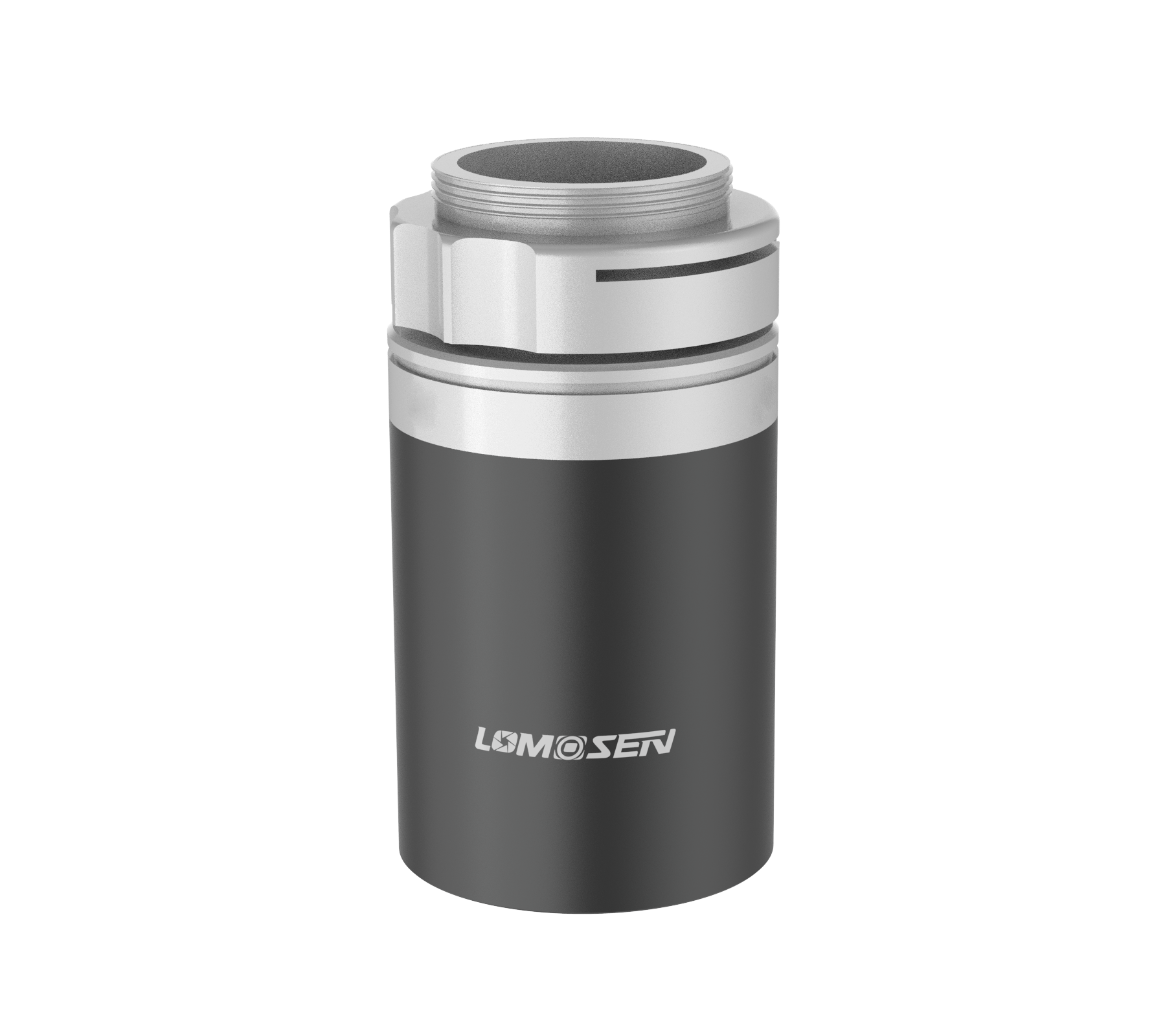

ZX-SFM01-524
Lomosen
12MP
2/3″
F6
＜0.06
0.1X
C-mount
524mm±3%
| Quantity: | |
|---|---|
Product Introduction
The ZX-SFM01-524 fixed-magnification industrial lens is a low-magnification fixed-magnification lens specifically designed for ultra-long-distance, wide-field-of-view visual inspection scenarios. It is suitable for industrial applications with high requirements for system stability and environmental adaptability. This lens features a 0.1X fixed magnification design, enabling it to cover a larger inspection area even at long distances, clearly presenting the overall outline and structural features of the object under test.
The product boasts an ultra-long working distance of 524mm, providing exceptional installation flexibility for complex production lines, automated equipment, and the inspection of large workpieces. It effectively avoids interference from mechanical structures, moving parts, and the environment, significantly improving system layout flexibility.
Simultaneously, the ultra-large depth of field of 65.8mm gives the ZX-SFM01-524 excellent depth-of-field tolerance, maintaining clear imaging even when the object under test has significant height differences or positional fluctuations. This greatly reduces focusing requirements and improves inspection continuity and stability.
Product Introduction
The ZX-SFM01-524 fixed-magnification industrial lens is a low-magnification fixed-magnification lens specifically designed for ultra-long-distance, wide-field-of-view visual inspection scenarios. It is suitable for industrial applications with high requirements for system stability and environmental adaptability. This lens features a 0.1X fixed magnification design, enabling it to cover a larger inspection area even at long distances, clearly presenting the overall outline and structural features of the object under test.
The product boasts an ultra-long working distance of 524mm, providing exceptional installation flexibility for complex production lines, automated equipment, and the inspection of large workpieces. It effectively avoids interference from mechanical structures, moving parts, and the environment, significantly improving system layout flexibility.
Simultaneously, the ultra-large depth of field of 65.8mm gives the ZX-SFM01-524 excellent depth-of-field tolerance, maintaining clear imaging even when the object under test has significant height differences or positional fluctuations. This greatly reduces focusing requirements and improves inspection continuity and stability.
