ZX-SFM01-474
Lomosen
12MP
2/3″
F6
＜0.01
0.1X
C-mount
474mm±3%
| Quantity: | |
|---|---|
Product Introduction

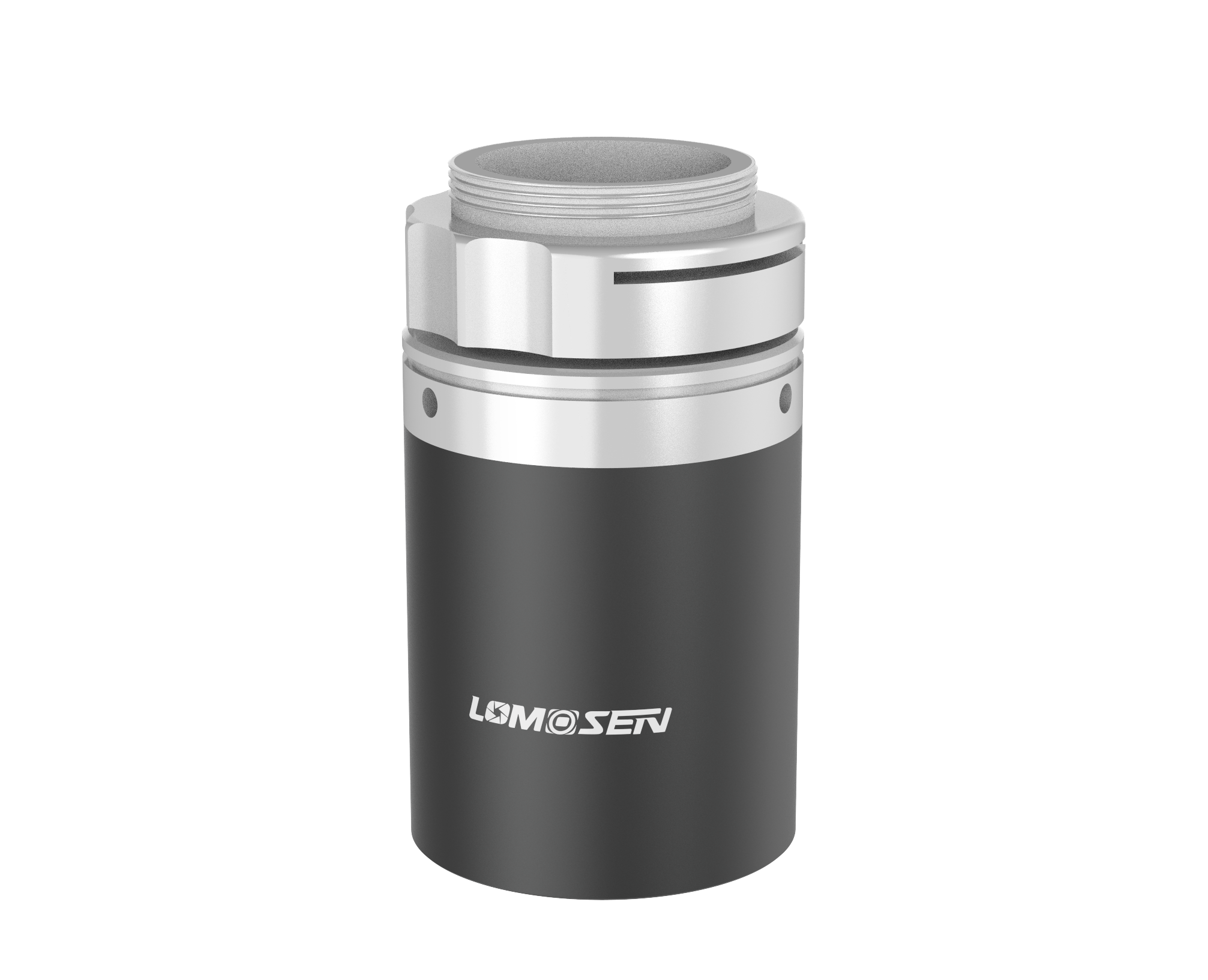

The ZX-SFM01-474 fixed-magnification industrial lens is a low-magnification fixed-magnification lens designed for long-distance, wide-field-of-view machine vision inspection scenarios. It is suitable for industrial applications with high requirements for imaging stability and system adaptability. This lens uses a fixed magnification of 0.1X, enabling it to cover a wide inspection area at a considerable shooting distance, clearly presenting the overall outline and key structural features of the object being inspected.
The lens has a working distance of 474mm, providing ample installation space for automated production lines, complex equipment structures, and the inspection of large workpieces. It effectively avoids interference from mechanical parts and motion, improving the flexibility and reliability of system layout.
Meanwhile, the ultra-large depth of field of 63.5mm significantly enhances the lens's tolerance to changes in height and positional deviations. Even with significant undulations in the object being inspected, it maintains a stable and clear imaging effect, reducing focusing frequency and improving inspection efficiency and system stability.
The ZX-SFM01-474 is widely applicable to vision inspection applications such as large-size product appearance inspection, assembly verification, logistics and packaging inspection, and production line positioning and guidance. It is a fixed-magnification lens solution that balances long-distance imaging capabilities with high reliability.
Product Introduction
The ZX-SFM01-474 fixed-magnification industrial lens is a low-magnification fixed-magnification lens designed for long-distance, wide-field-of-view machine vision inspection scenarios. It is suitable for industrial applications with high requirements for imaging stability and system adaptability. This lens uses a fixed magnification of 0.1X, enabling it to cover a wide inspection area at a considerable shooting distance, clearly presenting the overall outline and key structural features of the object being inspected.
The lens has a working distance of 474mm, providing ample installation space for automated production lines, complex equipment structures, and the inspection of large workpieces. It effectively avoids interference from mechanical parts and motion, improving the flexibility and reliability of system layout.
Meanwhile, the ultra-large depth of field of 63.5mm significantly enhances the lens's tolerance to changes in height and positional deviations. Even with significant undulations in the object being inspected, it maintains a stable and clear imaging effect, reducing focusing frequency and improving inspection efficiency and system stability.
The ZX-SFM01-474 is widely applicable to vision inspection applications such as large-size product appearance inspection, assembly verification, logistics and packaging inspection, and production line positioning and guidance. It is a fixed-magnification lens solution that balances long-distance imaging capabilities with high reliability.
