ZX-SFM01-274
Lomosen
12MP
2/3″
F6
＜0.06
0.1X
C-mount
274mm±3%
| Quantity: | |
|---|---|
Product Introduction

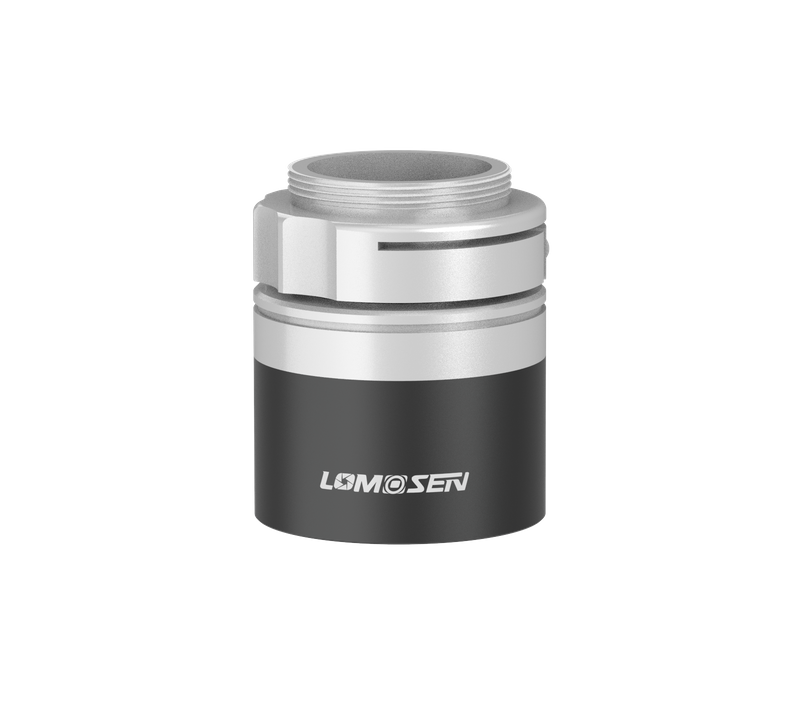

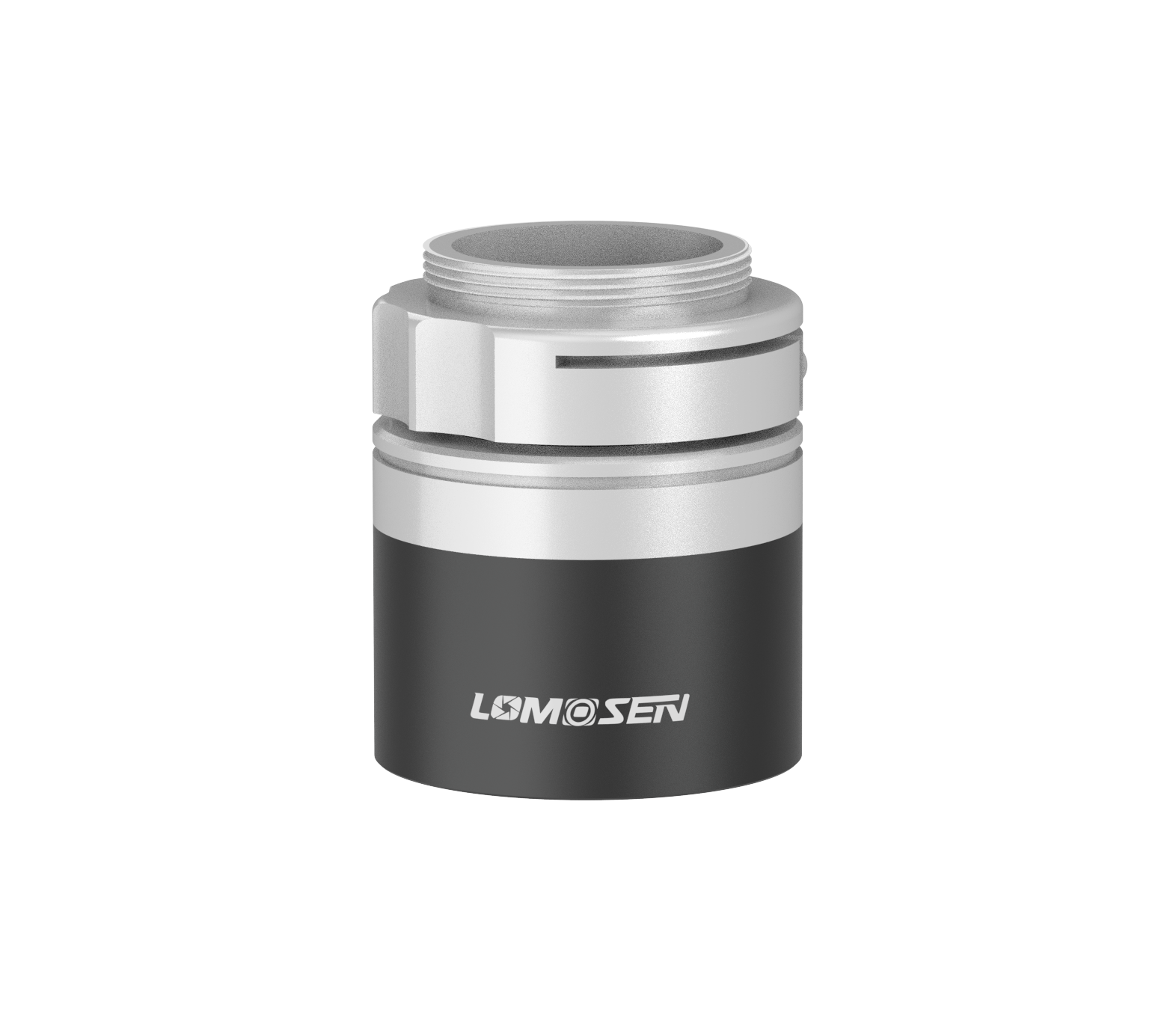

The ZX-SFM01-274 fixed-magnification industrial lens is a low-magnification fixed-magnification lens designed for medium-to-long-range, wide-area visual inspection scenarios. It is suitable for industrial vision systems with high requirements for imaging stability and environmental adaptability. This lens uses a fixed magnification of 0.1X, enabling wide field-of-view coverage at considerable shooting distances, providing clear imaging of the overall shape and key areas of the target.
The product boasts a 274mm working distance, exhibiting excellent flexibility in equipment installation and production line layout. It effectively avoids mechanical interference, providing ample space for light source configuration and the movement of the measured object, thus improving the integration efficiency of the entire vision system.
Simultaneously, the large depth of field of 62.8mm significantly enhances the lens's adaptability to changes in the height of the measured object. Even when the measured object has significant undulations or positional deviations, it maintains stable and clear imaging, reducing the need for manual focusing and system maintenance.
The ZX-SFM01-274 is widely applicable to machine vision applications such as large-size workpiece appearance inspection, automated assembly status confirmation, logistics and packaging inspection, production line positioning and guidance, etc. It is a fixed-magnification lens solution that combines long-distance imaging capabilities with high reliability.
Product Introduction
The ZX-SFM01-274 fixed-magnification industrial lens is a low-magnification fixed-magnification lens designed for medium-to-long-range, wide-area visual inspection scenarios. It is suitable for industrial vision systems with high requirements for imaging stability and environmental adaptability. This lens uses a fixed magnification of 0.1X, enabling wide field-of-view coverage at considerable shooting distances, providing clear imaging of the overall shape and key areas of the target.
The product boasts a 274mm working distance, exhibiting excellent flexibility in equipment installation and production line layout. It effectively avoids mechanical interference, providing ample space for light source configuration and the movement of the measured object, thus improving the integration efficiency of the entire vision system.
Simultaneously, the large depth of field of 62.8mm significantly enhances the lens's adaptability to changes in the height of the measured object. Even when the measured object has significant undulations or positional deviations, it maintains stable and clear imaging, reducing the need for manual focusing and system maintenance.
The ZX-SFM01-274 is widely applicable to machine vision applications such as large-size workpiece appearance inspection, automated assembly status confirmation, logistics and packaging inspection, production line positioning and guidance, etc. It is a fixed-magnification lens solution that combines long-distance imaging capabilities with high reliability.
