ZX-SFC-PLR25.5
Lomosen
400-800nm

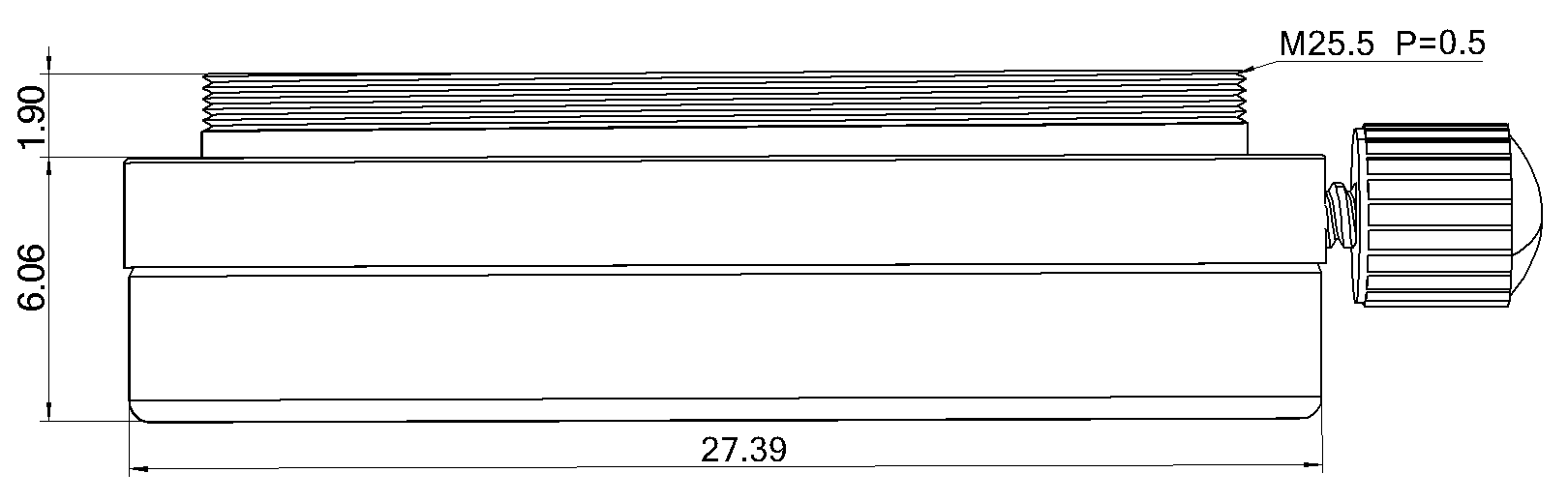

M25.5 × 0.5 Thread
| Availability: | |
|---|---|
| Quantity: | |
Product Features
The ZX-SFC-PLR25.5 is an industrial polarizer featuring an M25.5 × 0.5 thread, specifically designed for machine vision systems and optical imaging applications. This polarizer effectively suppresses reflected light and stray light, thereby reducing optical noise and enhancing both image contrast and clarity.
Its threaded design facilitates direct mounting onto the front of compatible industrial lenses, ensuring a secure and reliable installation. When used in conjunction with industrial cameras and lighting systems, it enhances the visibility of target features and improves the accuracy and stability of visual inspections, making it suitable for automated inspection, high-precision imaging, and a wide range of machine vision applications.

Product Features
The ZX-SFC-PLR25.5 is an industrial polarizer featuring an M25.5 × 0.5 thread, specifically designed for machine vision systems and optical imaging applications. This polarizer effectively suppresses reflected light and stray light, thereby reducing optical noise and enhancing both image contrast and clarity.
Its threaded design facilitates direct mounting onto the front of compatible industrial lenses, ensuring a secure and reliable installation. When used in conjunction with industrial cameras and lighting systems, it enhances the visibility of target features and improves the accuracy and stability of visual inspections, making it suitable for automated inspection, high-precision imaging, and a wide range of machine vision applications.

| Model | Model | ZX-SFC-PLR25.5 |
| Name | Polarizing Filter | |
| Physical Specifications | Transmitting Band | 400-800nm |
| Material | Optical Glass + Polarizing Film | |
| Coating Dimensions | 43.2*10mm(±0.1mm) | |
| Thickness | 1.3mm |
| Model | Model | ZX-SFC-PLR25.5 |
| Name | Polarizing Filter | |
| Physical Specifications | Transmitting Band | 400-800nm |
| Material | Optical Glass + Polarizing Film | |
| Coating Dimensions | 43.2*10mm(±0.1mm) | |
| Thickness | 1.3mm |
