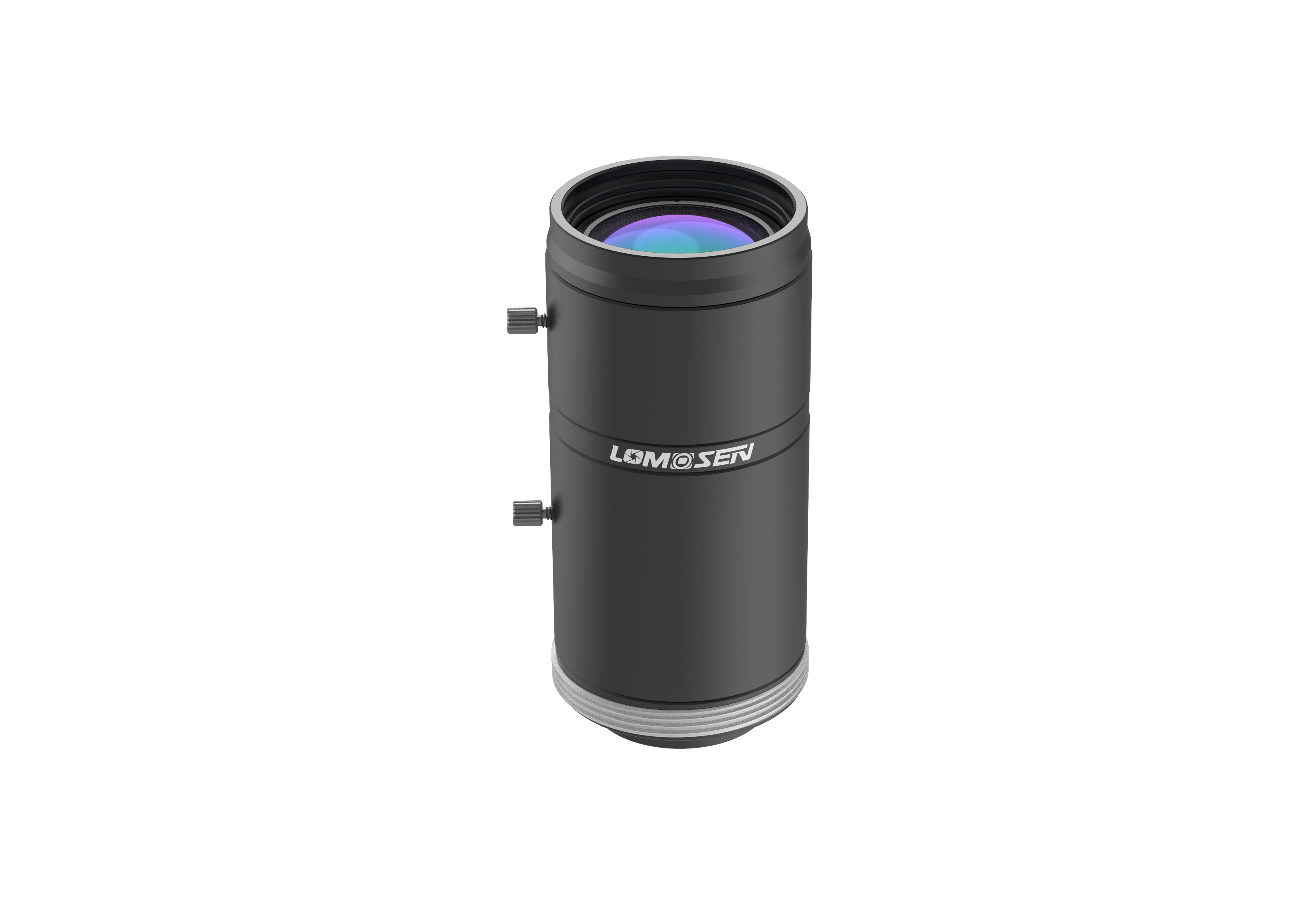

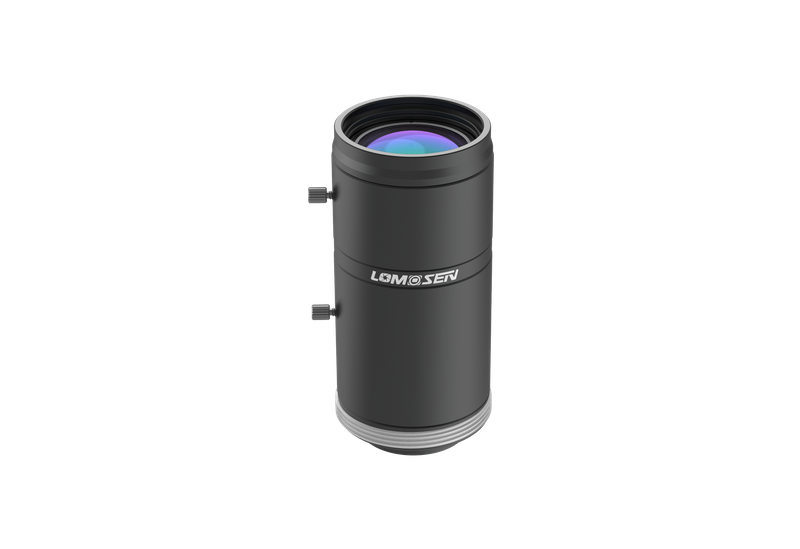

ZX-SF7528C
Lomosen
1/1.8 inch
2.8-22
0.5m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
High-performance industrial lenses can be combined with cameras to achieve accurate defect detection to meet customer needs. The use of lenses with high-resolution cameras can make the detection system more complete and maximize its advantages in automated production.
High resolution and wide field of view: 5-megapixel industrial cameras and lenses adapted to target surfaces below 1/1.8 inches are selected.
Ultra-low TV distortion control: The TV distortion of the lens is less than 0.5%, which is suitable for scenes requiring high-precision geometric dimension measurement and defect identification.
Wide focal length range: According to the specific needs of the production line, lenses with focal lengths between 3.5mm and 75mm are selected, and the field of view can be flexibly adjusted.
Compact design and space adaptability: The lens adopts an ultra-compact design, which not only saves space, but also facilitates integration with other automation equipment.

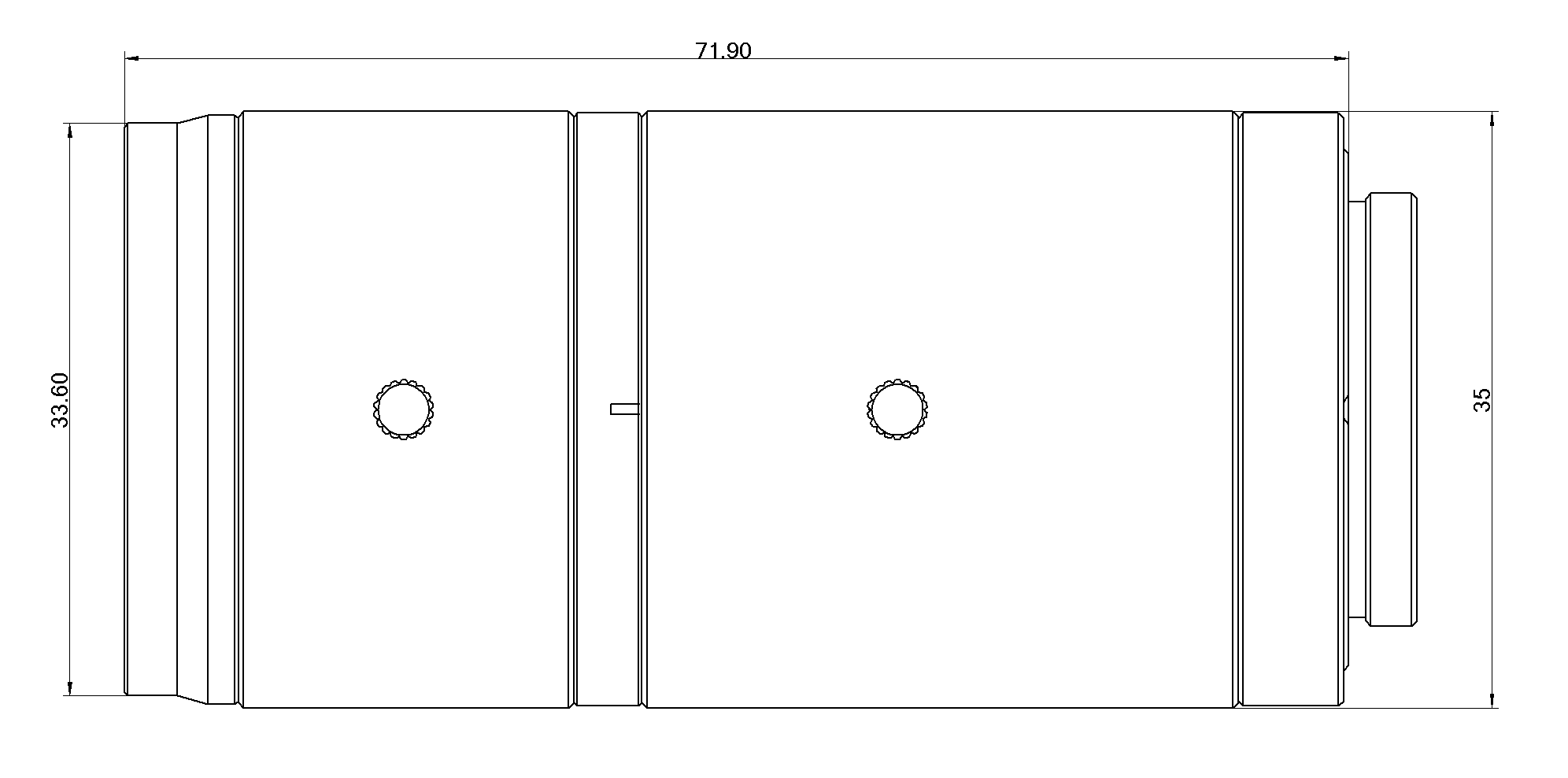

Dimensions
High-performance industrial lenses can be combined with cameras to achieve accurate defect detection to meet customer needs. The use of lenses with high-resolution cameras can make the detection system more complete and maximize its advantages in automated production.
High resolution and wide field of view: 5-megapixel industrial cameras and lenses adapted to target surfaces below 1/1.8 inches are selected.
Ultra-low TV distortion control: The TV distortion of the lens is less than 0.5%, which is suitable for scenes requiring high-precision geometric dimension measurement and defect identification.
Wide focal length range: According to the specific needs of the production line, lenses with focal lengths between 3.5mm and 75mm are selected, and the field of view can be flexibly adjusted.
Compact design and space adaptability: The lens adopts an ultra-compact design, which not only saves space, but also facilitates integration with other automation equipment.
Dimensions
Model | SF7528C type |
Focal length | 75mm |
Maximum target size | 1/1.8 inch |
Pixel level | 5MP |
Aperture range (F number) | 2.8-22 |
Aperture control | Manual |
Focus range | 0.5m-∞ |
Focus control | Manual |
Field of view (DxH) | 5.4°×4.04 |
TV distortion (%) | ±0.05 |
Filter thread | M30.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ35×71.9 |
Weight (g) | 108 |
Operating temperature (℃) | -10~50 |
