ZX-SF7528B
Lomosen
2/3 inch
1.4-16
0.6m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
High-definition imaging
Supports 5 million pixel high resolution, clearly presents tiny details, and is equipped with a low distortion design to effectively restore the real picture, suitable for high-precision visual inspection and complex industrial applications.
Widely applicable
Compatible with cameras with a maximum target area of 2/3 inches, suitable for a variety of industrial camera models, providing excellent versatility to meet the needs of various inspection, measurement and identification scenarios.
Multiple focal lengths
Multiple focal length options cover wide-angle and telephoto requirements, flexibly respond to different working distances and field of view requirements, and provide users with more scenario solutions.
Adjustable aperture
The aperture adjustment range is wide and can effectively adapt to complex lighting conditions. Whether it is strong light, weak light or backlight environment, stable imaging effects can be achieved.
High cost performance
Provide professional-grade imaging performance with high cost performance, effectively reduce the overall application cost of the visual inspection system, and help customers improve production efficiency and inspection accuracy.

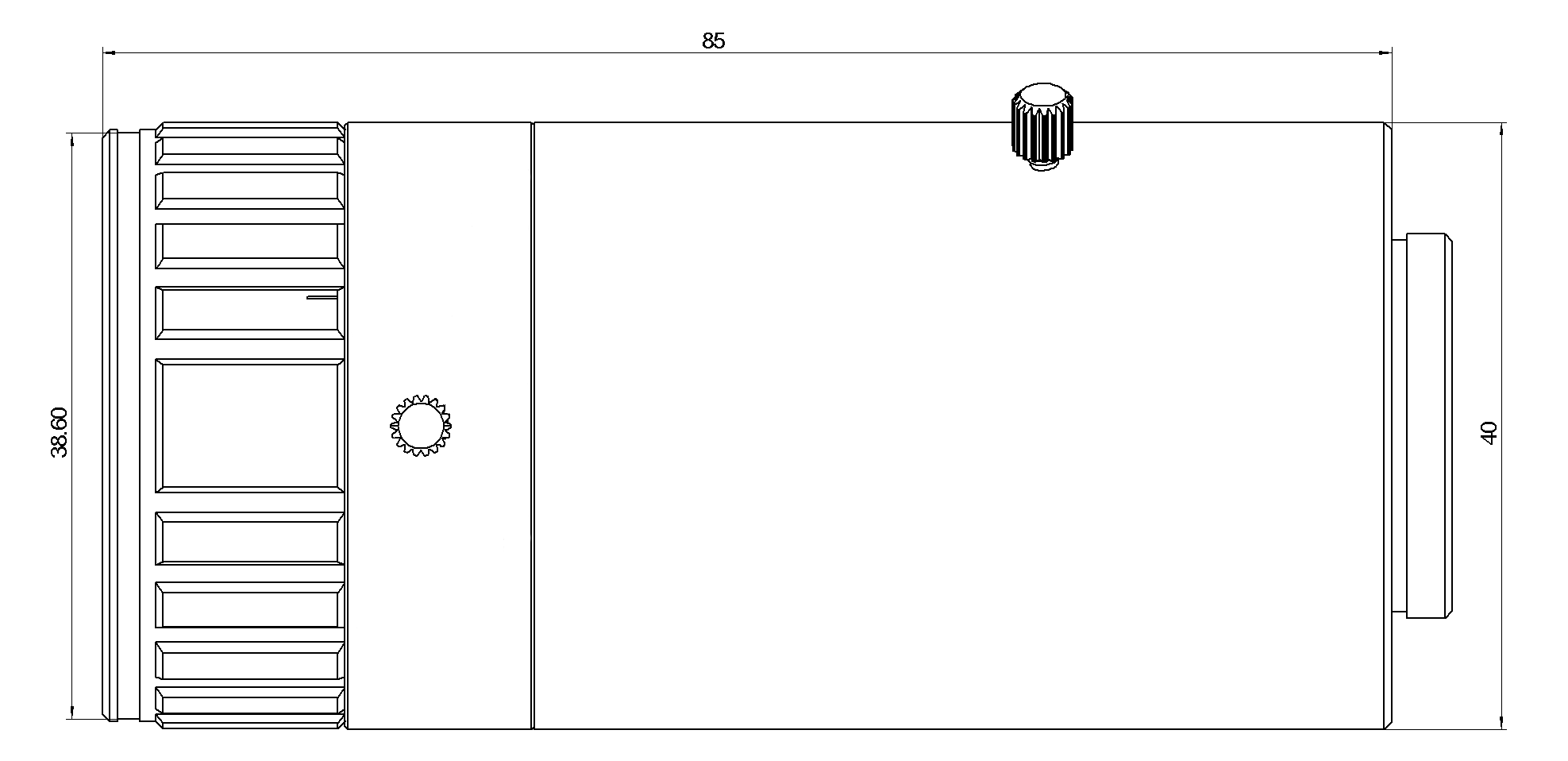

Dimensions
High-definition imaging
Supports 5 million pixel high resolution, clearly presents tiny details, and is equipped with a low distortion design to effectively restore the real picture, suitable for high-precision visual inspection and complex industrial applications.
Widely applicable
Compatible with cameras with a maximum target area of 2/3 inches, suitable for a variety of industrial camera models, providing excellent versatility to meet the needs of various inspection, measurement and identification scenarios.
Multiple focal lengths
Multiple focal length options cover wide-angle and telephoto requirements, flexibly respond to different working distances and field of view requirements, and provide users with more scenario solutions.
Adjustable aperture
The aperture adjustment range is wide and can effectively adapt to complex lighting conditions. Whether it is strong light, weak light or backlight environment, stable imaging effects can be achieved.
High cost performance
Provide professional-grade imaging performance with high cost performance, effectively reduce the overall application cost of the visual inspection system, and help customers improve production efficiency and inspection accuracy.
Dimensions
Model | SF7528B |
Focal length | 75mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.4-16 |
Aperture control | Manual |
Focus range | 0.6m-∞ |
Focus control | Manual |
Field of view (DxH) | 6.60°×5° |
TV distortion (%) | 0.8 |
Filter thread | M30.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ40.0×85 |
Weight (g) | 220g |
Operating temperature (℃) | -10~50 |
Model | SF7528B |
Focal length | 75mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.4-16 |
Aperture control | Manual |
Focus range | 0.6m-∞ |
Focus control | Manual |
Field of view (DxH) | 6.60°×5° |
TV distortion (%) | 0.8 |
Filter thread | M30.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ40.0×85 |
Weight (g) | 220g |
Operating temperature (℃) | -10~50 |
