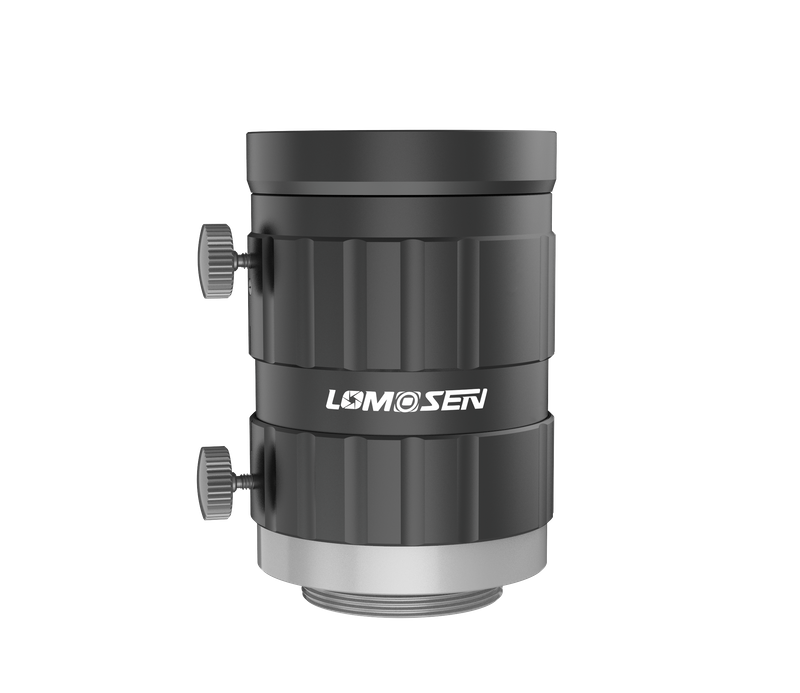

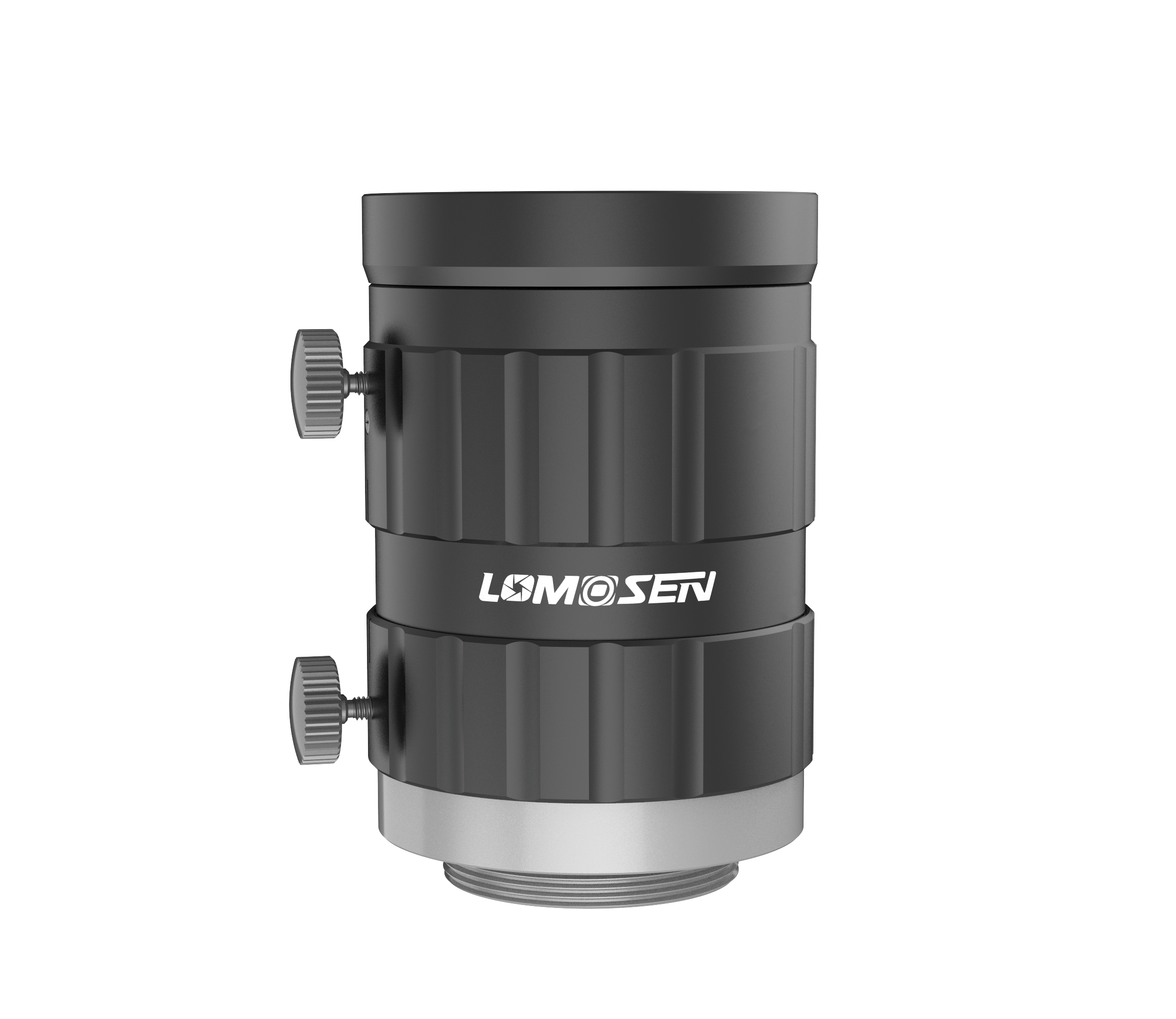

ZX-SF5028T
Lomosen
1.1‘’ inch
2.8-22
0.3m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
High Relative Illumination & Large Aperture: The lens is designed with high relative illumination and a large aperture, which greatly enhances image brightness. It ensures sharp, detailed visuals, even in low-light conditions, making it ideal for challenging lighting environments.
Wide Focus Range: With a focus range extending from 300mm to infinity, this lens offers exceptional flexibility, ensuring consistently sharp, high-quality images across varying distances.
Versatile Focal Length Options: The lens series provides a focal length range from 6mm to 50mm, offering versatile options to meet diverse application needs. Whether you need to capture wide fields of view or intricate fine details, this series delivers superior performance.
Optimal Application: Engineered specifically for cameras with up to 2000 pixels and 1.1 inch target surfaces, this lens maximizes imaging performance, ensuring the best possible results for various shooting scenarios.

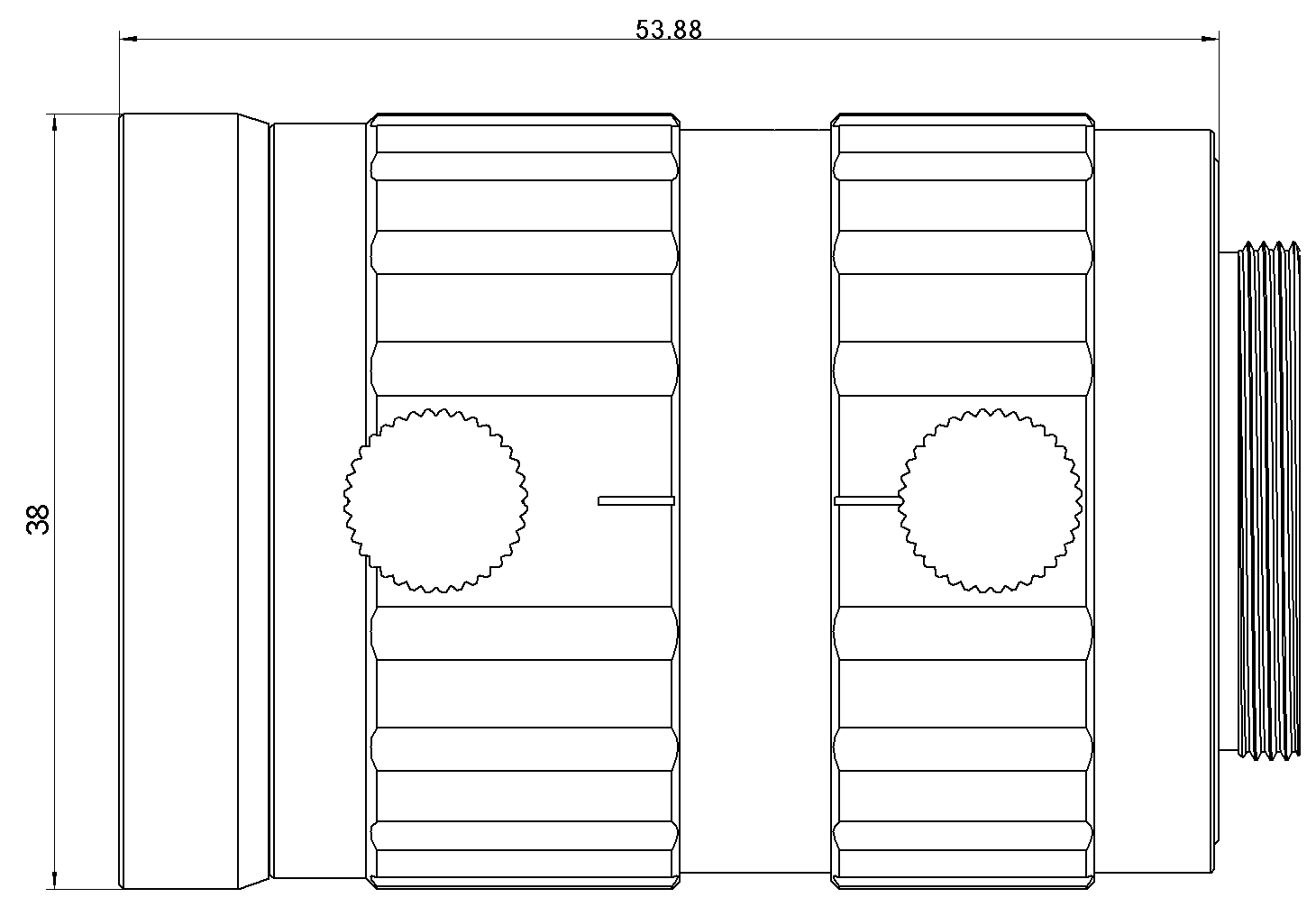

Dimensions
High Relative Illumination & Large Aperture: The lens is designed with high relative illumination and a large aperture, which greatly enhances image brightness. It ensures sharp, detailed visuals, even in low-light conditions, making it ideal for challenging lighting environments.
Wide Focus Range: With a focus range extending from 300mm to infinity, this lens offers exceptional flexibility, ensuring consistently sharp, high-quality images across varying distances.
Versatile Focal Length Options: The lens series provides a focal length range from 6mm to 50mm, offering versatile options to meet diverse application needs. Whether you need to capture wide fields of view or intricate fine details, this series delivers superior performance.
Optimal Application: Engineered specifically for cameras with up to 2000 pixels and 1.1 inch target surfaces, this lens maximizes imaging performance, ensuring the best possible results for various shooting scenarios.
Dimensions
Model | SF5028T type |
Focal length | 50 mm |
Maximum target size | 1.1” |
Pixel level | 20MP |
Aperture range (F number) | 2.8-22 |
Aperture control | Manual |
Focus range | 0.3m-∞ |
Focus control | Manual |
Field of view (DxH) | 15.9°×11.9° |
TV distortion (%) | ±0.02 |
Filter thread | M35.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ38×53.9 |
Weight (g) | 123.2 |
Operating temperature (℃) | -10~50 |
Model | SF5028T type |
Focal length | 50 mm |
Maximum target size | 1.1” |
Pixel level | 20MP |
Aperture range (F number) | 2.8-22 |
Aperture control | Manual |
Focus range | 0.3m-∞ |
Focus control | Manual |
Field of view (DxH) | 15.9°×11.9° |
TV distortion (%) | ±0.02 |
Filter thread | M35.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ38×53.9 |
Weight (g) | 123.2 |
Operating temperature (℃) | -10~50 |
