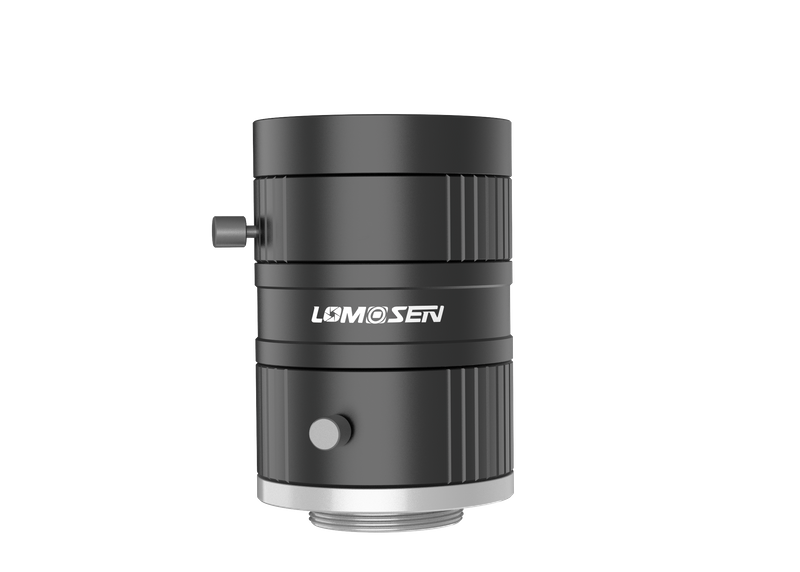

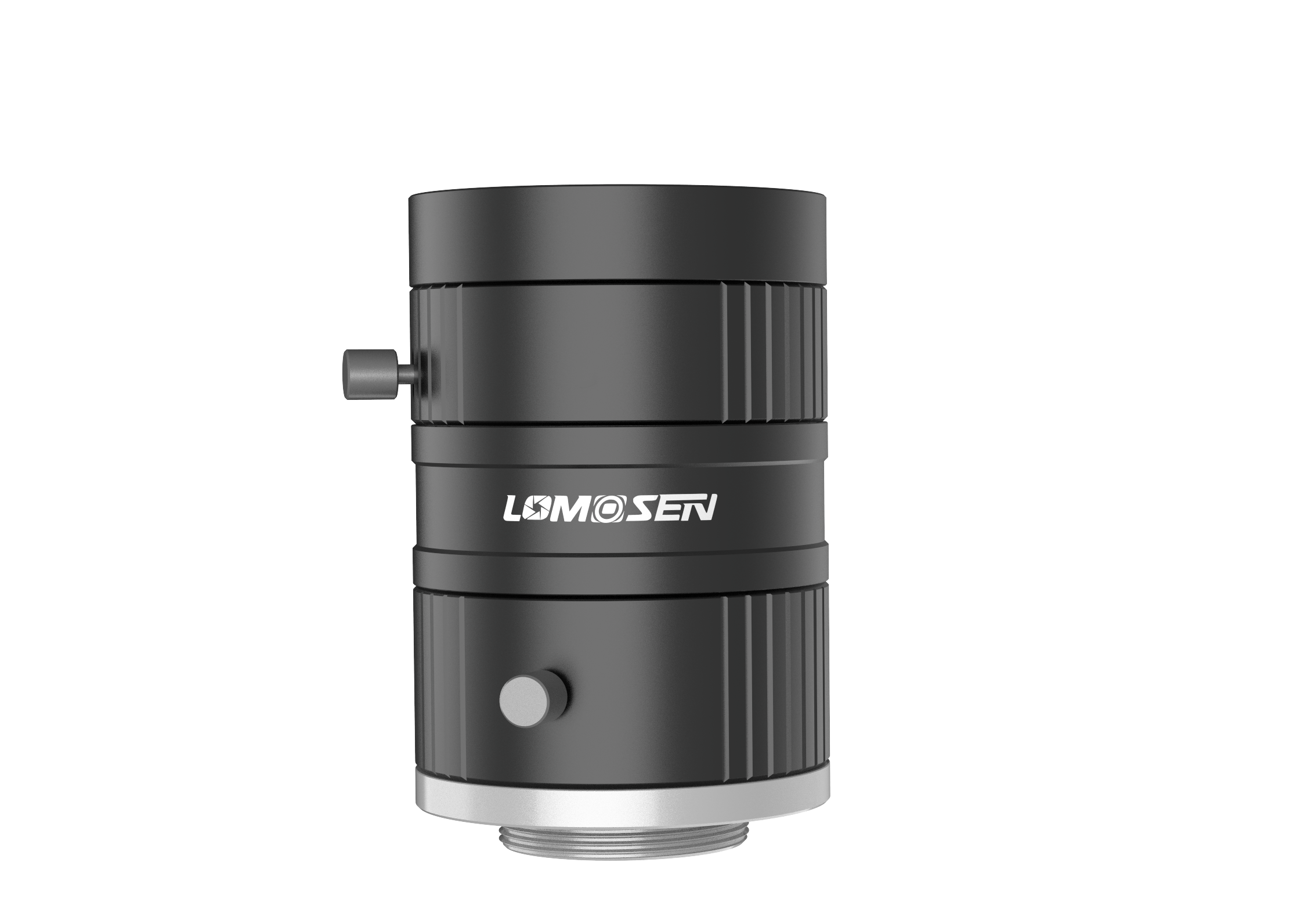

ZX-SF5024TC
Lomosen
1.1 inch
2.4-16
250mm-∞
C-mount
Availability: | |
---|---|
Quantity: | |
This high-performance lens is widely used in industrial visual inspection, automated production lines, robot vision, intelligent manufacturing and other fields. With its high relative illumination and large aperture design, it can provide excellent imaging quality in low-light environments, ensure accurate capture of details, and effectively improve detection accuracy and efficiency in tasks such as material detection, dimensional measurement, and defect identification.
The excellent performance of this lens makes it an ideal choice for various industrial vision systems, helping companies achieve more efficient and accurate automated inspection and production process optimization.

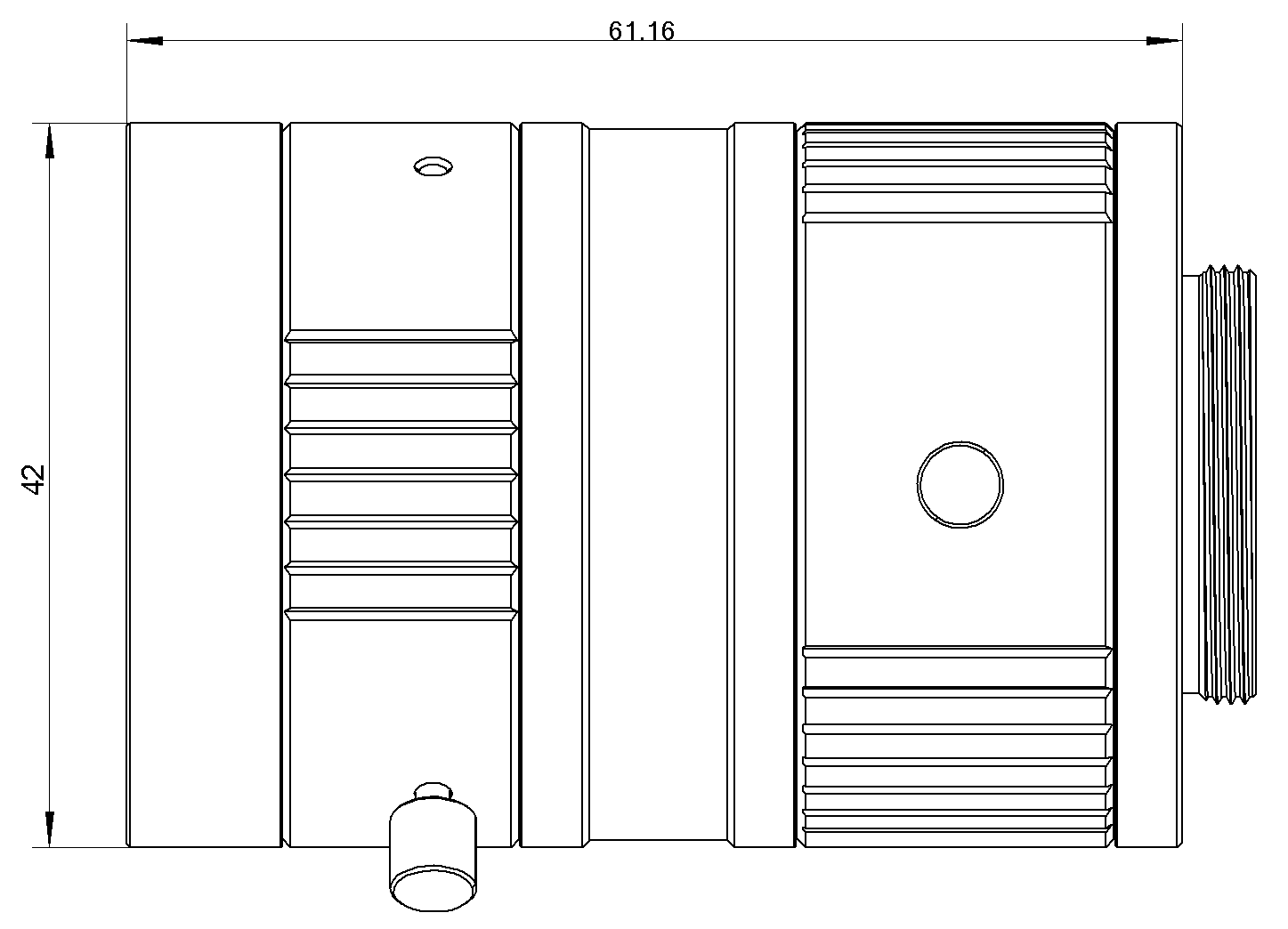

Dimensions
This high-performance lens is widely used in industrial visual inspection, automated production lines, robot vision, intelligent manufacturing and other fields. With its high relative illumination and large aperture design, it can provide excellent imaging quality in low-light environments, ensure accurate capture of details, and effectively improve detection accuracy and efficiency in tasks such as material detection, dimensional measurement, and defect identification.
The excellent performance of this lens makes it an ideal choice for various industrial vision systems, helping companies achieve more efficient and accurate automated inspection and production process optimization.
Dimensions
Model | SF5024TC |
Focal length | 50 mm |
Maximum target size | 1.1” |
Pixel level | 25MP |
Aperture range (F number) | 2.4-16 |
Aperture control | Manual |
Focus range | 250 mm-∞ |
Focus control | Manual |
Field of view (DxH) | 15.18×11.14 |
TV distortion (%) | 0.014 |
Filter thread | M40.5×0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ42.0×61.16 |
Weight (g) | 182.2 g |
Operating temperature (℃) | -10~50 |
Model | SF5024TC |
Focal length | 50 mm |
Maximum target size | 1.1” |
Pixel level | 25MP |
Aperture range (F number) | 2.4-16 |
Aperture control | Manual |
Focus range | 250 mm-∞ |
Focus control | Manual |
Field of view (DxH) | 15.18×11.14 |
TV distortion (%) | 0.014 |
Filter thread | M40.5×0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ42.0×61.16 |
Weight (g) | 182.2 g |
Operating temperature (℃) | -10~50 |
