ZX-SF3528T
Lomosen
1.1‘’ inch
2.8-22
0.2m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
High Relative Illumination & Large Aperture: Featuring high relative illumination and a large aperture, this lens enhances image brightness, ensuring clear and detailed visuals even in low-light environments. It excels in situations where lighting conditions are challenging.
Wide Focus Range: With a focus range from 200mm to infinity, the lens offers excellent versatility, delivering sharp, high-quality images at varying distances, ensuring clarity across a wide spectrum of focal points.
Flexible Focal Length Options: The lens series spans focal lengths from 6mm to 50mm, providing adaptability for different applications. Whether capturing expansive views or fine details, this range caters to diverse shooting requirements.
Optimized for Specific Applications: Designed for cameras with up to 2000 pixels and 1.1-inch target surfaces, the lens optimizes imaging performance to achieve superior results in a variety of shooting scenarios.

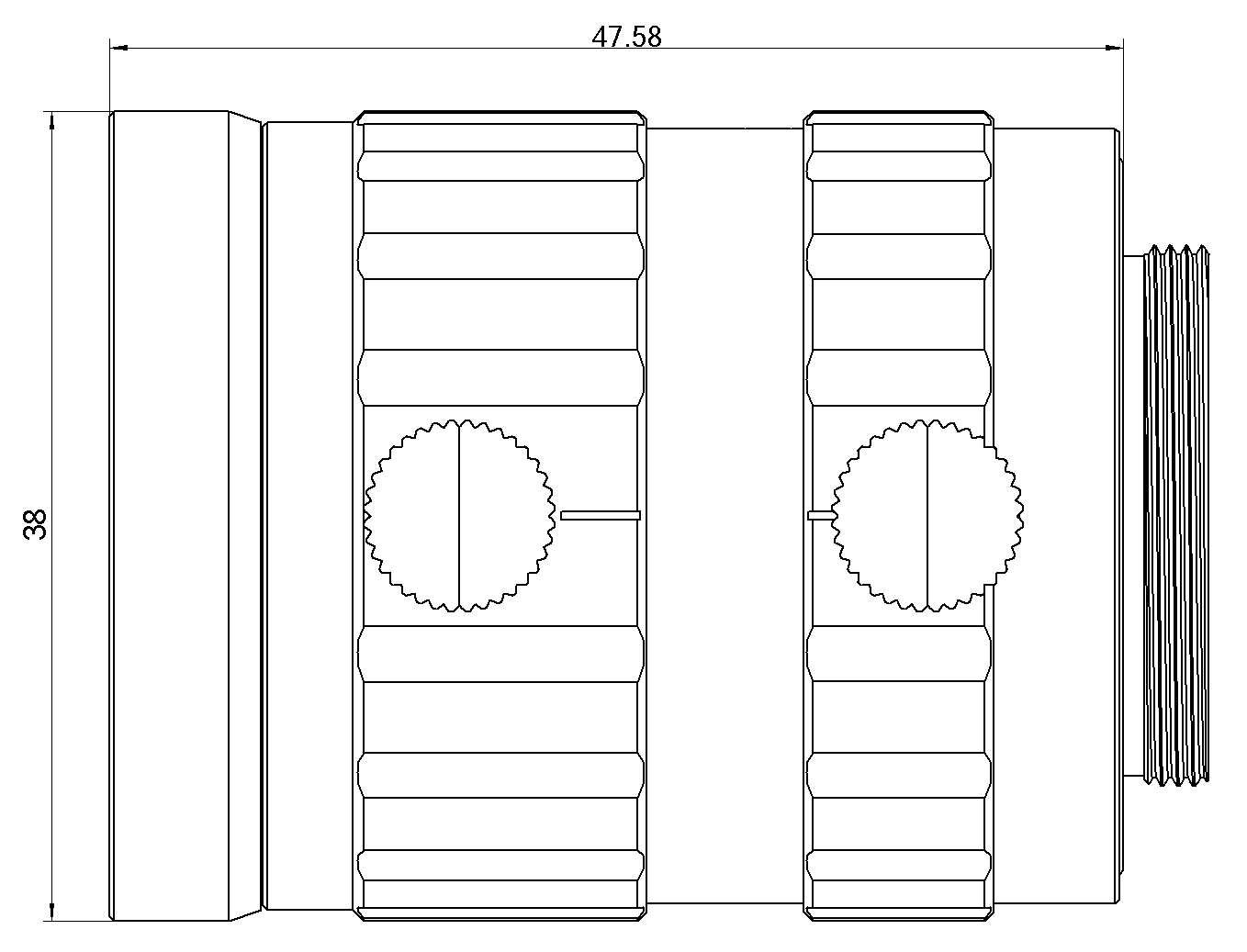

Dimensions
High Relative Illumination & Large Aperture: Featuring high relative illumination and a large aperture, this lens enhances image brightness, ensuring clear and detailed visuals even in low-light environments. It excels in situations where lighting conditions are challenging.
Wide Focus Range: With a focus range from 200mm to infinity, the lens offers excellent versatility, delivering sharp, high-quality images at varying distances, ensuring clarity across a wide spectrum of focal points.
Flexible Focal Length Options: The lens series spans focal lengths from 6mm to 50mm, providing adaptability for different applications. Whether capturing expansive views or fine details, this range caters to diverse shooting requirements.
Optimized for Specific Applications: Designed for cameras with up to 2000 pixels and 1.1-inch target surfaces, the lens optimizes imaging performance to achieve superior results in a variety of shooting scenarios.
Dimensions
Model | SF3528T type |
Focal length | 35 mm |
Maximum target size | 1.1” |
Pixel level | 20MP |
Aperture range (F number) | 2.8-22 |
Aperture control | Manual |
Focus range | 0.2m-∞ |
Focus control | Manual |
Field of view (DxH) | 22.6°×17° |
TV distortion (%) | ±0.04 |
Filter thread | M35.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ38×47.6 |
Weight (g) | 106.6 |
Operating temperature (℃) | -10~50 |
Model | SF3528T type |
Focal length | 35 mm |
Maximum target size | 1.1” |
Pixel level | 20MP |
Aperture range (F number) | 2.8-22 |
Aperture control | Manual |
Focus range | 0.2m-∞ |
Focus control | Manual |
Field of view (DxH) | 22.6°×17° |
TV distortion (%) | ±0.04 |
Filter thread | M35.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ38×47.6 |
Weight (g) | 106.6 |
Operating temperature (℃) | -10~50 |
