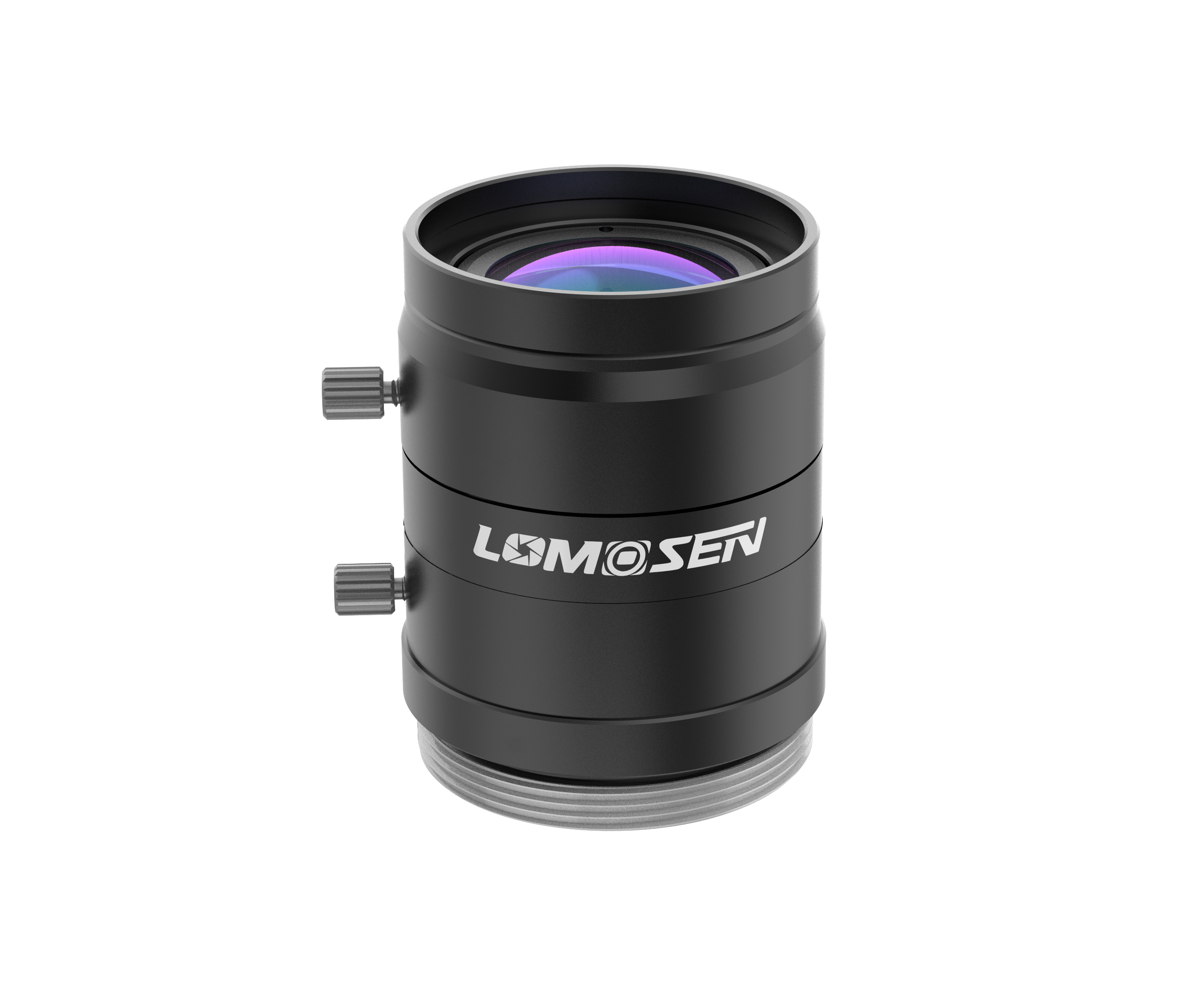

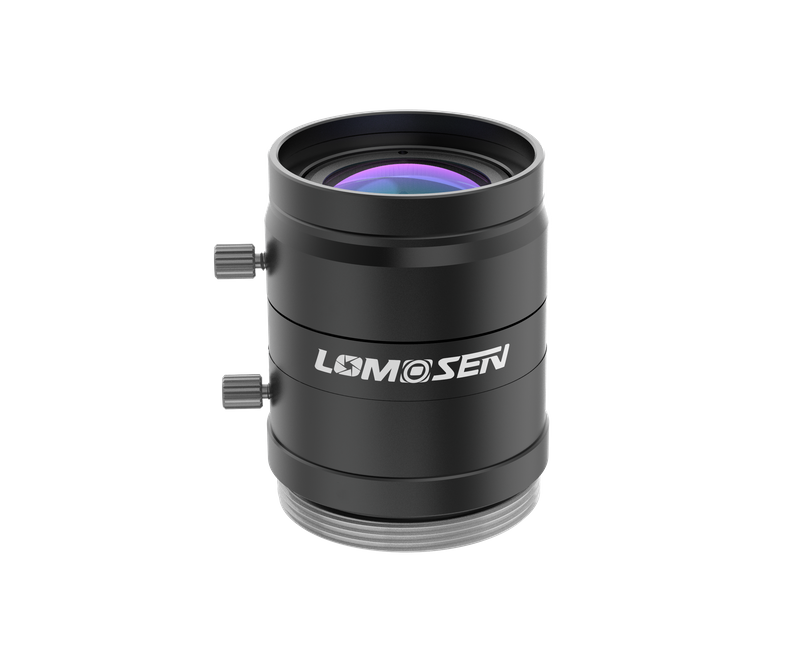

ZX-SF3520C
Lomosen
1/1.8 inch
2.0-C
0.2m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
Designed for high-precision visual inspection, this lens supports 5-megapixel imaging and is suitable for cameras with a target area of 1/1.8 inches or less, ensuring clear and detailed image quality. Its TV distortion is less than 0.5%, ensuring accurate and distortion-free images to meet application scenarios with high-precision requirements. The lens series offers a wide range of focal lengths from 4 to 75 mm, which can flexibly respond to different inspection needs and cover a variety of application scenarios. The ultra-compact design makes it easy to install and integrate in space-constrained environments, saving valuable space and perfectly adapting to various industrial applications.

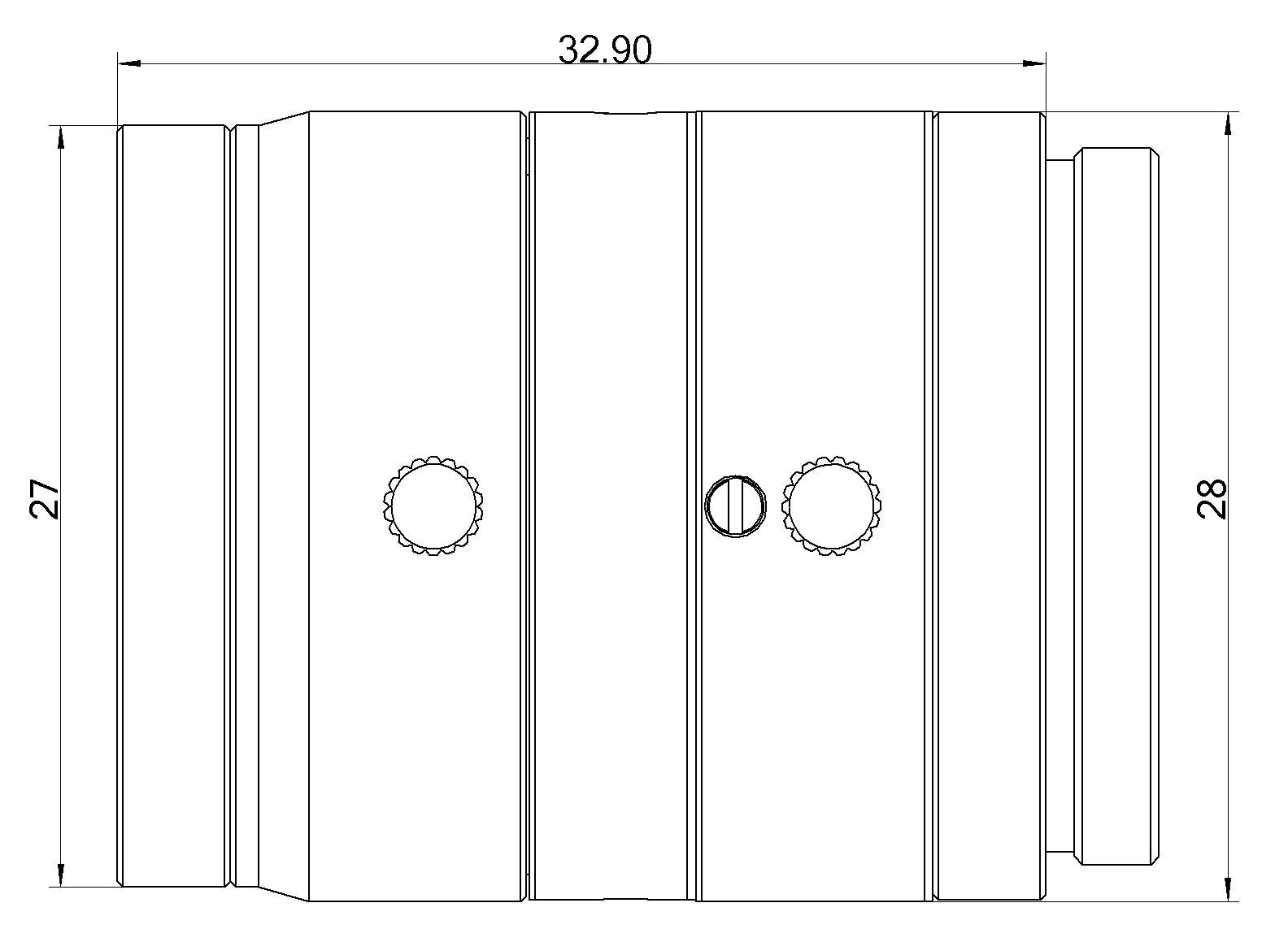

Dimensions
Designed for high-precision visual inspection, this lens supports 5-megapixel imaging and is suitable for cameras with a target area of 1/1.8 inches or less, ensuring clear and detailed image quality. Its TV distortion is less than 0.5%, ensuring accurate and distortion-free images to meet application scenarios with high-precision requirements. The lens series offers a wide range of focal lengths from 4 to 75 mm, which can flexibly respond to different inspection needs and cover a variety of application scenarios. The ultra-compact design makes it easy to install and integrate in space-constrained environments, saving valuable space and perfectly adapting to various industrial applications.
Dimensions
Model | ZX-SF3520C |
Focal length | 35mm |
Maximum target size | 1/1.8 inch |
Pixel level | 5MP |
Aperture range (F number) | 2.0-C |
Aperture control | Manual |
Focus range | 0.2m-∞ |
Focus control | Manual |
Field of view (DxH) | 11.8°×8.7° |
TV distortion (%) | ±0.1 |
Filter thread | M25.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ28×33 |
Weight (g) | Forty-five |
Operating temperature (℃) | -10~50 |
