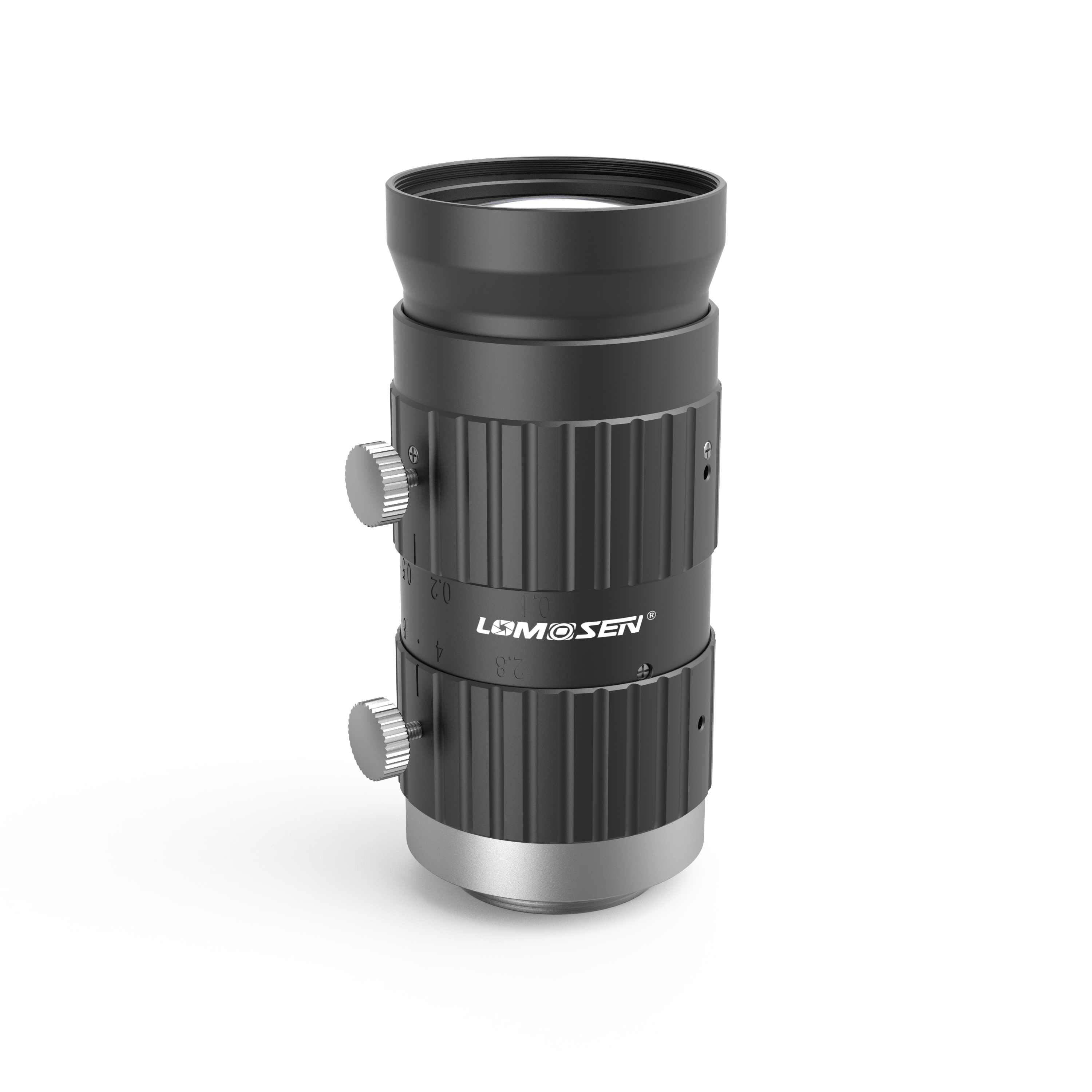

ZX-SF2528Z

5 0 Reviews
  • ZX-SF2528Z

  • Lomosen

  • 4/3″

  • 25mm

  • 20MP

  • 25mm

  • -

  • 2.8-22

  • <0.300

  • -

  • C-mount

  • 0.1m-∞

Availability:
Quantity:

Product Introduction

High relative illumination and large aperture: Optimized optical design provides high relative illumination and a large aperture, ensuring high image brightness and fine detail reproduction.

Wide focusing range: Supports a focusing range from 100mm to infinity, adapting to various inspection scenarios and ensuring consistently stable and reliable image quality.

Flexible focal length coverage: Offers a variety of focal lengths from 12mm to 50mm to suit different work requirements, providing users with more application possibilities.

Suitable for target cameras: Optimized for high-resolution cameras, compatible with target surfaces of 4/3 inches and below, delivering clear and excellent imaging results.

ZX-SF2528Z

Model NumberZX-SF2528Z
Focal Length25mm
Maximum Target Size4/3"
Pixel Count20MP
Aperture Range (F-number)2.8-22
Aperture Control手动
Focus Range0.1m-∞
Focus Control手动
Field of View (DxH)37.5°×28.5°
TV Distortion (%)<0.3
Filter ThreadM35.5×P0.5
InterfaceC口
Flange Distance (mm)17.526
Dimensions (DxL) (mm)Φ37×78
Weight (g)179.5
Operating Temperature (°C)-10~50
