ZX-SF2528YC
Lomosen
2/3 inch
2.8-16
150mm-∞
C-mount
Availability: | |
---|---|
Quantity: | |
Features of industrial lenses
This industrial lens has many unique features that are crucial in precision vision systems:
The industrial lens can be used with industrial cameras and has high resolution, which can accurately capture extremely small details to ensure the clarity and accuracy of the image.
To ensure accurate visual measurement and data collection during use, the industrial lens adopts an ultra-low distortion design to ensure the uniformity of the image in the industrial lens shooting.
The lens adopts a large aperture design, which can better receive light in the application and shoot better light perception.
In an industrial environment, equipment production will produce vibrations that affect lens shooting. This lens has an anti-vibration effect and can work stably in harsh environments.
The industrial lens also has a variety of focal length options to meet different shooting needs.

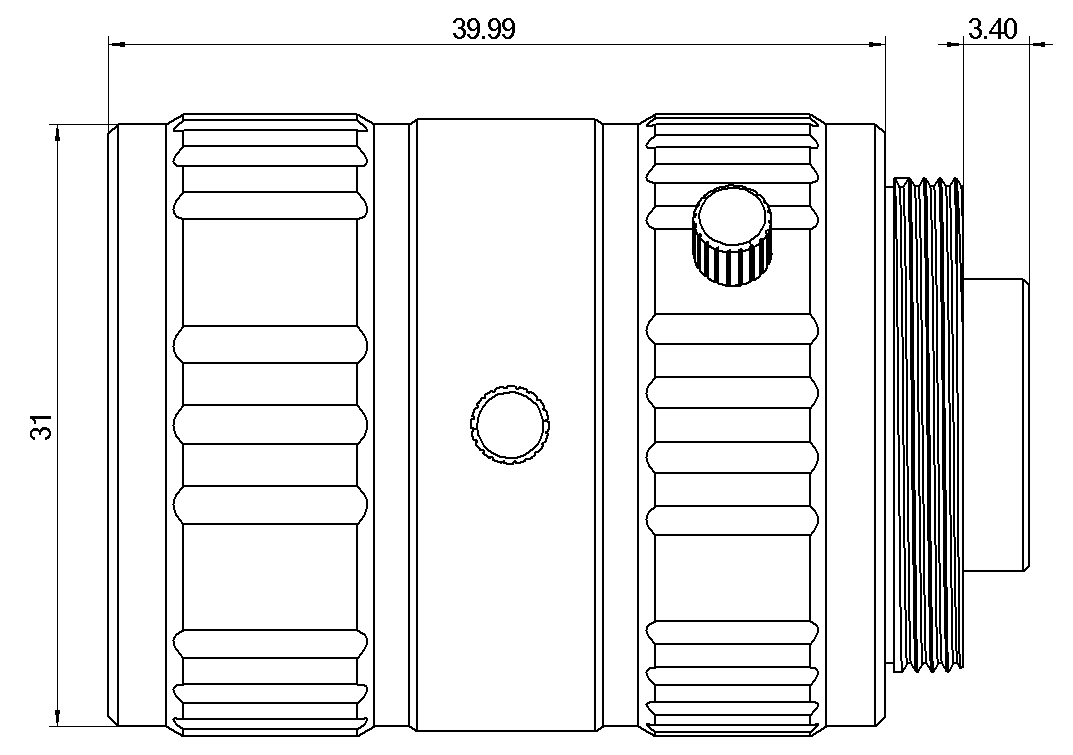

Dimensions
Features of industrial lenses
This industrial lens has many unique features that are crucial in precision vision systems:
The industrial lens can be used with industrial cameras and has high resolution, which can accurately capture extremely small details to ensure the clarity and accuracy of the image.
To ensure accurate visual measurement and data collection during use, the industrial lens adopts an ultra-low distortion design to ensure the uniformity of the image in the industrial lens shooting.
The lens adopts a large aperture design, which can better receive light in the application and shoot better light perception.
In an industrial environment, equipment production will produce vibrations that affect lens shooting. This lens has an anti-vibration effect and can work stably in harsh environments.
The industrial lens also has a variety of focal length options to meet different shooting needs.
Dimensions
Model | ZX-SF2528YC |
Focal length | 25 mm |
Maximum target size | 2/3 inch |
Pixel level | 12MP |
Aperture range (F number) | 2.8-16 |
Aperture control | Manual |
Focus range | 0.15 m-far |
Focus control | Manual |
Field of view (DxH) | 20.05°×15.11° |
TV distortion (%) | -0.04 |
Filter thread | M27 ,P=0.5 mm |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ32×40 |
Weight (g) | 58.5±2 |
Operating temperature (℃) | -20~70 |
Model | ZX-SF2528YC |
Focal length | 25 mm |
Maximum target size | 2/3 inch |
Pixel level | 12MP |
Aperture range (F number) | 2.8-16 |
Aperture control | Manual |
Focus range | 0.15 m-far |
Focus control | Manual |
Field of view (DxH) | 20.05°×15.11° |
TV distortion (%) | -0.04 |
Filter thread | M27 ,P=0.5 mm |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ32×40 |
Weight (g) | 58.5±2 |
Operating temperature (℃) | -20~70 |
