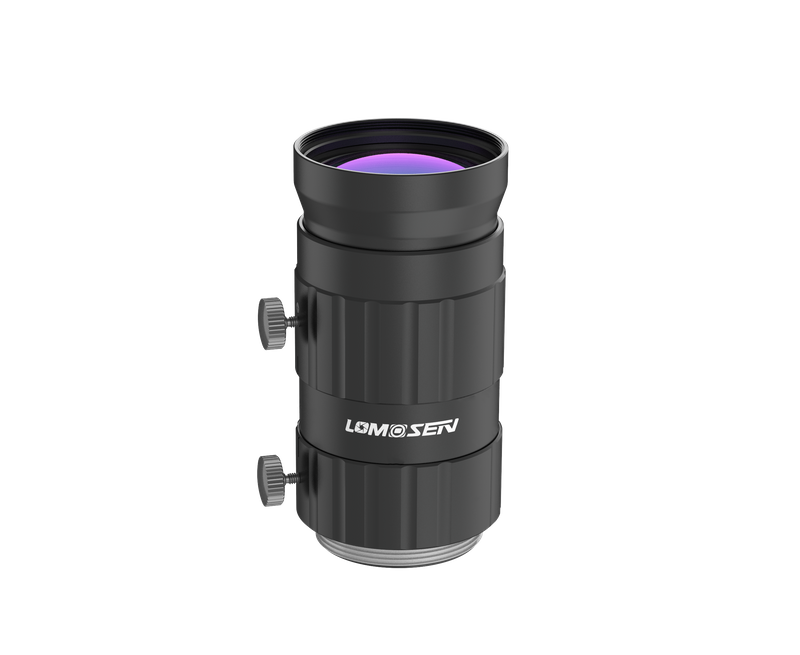

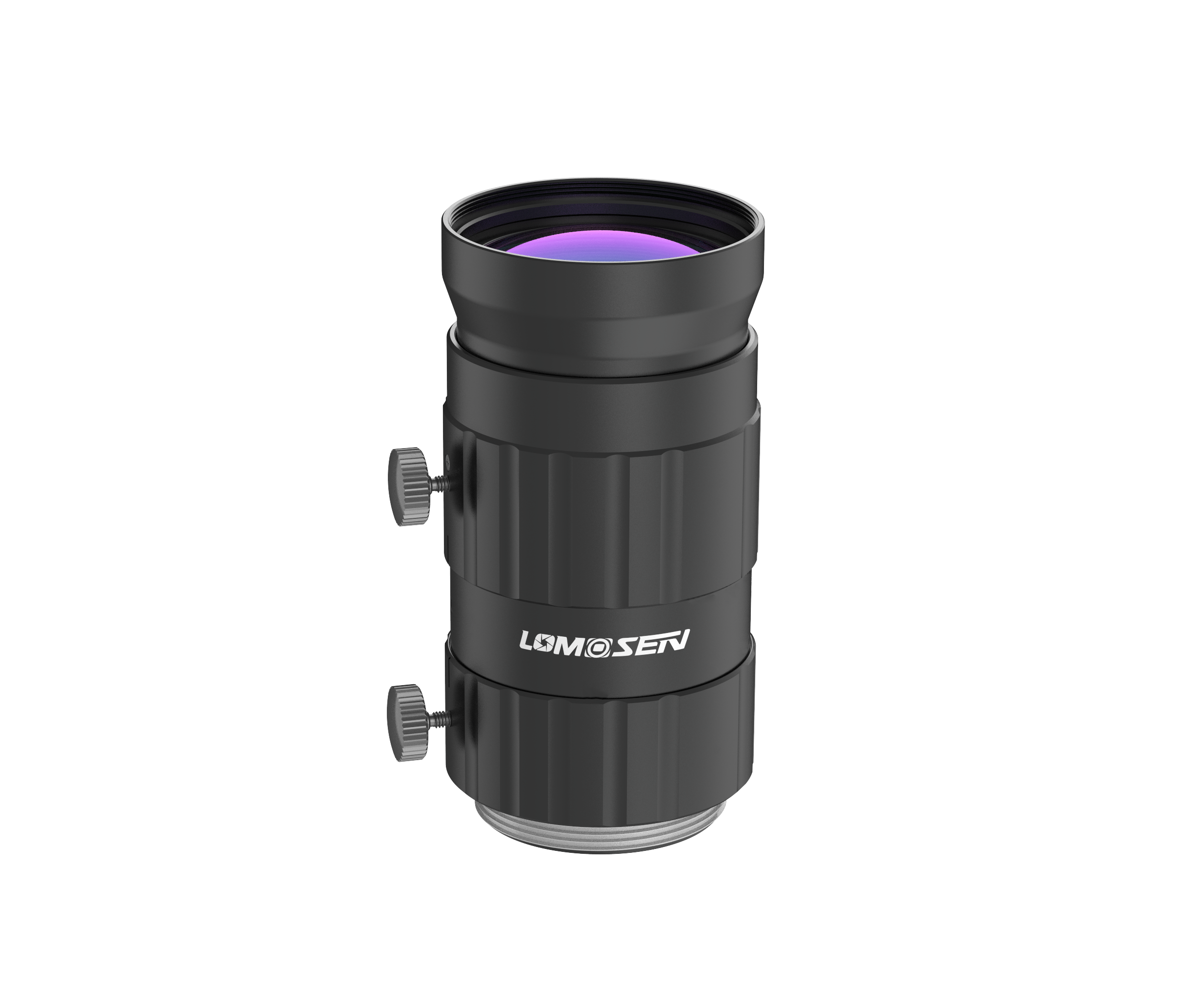

ZX-SF2528T
Lomosen
20MP
25mm
1.1″
2.8-22
±0.1
-
C-mount
0.1m-∞
| Availability: | |
|---|---|
| Quantity: | |
High Relative Illumination & Large Aperture: This lens incorporates both high relative illumination and a large aperture, dramatically boosting image brightness. It delivers crisp, detailed images even in low-light conditions, making it particularly effective in challenging lighting environments.
Wide Focus Range: Offering a focus range from 100mm to infinity, this lens ensures sharpness and image clarity across varying distances, providing excellent flexibility for different focal points and shooting situations.
Versatile Focal Lengths: The lens series covers a broad focal length range of 6mm to 50mm, accommodating diverse applications. Whether capturing wide landscapes or intricate details, it provides the versatility needed to meet different visual requirements.
Specific Applications: Engineered for cameras with up to 2000 pixels and 1.1-inch target surfaces, this lens maximizes imaging performance, ensuring optimal results for various professional and industrial scenarios.

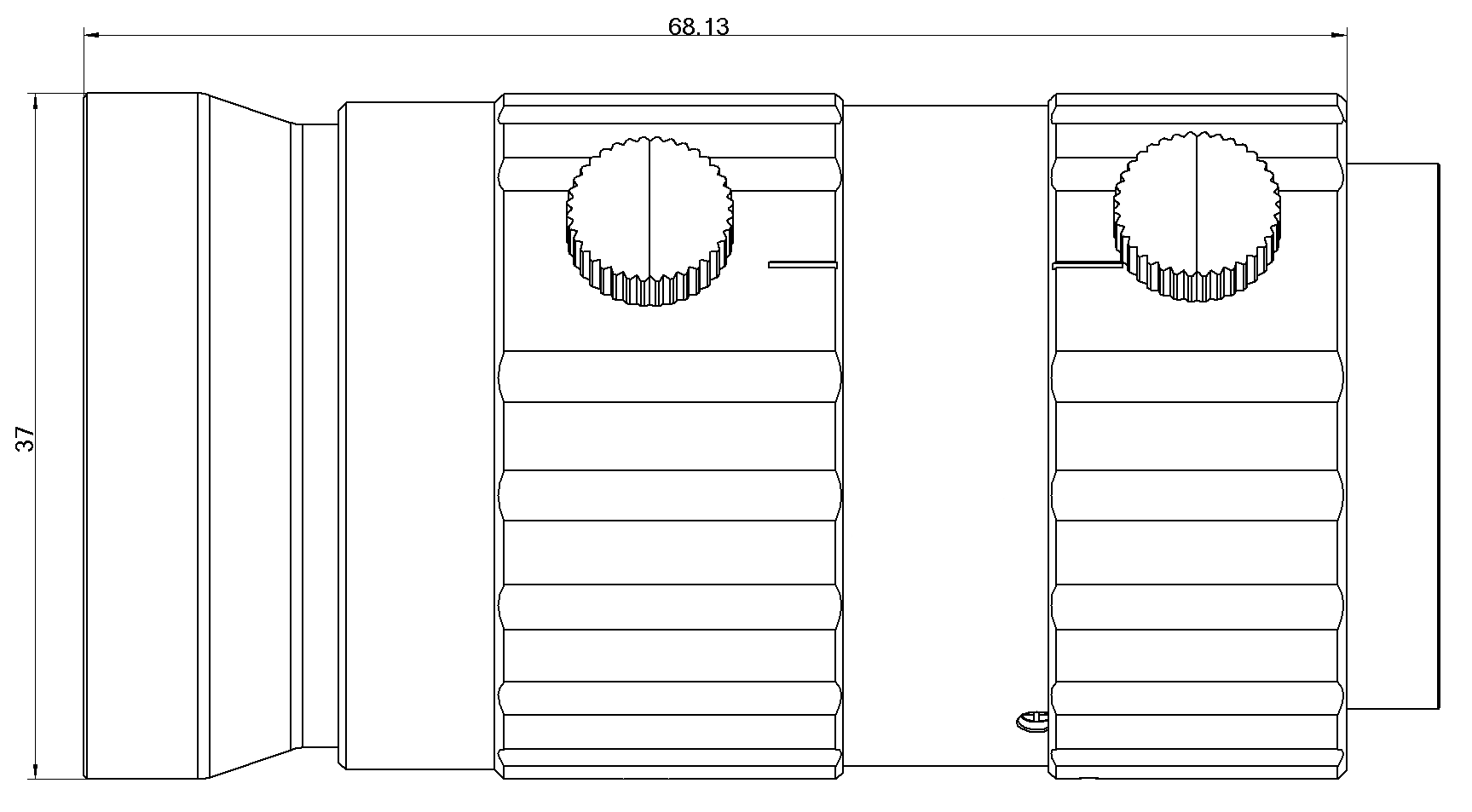

Dimensions

High Relative Illumination & Large Aperture: This lens incorporates both high relative illumination and a large aperture, dramatically boosting image brightness. It delivers crisp, detailed images even in low-light conditions, making it particularly effective in challenging lighting environments.
Wide Focus Range: Offering a focus range from 100mm to infinity, this lens ensures sharpness and image clarity across varying distances, providing excellent flexibility for different focal points and shooting situations.
Versatile Focal Lengths: The lens series covers a broad focal length range of 6mm to 50mm, accommodating diverse applications. Whether capturing wide landscapes or intricate details, it provides the versatility needed to meet different visual requirements.
Specific Applications: Engineered for cameras with up to 2000 pixels and 1.1-inch target surfaces, this lens maximizes imaging performance, ensuring optimal results for various professional and industrial scenarios.
Dimensions

| Model | SF2528T |
| Focal length | 25 mm |
| Maximum target size | 1.1″ |
| Pixel level | 20MP |
| Aperture range (F number) | 2.8-22 |
| Aperture control | Manual |
| Focus range | 0.1m to ∞ |
| Focus control | Manual |
| Field of view (DxH) | 30.4°×23° |
| TV distortion (%) | ±0.1 |
| Filter thread | M35.5×P0.5 |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ37×78 |
| Weight (g) | 179.5 |
| Operating temperature (℃) | -10~50 |
| Model | SF2528T |
| Focal length | 25 mm |
| Maximum target size | 1.1″ |
| Pixel level | 20MP |
| Aperture range (F number) | 2.8-22 |
| Aperture control | Manual |
| Focus range | 0.1m to ∞ |
| Focus control | Manual |
| Field of view (DxH) | 30.4°×23° |
| TV distortion (%) | ±0.1 |
| Filter thread | M35.5×P0.5 |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ37×78 |
| Weight (g) | 179.5 |
| Operating temperature (℃) | -10~50 |
