ZX-SF2524TC
Lomosen
1.1 inch
2.4-16
150mm-∞
C-mount
Availability: | |
---|---|
Quantity: | |
This lens adopts an optimized optical design, combined with high relative illumination and large aperture, which can effectively improve the image brightness and ensure that the image quality is still clear and bright even in low-light environments. Due to the larger aperture design, the lens can capture more light and present more details, making the image sharper and rich in details. It can provide excellent visual performance in both complex industrial environments and low-light conditions.
The lens supports a wide focus range from 150 mm to infinity, which can adapt to a variety of different working scenarios. Whether it is close-up shooting details or long-distance detection needs, the lens can ensure stable imaging quality. Its excellent focusing ability enables the lens to maintain consistent high performance in a variety of application environments, meet the needs of various industrial detections, and ensure accurate and clear imaging effects.

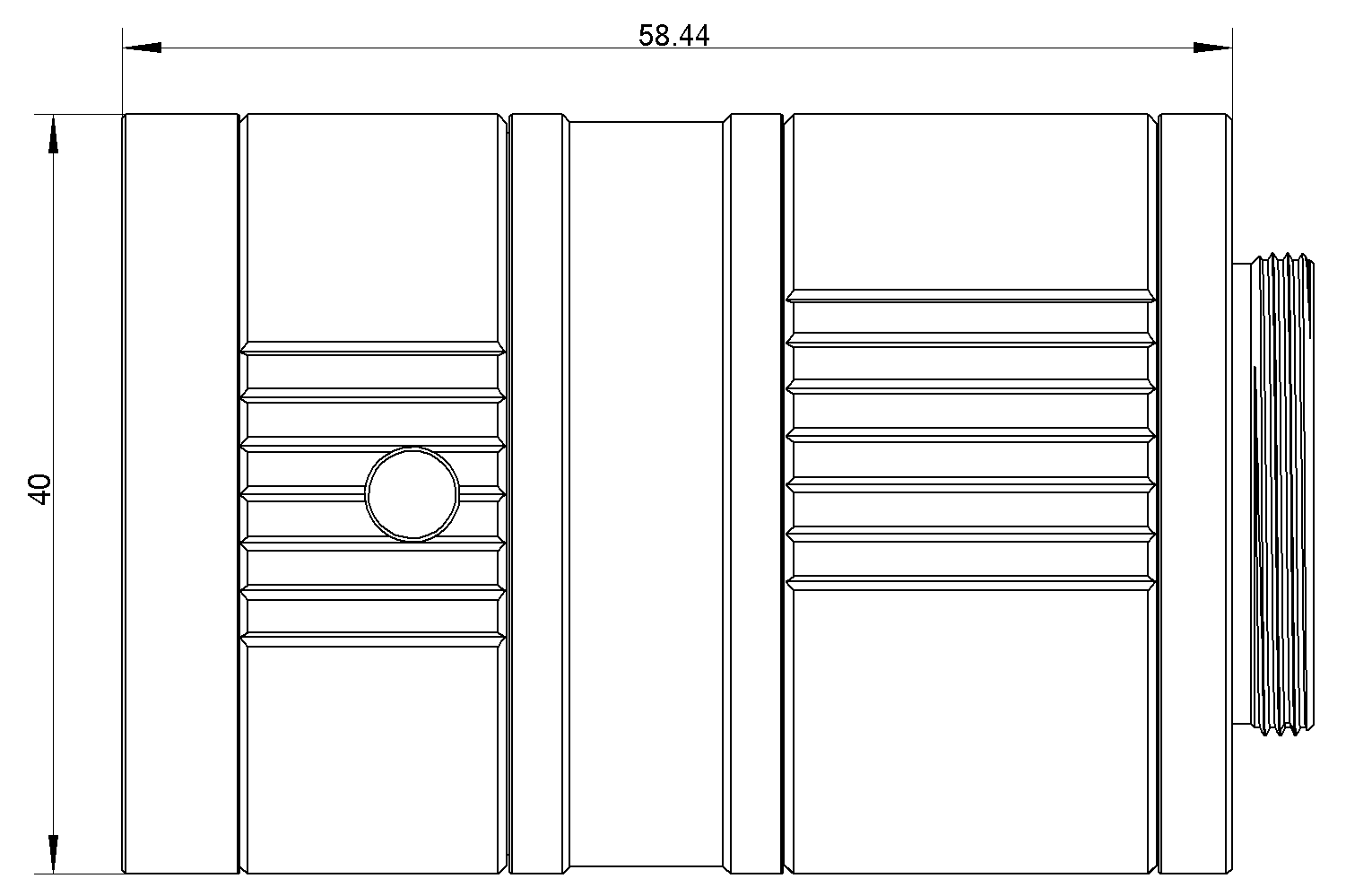

Dimensions
This lens adopts an optimized optical design, combined with high relative illumination and large aperture, which can effectively improve the image brightness and ensure that the image quality is still clear and bright even in low-light environments. Due to the larger aperture design, the lens can capture more light and present more details, making the image sharper and rich in details. It can provide excellent visual performance in both complex industrial environments and low-light conditions.
The lens supports a wide focus range from 150 mm to infinity, which can adapt to a variety of different working scenarios. Whether it is close-up shooting details or long-distance detection needs, the lens can ensure stable imaging quality. Its excellent focusing ability enables the lens to maintain consistent high performance in a variety of application environments, meet the needs of various industrial detections, and ensure accurate and clear imaging effects.
Dimensions
Model | SF2524TC |
Focal length | 25 mm |
Maximum target size | 1.1” |
Pixel level | 25MP |
Aperture range (F number) | 2.4-16 |
Aperture control | Manual |
Focus range | 150 mm-∞ |
Focus control | Manual |
Field of view (DxH) | 30.47×22.53 |
TV distortion (%) | -0.08 |
Filter thread | M37.0×P 0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ40.0×58.44 |
Weight (g) | 165.4 g |
Operating temperature (℃) | -10~50 |
Model | SF2524TC |
Focal length | 25 mm |
Maximum target size | 1.1” |
Pixel level | 25MP |
Aperture range (F number) | 2.4-16 |
Aperture control | Manual |
Focus range | 150 mm-∞ |
Focus control | Manual |
Field of view (DxH) | 30.47×22.53 |
TV distortion (%) | -0.08 |
Filter thread | M37.0×P 0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ40.0×58.44 |
Weight (g) | 165.4 g |
Operating temperature (℃) | -10~50 |
