ZX-SF2514B
Lomosen
2/3 inch
1.4-16
0.3m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
Support high-precision imaging, compatible with 2/3-inch target surface
Designed for 5-megapixel industrial cameras, suitable for 2/3-inch and below target surfaces, effectively meet high-definition imaging needs, and provide reliable visual support for machine vision systems.
Multi-focal length coverage, flexible aperture adjustment
Provide a rich selection of focal lengths to adapt to a variety of shooting tasks; flexible aperture adjustment can easily cope with complex lighting conditions and multi-scene application requirements.
High-resolution and low-distortion design
The lens images sharp and clear, with accurate color reproduction, and low-distortion design to ensure the picture is real and stable, suitable for high-precision detection and recognition scenes.
Product stability
Each lens undergoes multiple quality inspections to ensure reliable performance and consistent quality, providing long-lasting and stable technical guarantees for industrial applications.

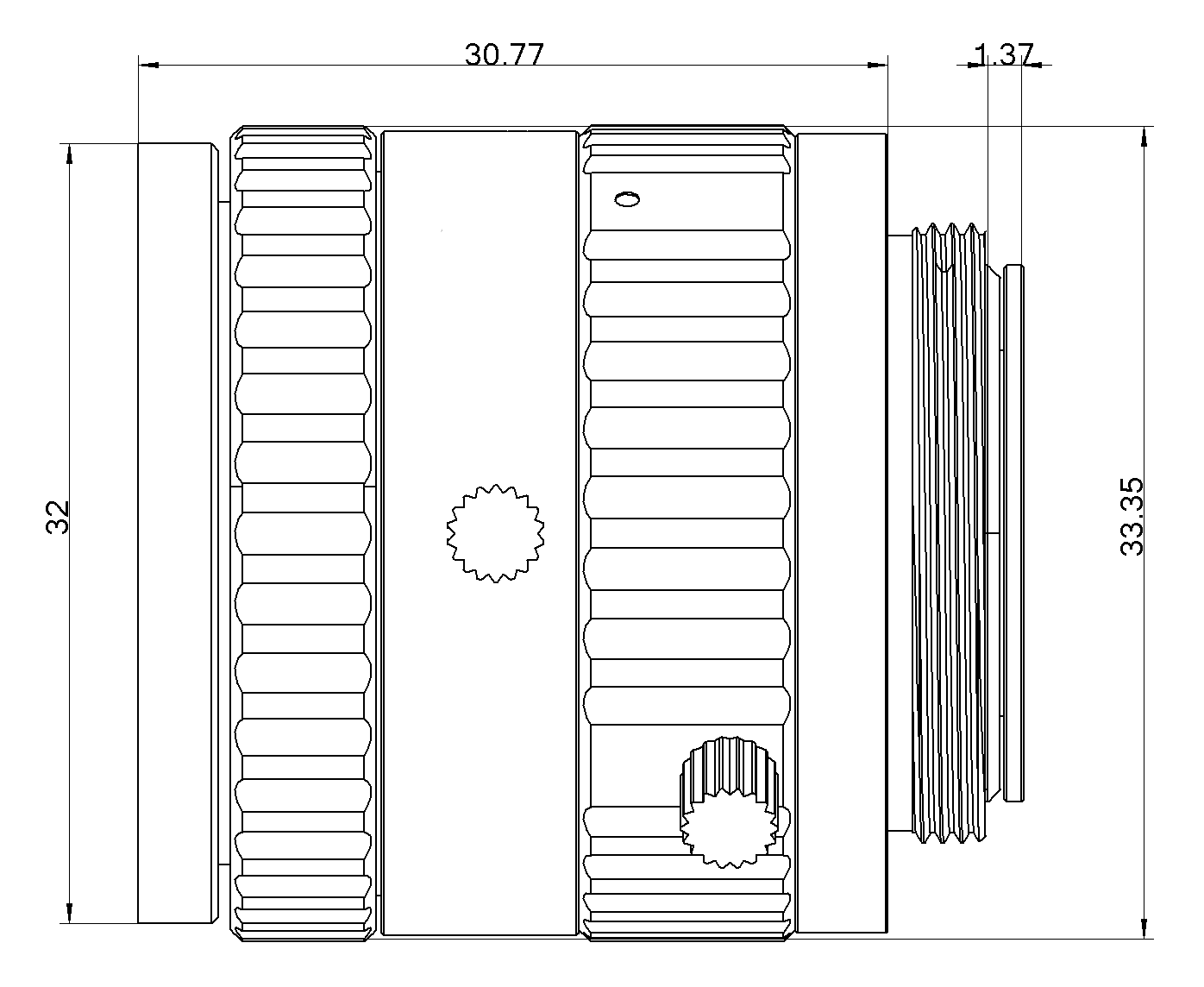

Dimensions
Support high-precision imaging, compatible with 2/3-inch target surface
Designed for 5-megapixel industrial cameras, suitable for 2/3-inch and below target surfaces, effectively meet high-definition imaging needs, and provide reliable visual support for machine vision systems.
Multi-focal length coverage, flexible aperture adjustment
Provide a rich selection of focal lengths to adapt to a variety of shooting tasks; flexible aperture adjustment can easily cope with complex lighting conditions and multi-scene application requirements.
High-resolution and low-distortion design
The lens images sharp and clear, with accurate color reproduction, and low-distortion design to ensure the picture is real and stable, suitable for high-precision detection and recognition scenes.
Product stability
Each lens undergoes multiple quality inspections to ensure reliable performance and consistent quality, providing long-lasting and stable technical guarantees for industrial applications.
Dimensions
Model | ZX-SF2514B |
Focal length | 25 mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.4-16 |
Aperture control | Manual |
Focus range | 0.3m-∞ |
Focus control | Manual |
Field of view (DxH) | 20°×15° |
TV distortion (%) | 0.2 |
Filter thread | M30.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ33.5×36.33 |
Weight (g) | 63g |
Operating temperature (℃) | -10~50 |
Model | ZX-SF2514B |
Focal length | 25 mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.4-16 |
Aperture control | Manual |
Focus range | 0.3m-∞ |
Focus control | Manual |
Field of view (DxH) | 20°×15° |
TV distortion (%) | 0.2 |
Filter thread | M30.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ33.5×36.33 |
Weight (g) | 63g |
Operating temperature (℃) | -10~50 |
