ZX-SF1628YC
Lomosen
2/3 inch
2.8-16
150mm-∞
C-mount
Availability: | |
---|---|
Quantity: | |
Application areas of industrial lenses
Automated production lines: Industrial lenses can accurately capture the details of high-speed moving objects in production lines and can be used for tasks such as quality control, defect detection, and part positioning on production lines.
Intelligent manufacturing and machine vision: Industrial lenses can be equipped with a machine vision system to achieve automatic identification, automated assembly, and precision operation.
Traffic and safety monitoring: Industrial lenses can be used in highway monitoring, traffic monitoring systems, and security monitoring equipment to help identify license plates, people, and objects.
Food production industry: In food production, industrial lenses can be used for testing and packaging to ensure product compliance and safety and to monitor food production in real time.

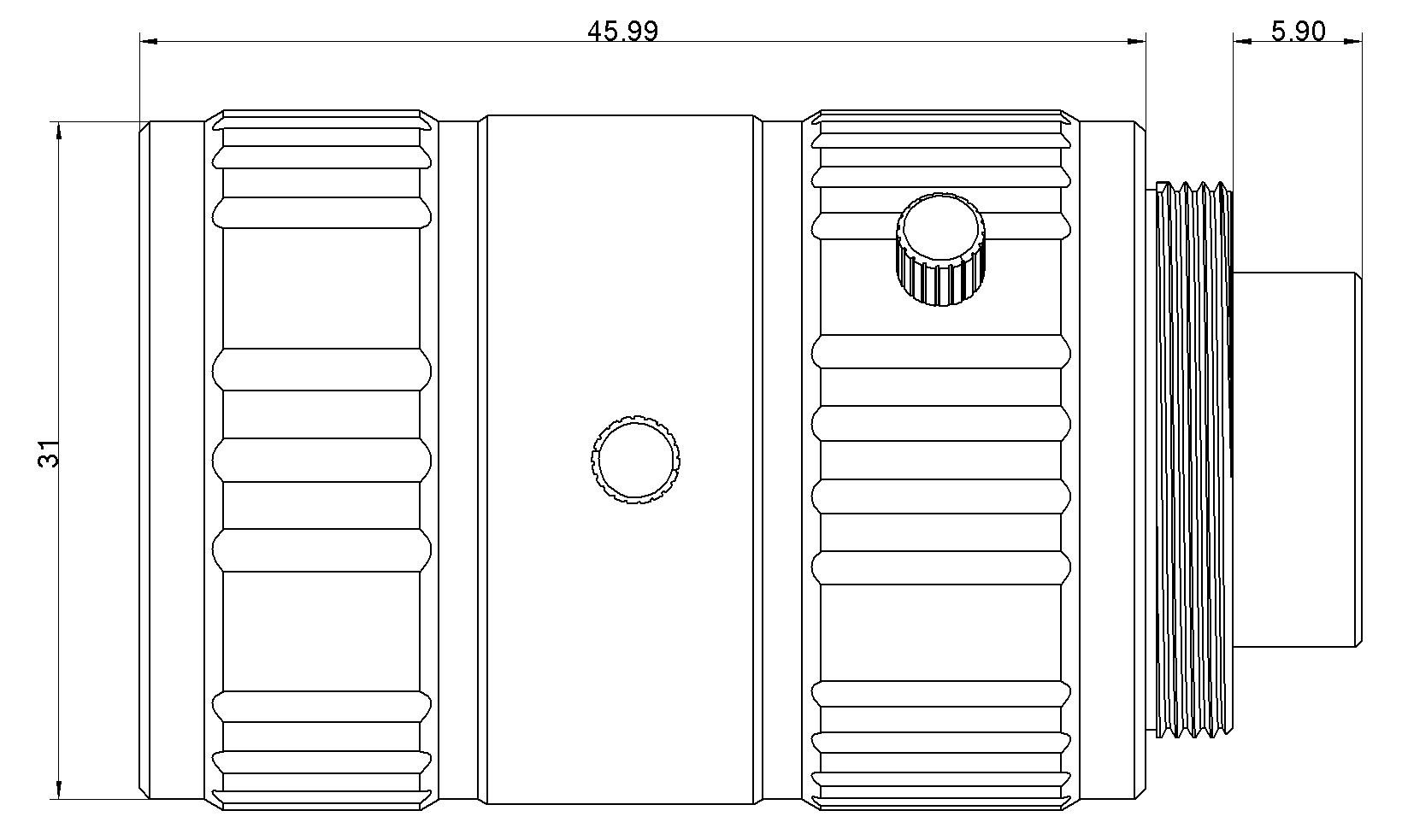

Dimensions
Application areas of industrial lenses
Automated production lines: Industrial lenses can accurately capture the details of high-speed moving objects in production lines and can be used for tasks such as quality control, defect detection, and part positioning on production lines.
Intelligent manufacturing and machine vision: Industrial lenses can be equipped with a machine vision system to achieve automatic identification, automated assembly, and precision operation.
Traffic and safety monitoring: Industrial lenses can be used in highway monitoring, traffic monitoring systems, and security monitoring equipment to help identify license plates, people, and objects.
Food production industry: In food production, industrial lenses can be used for testing and packaging to ensure product compliance and safety and to monitor food production in real time.
Dimensions
Model | ZX-SF1628YC |
Focal length | 16 mm |
Maximum image size | 2/3” |
Pixel level | 12MP |
Aperture range (F-number) | 2.8-16 |
Aperture control | Manual |
Focus range | 0.15m-far |
Focus control | Manual |
Field of view (DxH) | 30.89°x23.41° |
TV distortion (%) | -0.07 |
Filter thread | M27 ,P=0.5 mm |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Medium 32x46 |
Weight (g) | 76.3+2 |
Operating temperature (°C) | -20~70 |
Model | ZX-SF1628YC |
Focal length | 16 mm |
Maximum image size | 2/3” |
Pixel level | 12MP |
Aperture range (F-number) | 2.8-16 |
Aperture control | Manual |
Focus range | 0.15m-far |
Focus control | Manual |
Field of view (DxH) | 30.89°x23.41° |
TV distortion (%) | -0.07 |
Filter thread | M27 ,P=0.5 mm |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Medium 32x46 |
Weight (g) | 76.3+2 |
Operating temperature (°C) | -20~70 |
