ZX-SF1228YC
Lomosen
12MP
12mm
2/3″
2.8-16
-0.13
-
C-mount
0.15m-∞
| Availability: | |
|---|---|
| Quantity: | |

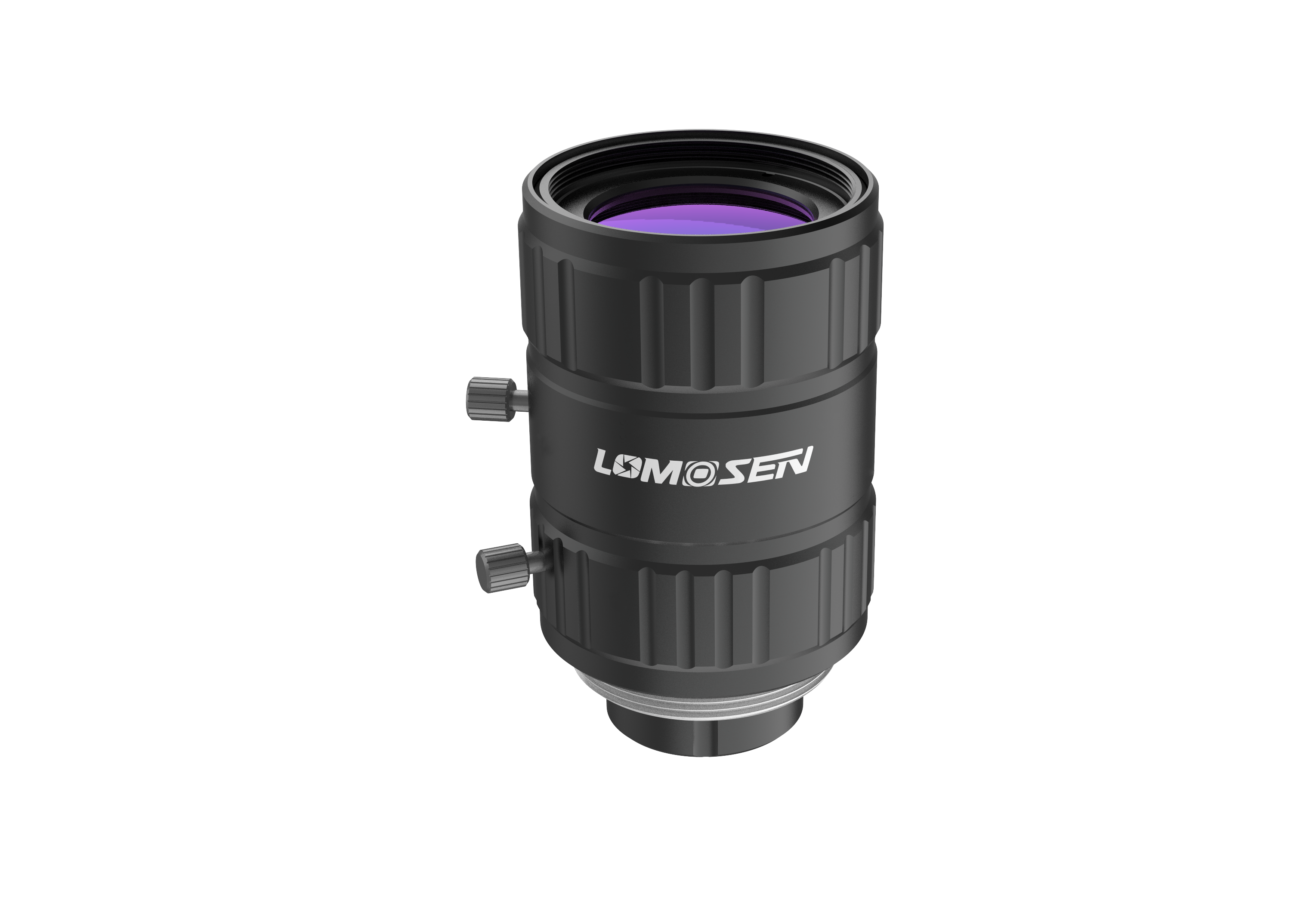

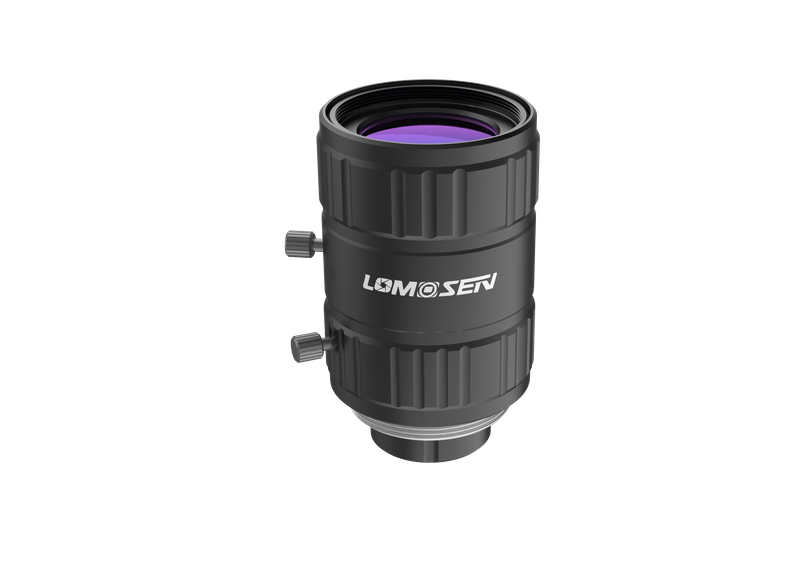

The lens is used in conjunction with an industrial camera to ensure that the entire image can be captured with clarity from the center to the edge, presenting a more detailed and uniform image effect.
The lens adopts an advanced ultra-low distortion design to optimize peripheral light, ensure that the edges of the image remain clear and stable, and present a more realistic image.
It supports a resolution of 12 million pixels during shooting, which can achieve detailed and clear imaging effects and adapt to a variety of shooting needs.
The camera provides a variety of focal length options to flexibly adapt to various application scenarios.
Dimensions

The lens is used in conjunction with an industrial camera to ensure that the entire image can be captured with clarity from the center to the edge, presenting a more detailed and uniform image effect.
The lens adopts an advanced ultra-low distortion design to optimize peripheral light, ensure that the edges of the image remain clear and stable, and present a more realistic image.
It supports a resolution of 12 million pixels during shooting, which can achieve detailed and clear imaging effects and adapt to a variety of shooting needs.
The camera provides a variety of focal length options to flexibly adapt to various application scenarios.
Dimensions

| Model | SF1228YC |
| Focal length | 12 mm |
| Maximum target size | 2/3″ |
| Pixel level | 12MP |
| Aperture range (F number) | 2.8-16 |
| Aperture control | Manual |
| Focus range | 0.15 m-far |
| Focus control | Manual |
| Field of view (DxH) | 40.44°×30.89° |
| TV distortion (%) | -0.13 |
| Filter thread | M27 ,P=0.5 mm |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ32×43.5 |
| Weight (g) | 78.4±2 |
| Operating temperature (℃) | -20~70 |
| Model | SF1228YC |
| Focal length | 12 mm |
| Maximum target size | 2/3″ |
| Pixel level | 12MP |
| Aperture range (F number) | 2.8-16 |
| Aperture control | Manual |
| Focus range | 0.15 m-far |
| Focus control | Manual |
| Field of view (DxH) | 40.44°×30.89° |
| TV distortion (%) | -0.13 |
| Filter thread | M27 ,P=0.5 mm |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ32×43.5 |
| Weight (g) | 78.4±2 |
| Operating temperature (℃) | -20~70 |
