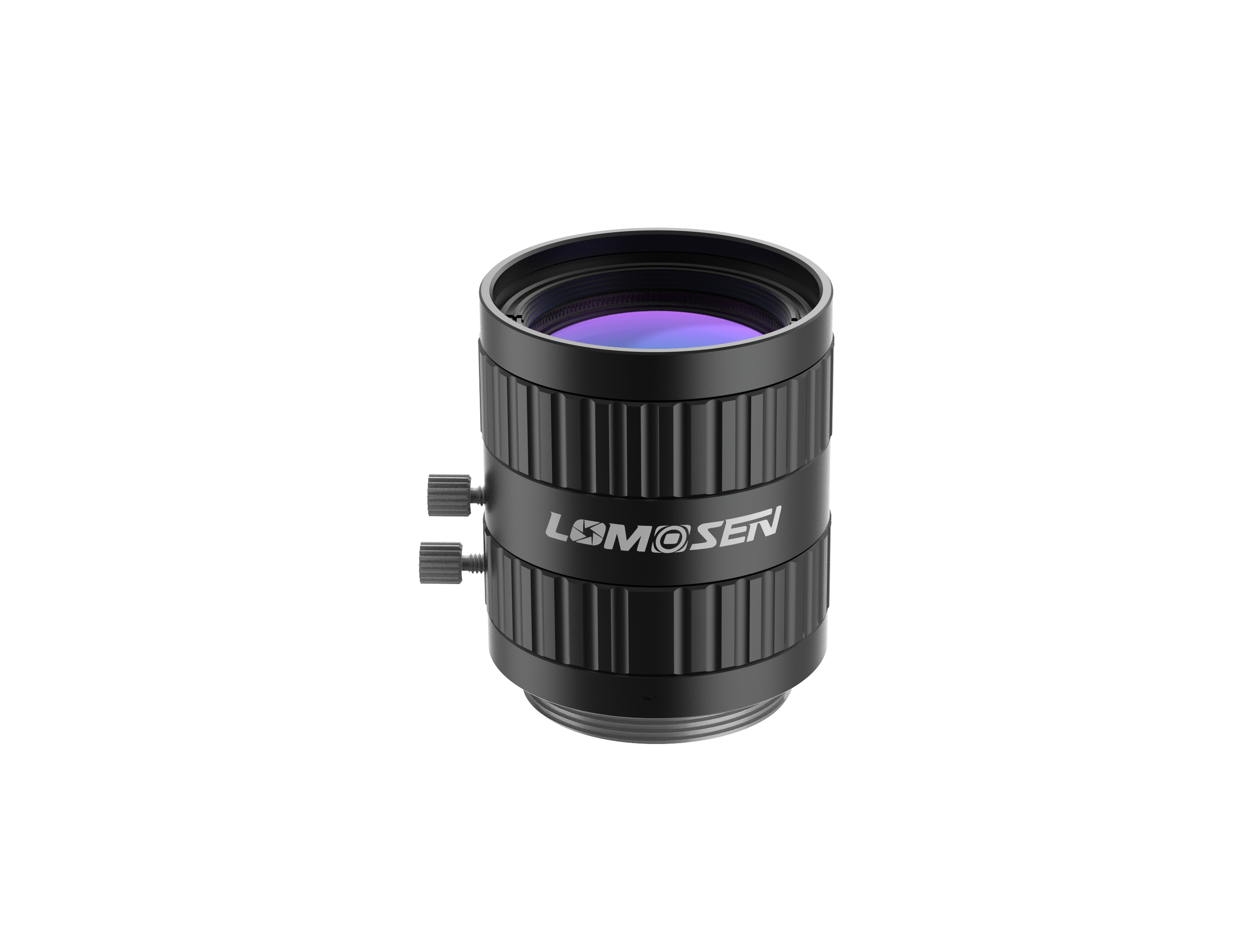

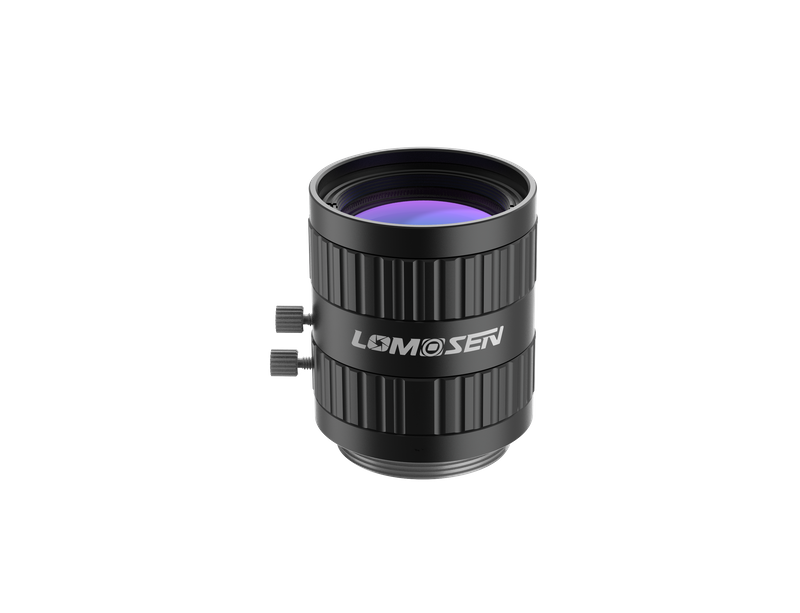

ZX-SF1214B
Lomosen
2/3 inch
1.4-16
0.15m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
Supports 5MP pixel cameras and is compatible with targets up to 2/3 inches
Designed specifically for 5-megapixel cameras, it perfectly adapts to targets of 2/3 inches and below, meets the high-resolution imaging needs of machine vision, and provides reliable guarantees for accurate detection.
Multi-focal length selection and flexible aperture adjustment
Provides a variety of focal length options, which can be freely selected according to actual needs, and can easily cope with different lighting environments through adjustable aperture, suitable for a variety of industrial scenarios.
High-definition imaging, low distortion performance
The imaging effect is clear and sharp, with excellent color contrast, combined with low-distortion optical design, to achieve true restoration, accurately meet the stringent detection requirements.
Strict quality inspection to ensure stable quality
Each lens undergoes comprehensive and rigorous performance testing to ensure product quality consistency and long-term stability, providing lasting support for industrial vision applications.

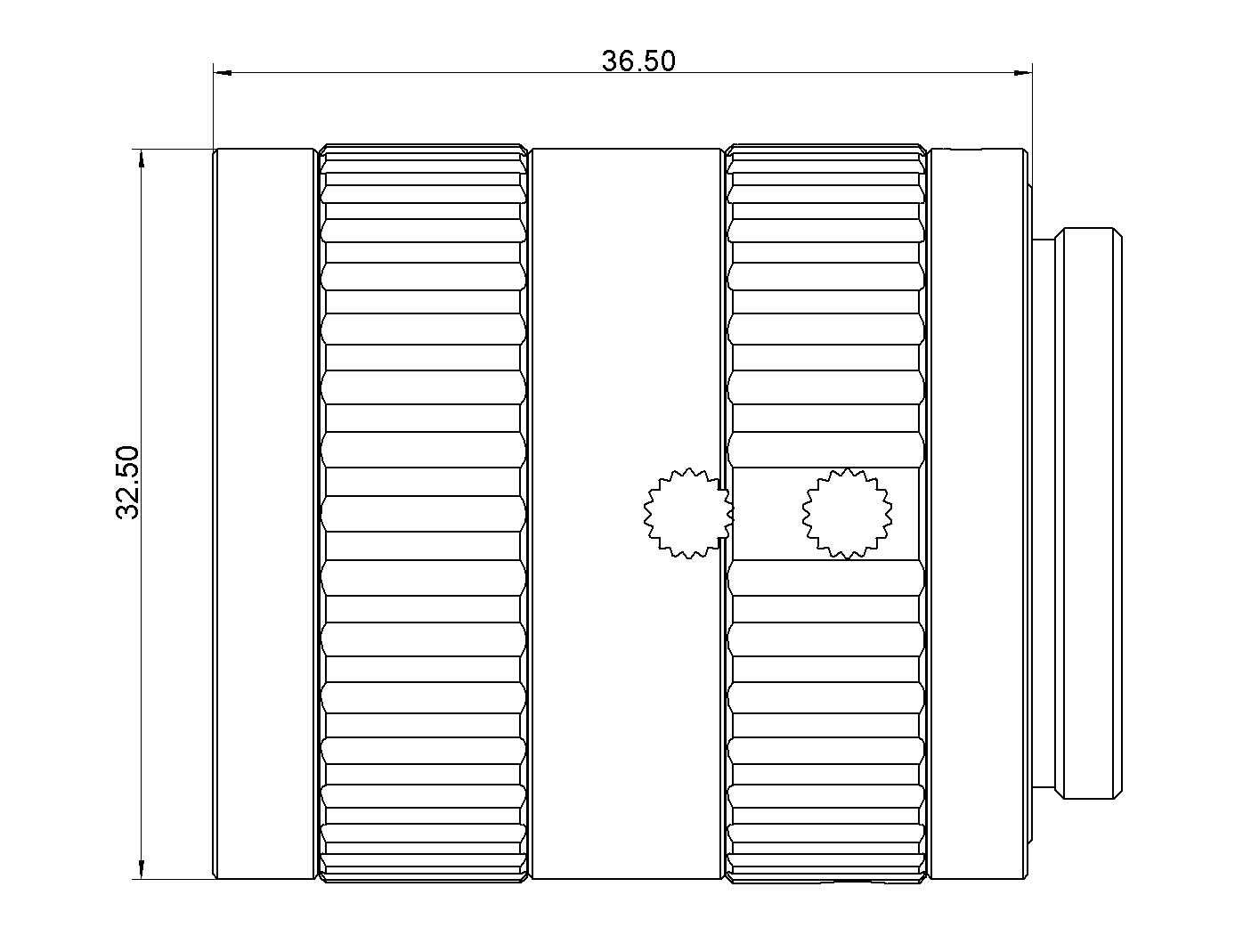

Dimensions
Supports 5MP pixel cameras and is compatible with targets up to 2/3 inches
Designed specifically for 5-megapixel cameras, it perfectly adapts to targets of 2/3 inches and below, meets the high-resolution imaging needs of machine vision, and provides reliable guarantees for accurate detection.
Multi-focal length selection and flexible aperture adjustment
Provides a variety of focal length options, which can be freely selected according to actual needs, and can easily cope with different lighting environments through adjustable aperture, suitable for a variety of industrial scenarios.
High-definition imaging, low distortion performance
The imaging effect is clear and sharp, with excellent color contrast, combined with low-distortion optical design, to achieve true restoration, accurately meet the stringent detection requirements.
Strict quality inspection to ensure stable quality
Each lens undergoes comprehensive and rigorous performance testing to ensure product quality consistency and long-term stability, providing lasting support for industrial vision applications.
Dimensions
Model | SF1214B type |
Focal length | 12 mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.4-16 |
Aperture control | Manual |
Focus range | 0.15 m to ∞ |
Focus control | Manual |
Field of view (DxH) | 39°×30.3° |
TV distortion (%) | 0.8 |
Filter thread | M30.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ32.9×36.5 |
Weight (g) | 62 g |
Operating temperature (℃) | -10~50 |
Model | SF1214B type |
Focal length | 12 mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.4-16 |
Aperture control | Manual |
Focus range | 0.15 m to ∞ |
Focus control | Manual |
Field of view (DxH) | 39°×30.3° |
TV distortion (%) | 0.8 |
Filter thread | M30.5×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ32.9×36.5 |
Weight (g) | 62 g |
Operating temperature (℃) | -10~50 |
