ZX-SF0828YC
Lomosen
12MP
8mm
2/3″
2.8-16
-0.29
-
C-mount
0.1m-∞
| Availability: | |
|---|---|
| Quantity: | |
Lens effect: The lens has excellent high resolution, ensuring clear images with rich details, while providing uniform clarity to ensure that every detail is visible.
Lens function: The innovative design effectively reduces distortion, maintains a high peripheral brightness ratio, ensures stable and distortion-free brightness at the edge of the picture, and perfectly presents every detail.
Lens application: Compatible with 12-megapixel imaging requirements, supports 2/3-inch sensors, suitable for high-resolution applications, and meets various demanding imaging requirements.
Lens shooting range: 8-50mm: Provides a focal length of 8 to 50 mm, flexibly responding to a variety of shooting scenes and meeting different application requirements.

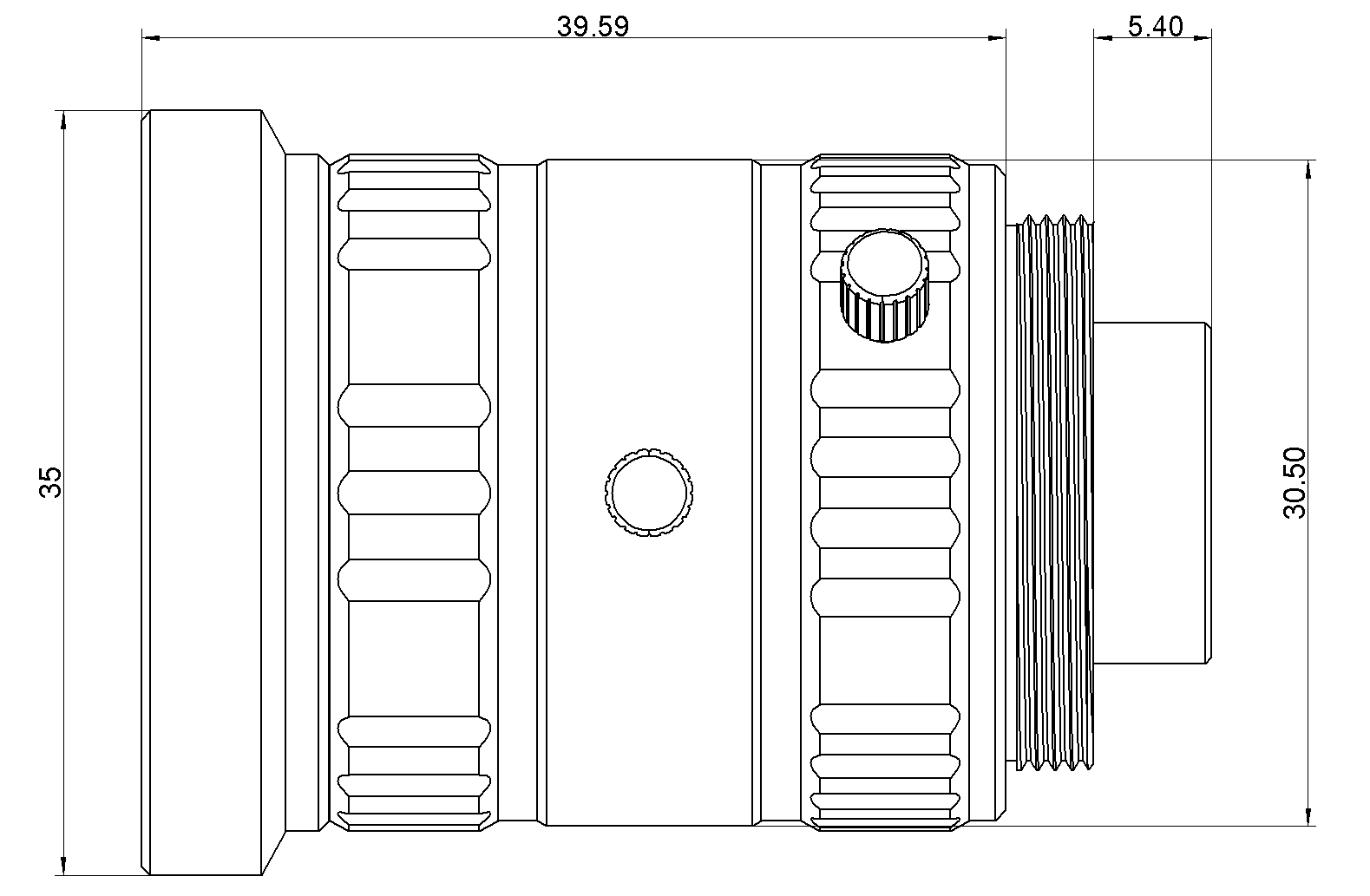

Dimensions

Lens effect: The lens has excellent high resolution, ensuring clear images with rich details, while providing uniform clarity to ensure that every detail is visible.
Lens function: The innovative design effectively reduces distortion, maintains a high peripheral brightness ratio, ensures stable and distortion-free brightness at the edge of the picture, and perfectly presents every detail.
Lens application: Compatible with 12-megapixel imaging requirements, supports 2/3-inch sensors, suitable for high-resolution applications, and meets various demanding imaging requirements.
Lens shooting range: 8-50mm: Provides a focal length of 8 to 50 mm, flexibly responding to a variety of shooting scenes and meeting different application requirements.
Dimensions

| Model | ZX-SF0828YC |
| Focal length | 8 mm |
| Target size | 2/3″ |
| Pixel level | 12MP |
| Aperture range (F number) | 2.8-16 |
| Aperture control | Manual |
| Focus range | 0.1m-lnf |
| Focus control | Manual |
| Field of view (DxH) | 57.84°* 45.02° |
| TV distortion (%) | -0.29 |
| Filter thread | - |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ35×39.6 |
| Weight (g) | 78.8+2 |
| Operating temperature (℃) | ﹣20~70 |
| Model | ZX-SF0828YC |
| Focal length | 8 mm |
| Target size | 2/3″ |
| Pixel level | 12MP |
| Aperture range (F number) | 2.8-16 |
| Aperture control | Manual |
| Focus range | 0.1m-lnf |
| Focus control | Manual |
| Field of view (DxH) | 57.84°* 45.02° |
| TV distortion (%) | -0.29 |
| Filter thread | - |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ35×39.6 |
| Weight (g) | 78.8+2 |
| Operating temperature (℃) | ﹣20~70 |
