ZX-SF0814T
Lomosen
20MP
8mm
1.1″
2.8-22
<5.5
-
C-mount
0.1m-∞
| Availability: | |
|---|---|
| Quantity: | |
Lens Performance
Lens Aperture:A large aperture allows more light to enter, improving the image brightness in low-light environments and ensuring clear and detailed images.
Lens Illumination:High relative illumination enhances image brightness and keeps images clear in low-light or complex lighting environments, suitable for scenes with insufficient light.
Lens Focus Range:The lens has a wide focus range, providing clear images from near to far, adapting to various shooting distances.
Lens Focal Length:The focal length determines the width of the field of view, adapting to different shooting needs. Wide-angle lenses are suitable for large-scale shooting, and telephoto lenses are suitable for capturing details at a distance.
Lens Compatible Pixels:The lens matches the pixels of the camera to ensure image quality, adapt to camera sensors with different pixels, and avoid image blur or distortion.

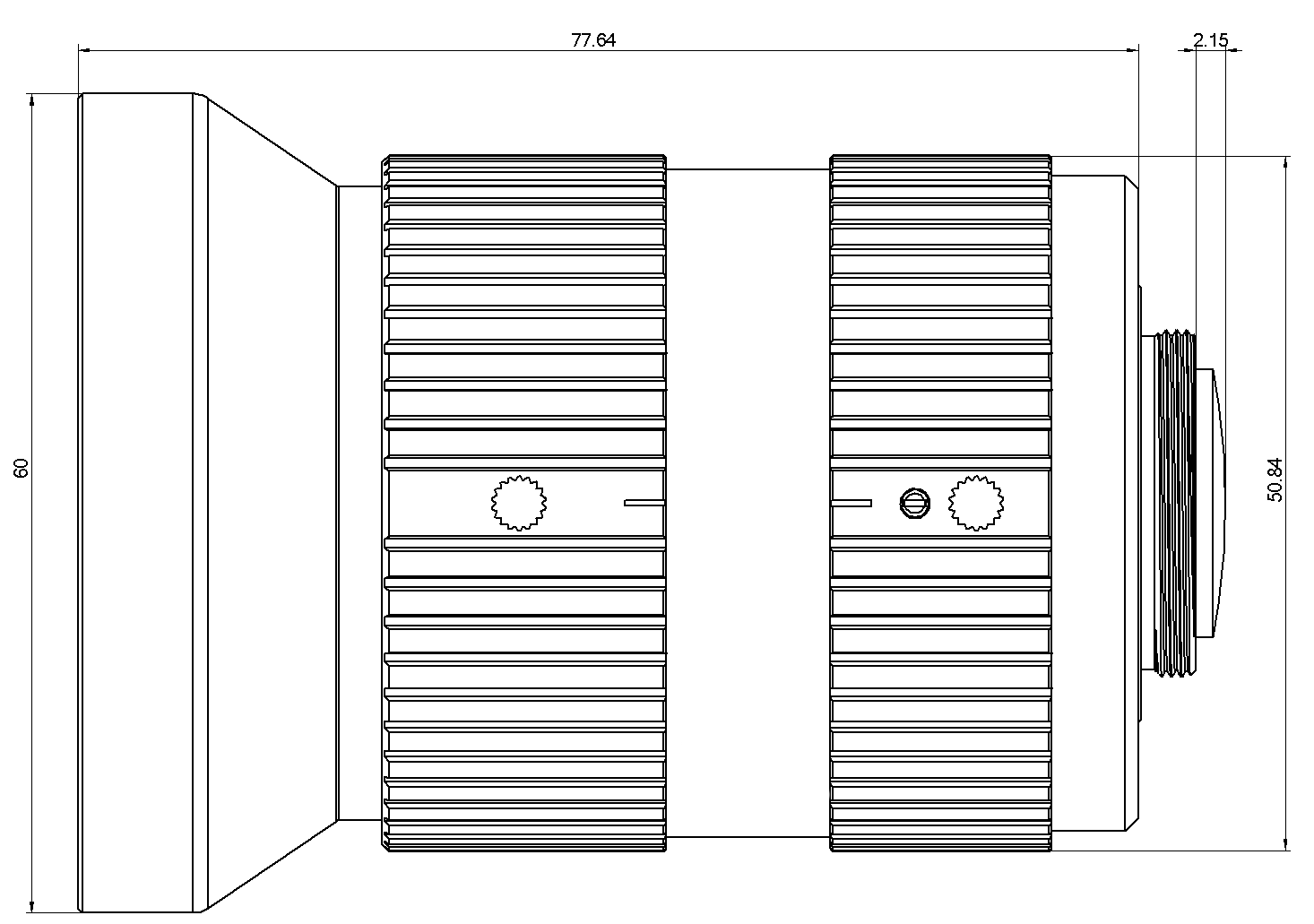

Dimensions

Lens Performance
Lens Aperture:A large aperture allows more light to enter, improving the image brightness in low-light environments and ensuring clear and detailed images.
Lens Illumination:High relative illumination enhances image brightness and keeps images clear in low-light or complex lighting environments, suitable for scenes with insufficient light.
Lens Focus Range:The lens has a wide focus range, providing clear images from near to far, adapting to various shooting distances.
Lens Focal Length:The focal length determines the width of the field of view, adapting to different shooting needs. Wide-angle lenses are suitable for large-scale shooting, and telephoto lenses are suitable for capturing details at a distance.
Lens Compatible Pixels:The lens matches the pixels of the camera to ensure image quality, adapt to camera sensors with different pixels, and avoid image blur or distortion.
Dimensions

| Model | ZX-SF0814T |
| Focal length | 8 mm |
| Maximum target size | 1.1” |
| Pixel level | 20MP |
| Aperture range (F number) | 1.4-16 |
| Aperture control | Manual |
| Focus range | 0.1m to ∞ |
| Focus control | Manual |
| Field of view (DxH) | 84.8°×68° |
| TV distortion (%) | <5.5 |
| Filter thread | / |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ60×77.8±2 |
| Weight (g) | 362.5 |
| Operating temperature (℃) | -10~50 |
| Model | ZX-SF0814T |
| Focal length | 8 mm |
| Maximum target size | 1.1” |
| Pixel level | 20MP |
| Aperture range (F number) | 1.4-16 |
| Aperture control | Manual |
| Focus range | 0.1m to ∞ |
| Focus control | Manual |
| Field of view (DxH) | 84.8°×68° |
| TV distortion (%) | <5.5 |
| Filter thread | / |
| Interface | C-mount |
| Flange distance (mm) | 17.526 |
| Dimensions (DxL) (mm) | φ60×77.8±2 |
| Weight (g) | 362.5 |
| Operating temperature (℃) | -10~50 |
