ZX-SF0619B
Lomosen
2/3 inch
1.9
0.1m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
Supports 5MP pixel cameras and adapts to targets up to 2/3 inches
Designed for 5 megapixel imaging needs, compatible with 2/3-inch and below target cameras, providing excellent high-definition imaging performance and meeting the high standards of machine vision applications.
Multi-focal length selection and adjustable aperture
The lens provides a variety of focal length options to flexibly respond to different shooting needs. It is also equipped with an adjustable aperture design to easily adapt to a variety of lighting environments and complex application scenarios.
High-definition imaging and low distortion performance
It has high-resolution and high-contrast imaging performance, and adopts a low-distortion design to ensure clear and sharp images and true details, which is particularly suitable for demanding industrial inspection and visual tasks.
Strict testing to ensure stable quality
Each lens has passed strict quality inspections to ensure stable and consistent product performance, providing customers with trustworthy high-quality options.

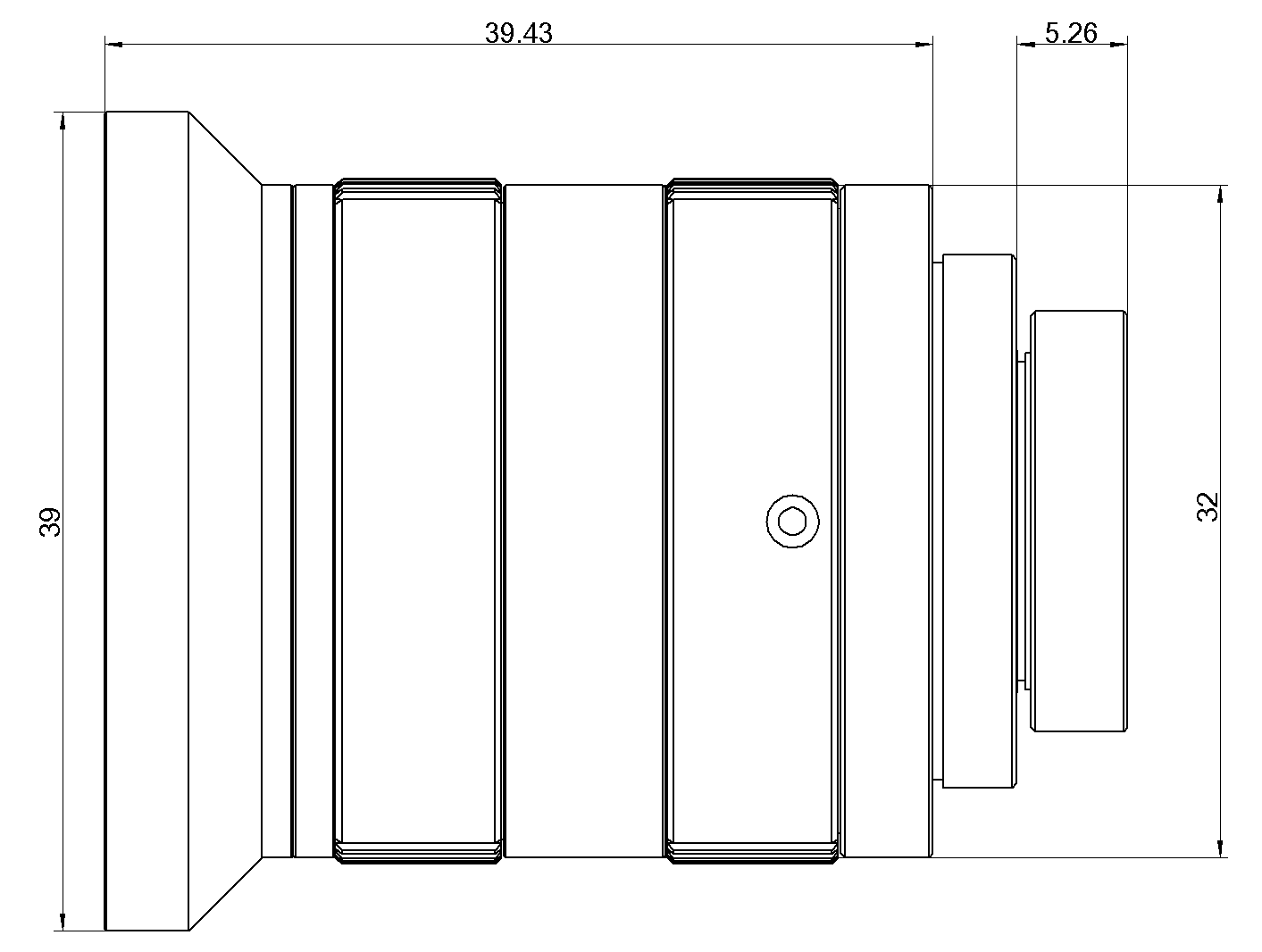

Dimensions
Supports 5MP pixel cameras and adapts to targets up to 2/3 inches
Designed for 5 megapixel imaging needs, compatible with 2/3-inch and below target cameras, providing excellent high-definition imaging performance and meeting the high standards of machine vision applications.
Multi-focal length selection and adjustable aperture
The lens provides a variety of focal length options to flexibly respond to different shooting needs. It is also equipped with an adjustable aperture design to easily adapt to a variety of lighting environments and complex application scenarios.
High-definition imaging and low distortion performance
It has high-resolution and high-contrast imaging performance, and adopts a low-distortion design to ensure clear and sharp images and true details, which is particularly suitable for demanding industrial inspection and visual tasks.
Strict testing to ensure stable quality
Each lens has passed strict quality inspections to ensure stable and consistent product performance, providing customers with trustworthy high-quality options.
Dimensions
Model | ZX-SF0619B |
Focal length | 6 mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.9 |
Aperture control | Manual |
Focus range | 100 mm-∞ |
Focus control | Manual |
Field of view (DxH) | 71.5×61.4 |
TV distortion (%) | -1.7 |
Filter thread | M37.0×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ39.0×39.43 |
Weight (g) | 80g |
Operating temperature (℃) | -10~50 |
Model | ZX-SF0619B |
Focal length | 6 mm |
Maximum image size | 2/3 inch |
Pixel level | 5MP |
Aperture range (F number) | 1.9 |
Aperture control | Manual |
Focus range | 100 mm-∞ |
Focus control | Manual |
Field of view (DxH) | 71.5×61.4 |
TV distortion (%) | -1.7 |
Filter thread | M37.0×P0.5 |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | Φ39.0×39.43 |
Weight (g) | 80g |
Operating temperature (℃) | -10~50 |
