ZX-SF0618T
Lomosen
1.1‘’ inch
1.8-16
0.1m-∞
C-mount
Availability: | |
---|---|
Quantity: | |
Product Advantages
Excellent low-light performance: The large aperture and high relative illumination design enable the lens to provide bright and clear images in low-light environments, ensuring image quality under complex lighting conditions.
Wide focal length and flexible focus range: A wide focus range from 100mm to infinity adapts to different shooting distances, ensuring accurate and clear imaging for both detail capture and long-distance shooting.
Diverse focal length options: The focal length range from 6mm to 50mm allows the lens to be flexibly switched according to needs, meeting different needs for wide-angle field of view and detail presentation, greatly improving the adaptability of application scenarios.
High-resolution support: Designed for high-pixel cameras, the lens is paired with industrial cameras to maximize sensor performance and ensure that every detail can be accurately captured.

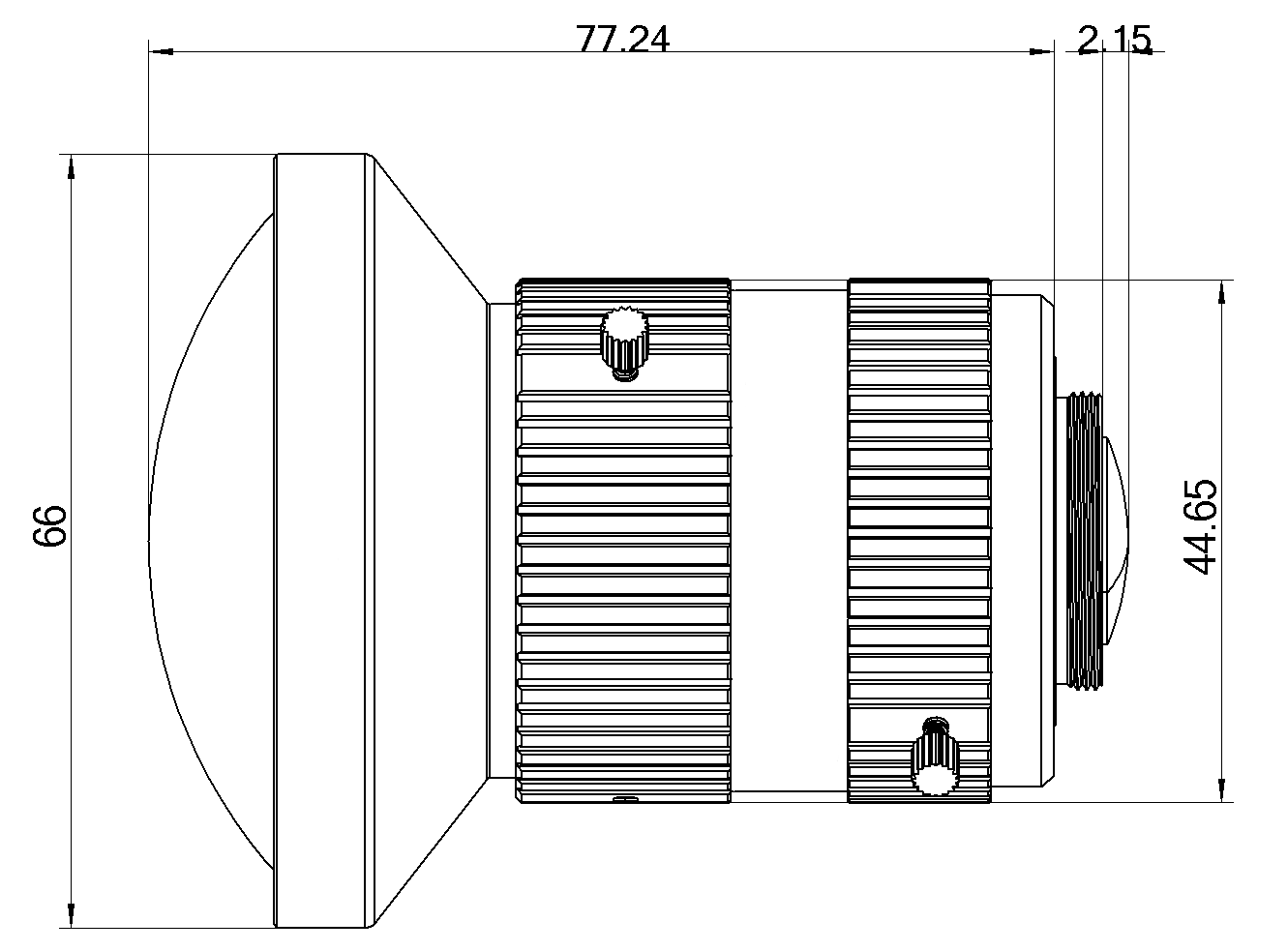

Dimensions
Product Advantages
Excellent low-light performance: The large aperture and high relative illumination design enable the lens to provide bright and clear images in low-light environments, ensuring image quality under complex lighting conditions.
Wide focal length and flexible focus range: A wide focus range from 100mm to infinity adapts to different shooting distances, ensuring accurate and clear imaging for both detail capture and long-distance shooting.
Diverse focal length options: The focal length range from 6mm to 50mm allows the lens to be flexibly switched according to needs, meeting different needs for wide-angle field of view and detail presentation, greatly improving the adaptability of application scenarios.
High-resolution support: Designed for high-pixel cameras, the lens is paired with industrial cameras to maximize sensor performance and ensure that every detail can be accurately captured.
Dimensions
Model | SF0618T type |
Focal length | 6 mm |
Maximum target size | 1.1” |
Pixel level | 20MP |
Aperture range (F number) | 1.8-16 |
Aperture control | Manual |
Focus range | 0.1m to ∞ |
Focus control | Manual |
Field of view (DxH) | 104.9°×86.2° |
TV distortion (%) | <2.5 |
Filter thread | / |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ66×65.8±3 |
Weight (g) | 349.4 |
Operating temperature (℃) | -10~50 |
Model | SF0618T type |
Focal length | 6 mm |
Maximum target size | 1.1” |
Pixel level | 20MP |
Aperture range (F number) | 1.8-16 |
Aperture control | Manual |
Focus range | 0.1m to ∞ |
Focus control | Manual |
Field of view (DxH) | 104.9°×86.2° |
TV distortion (%) | <2.5 |
Filter thread | / |
Interface | C-mount |
Flange distance (mm) | 17.526 |
Dimensions (DxL) (mm) | φ66×65.8±3 |
Weight (g) | 349.4 |
Operating temperature (℃) | -10~50 |
