ZX-5M10110
Lomosen
5MP
-
2/3″
F7
＜0.05
1.0
C-Mount
110mm
| Quantity: | |
|---|---|

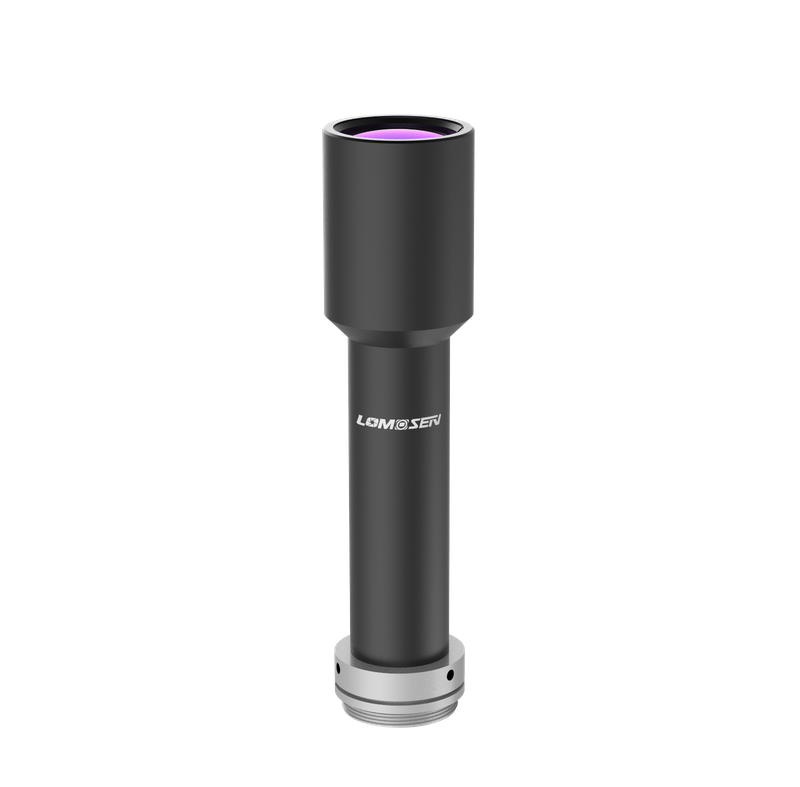

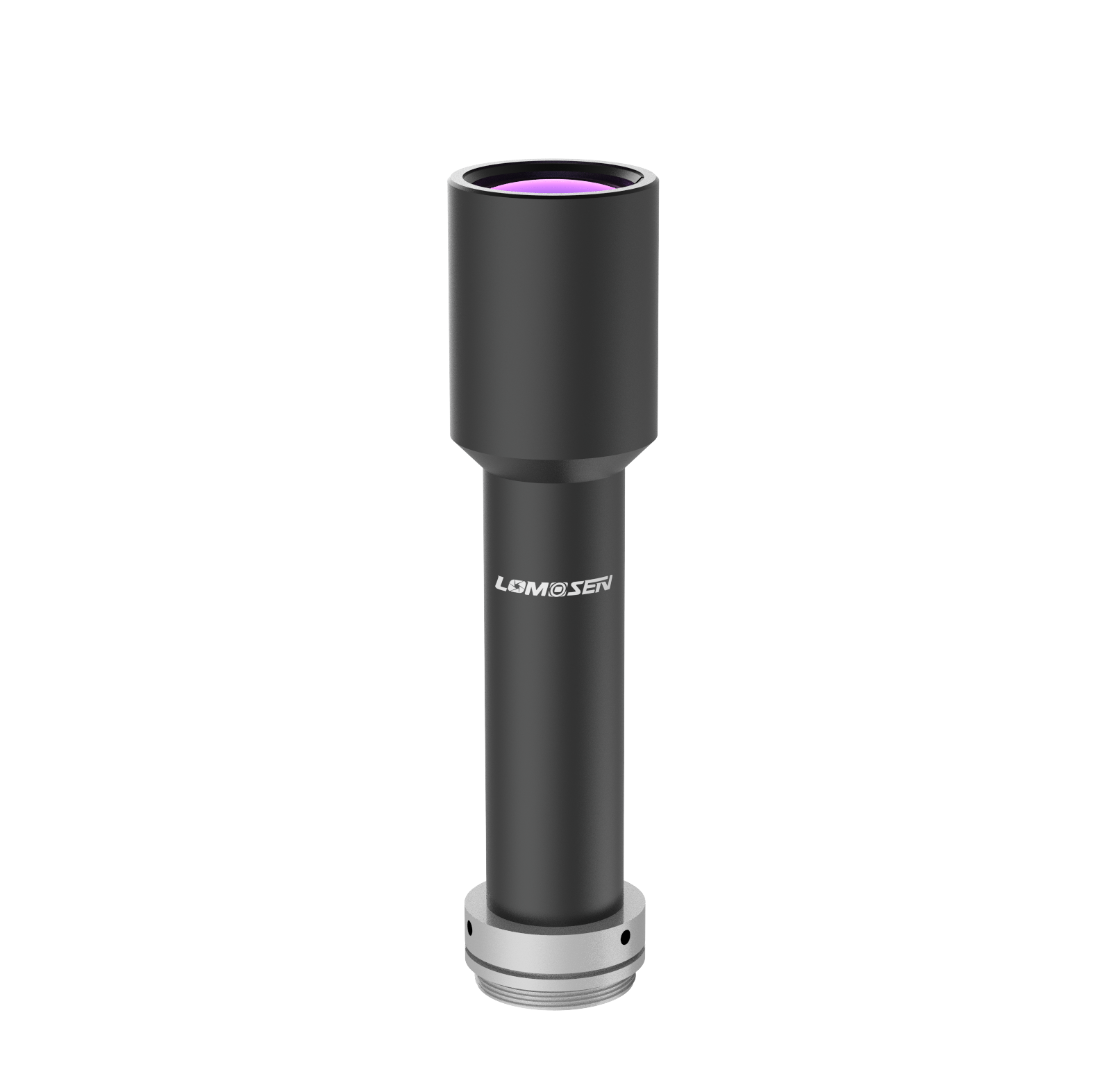

The ZX-5M10110 telecentric industrial lens is a telecentric optical lens designed for high-precision inspection and measurement applications, suitable for machine vision scenarios with extremely high requirements for image size consistency and edge sharpness. This lens employs a telecentric imaging structure, effectively eliminating perspective errors and ensuring that the measured object maintains a stable and consistent imaging ratio at different height positions, providing a reliable optical foundation for high-precision measurement.
The product uses a fixed magnification of 1.0X, which can realistically reproduce the dimensional details of the measured object, achieving proportional imaging. It is particularly suitable for the inspection and analysis of microstructures, precision parts, and critical dimensions. The 110mm working distance ensures imaging accuracy while providing reasonable space for system installation and light source configuration, facilitating integration into automated inspection equipment.
Meanwhile, the 1.2mm effective depth of field gives the ZX-5M10110 extremely high imaging sharpness within its focusing range, which is beneficial for acquiring sharp edge contours and detail information, thereby improving the accuracy of dimensional measurement and defect identification.
The ZX-5M10110 is widely applicable to semiconductor and electronic component inspection, precision dimensional measurement, microstructure appearance inspection, precision assembly alignment, and high-precision automated vision systems. It is a telecentric lens solution focused on high-precision applications.
