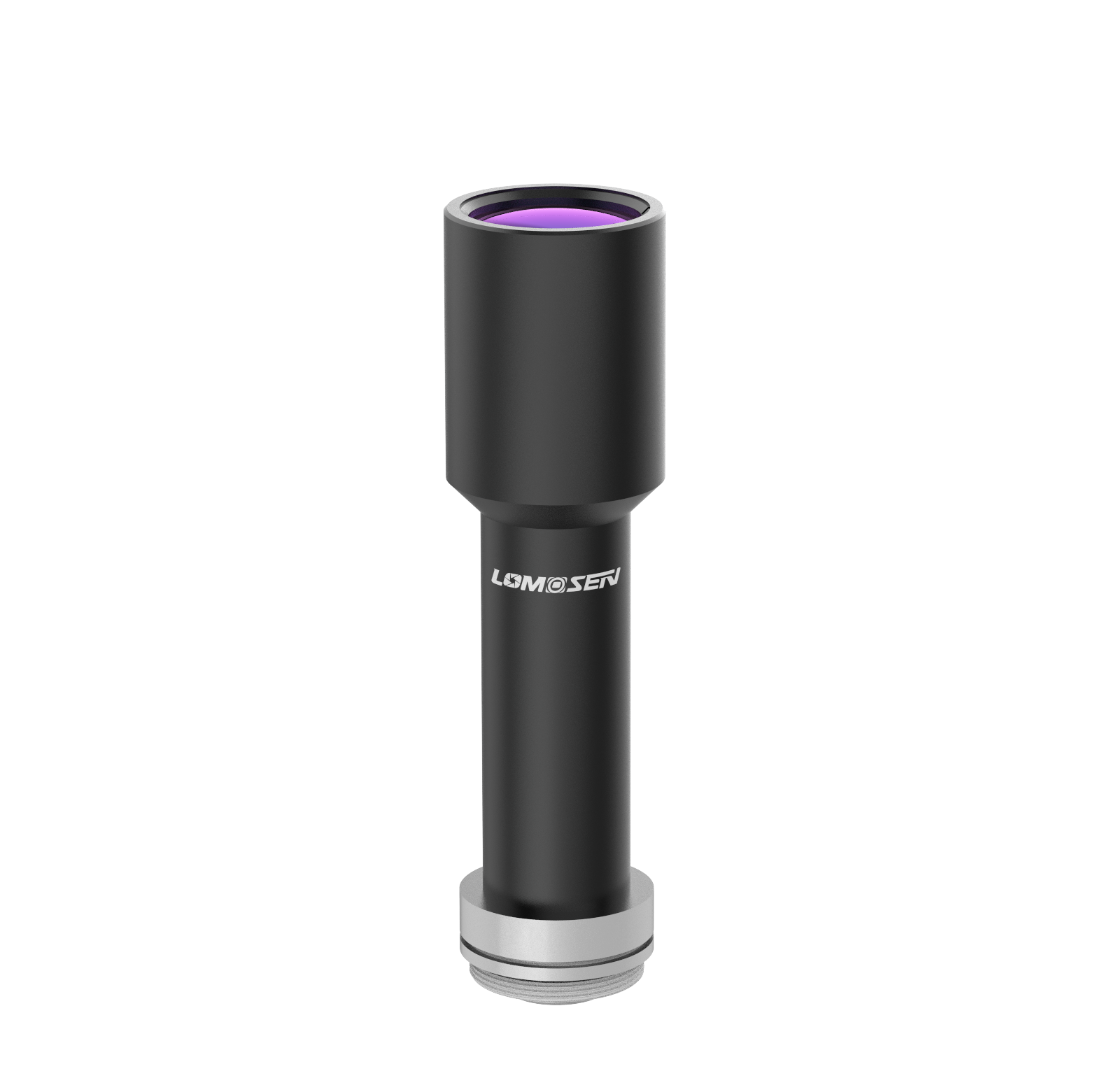

ZX-5M07110
Lomosen
5MP
-
2/3″
F10
＜0.15
0.7
C-Mount
110mm
| Quantity: | |
|---|---|
The ZX-5M07110 telecentric industrial lens utilizes a telecentric optical structure, effectively eliminating perspective errors inherent in traditional lenses. It ensures a constant imaging ratio for the measured object at different heights, providing a reliable optical foundation for precision measurement.
The product features a fixed 0.7X magnification, clearly presenting the edge contours and structural features of the measured object while maintaining a good field of view and detail resolution. Suitable for various precision inspection and positioning applications. The 110mm working distance provides ample space for equipment installation, light source placement, and mechanical structure design, contributing to improved system integration flexibility and stability.
Furthermore, the 2.3mm effective depth of field allows the ZX-5M07110 to maintain clear and stable imaging even with slight height differences or positional fluctuations in the measured object, effectively reducing focusing requirements and improving inspection efficiency and repeatability.
The ZX-5M07110 is widely applicable to machine vision applications such as precision dimension measurement, electronic component inspection, semiconductor and PCB inspection, precision assembly alignment, and automated visual positioning. It is a telecentric lens solution that balances imaging accuracy and system practicality.
