ZX-5M05110
Lomosen
5MP
-
2/3″
F8
＜0.03
0.5
C-Mount
110mm
| Quantity: | |
|---|---|

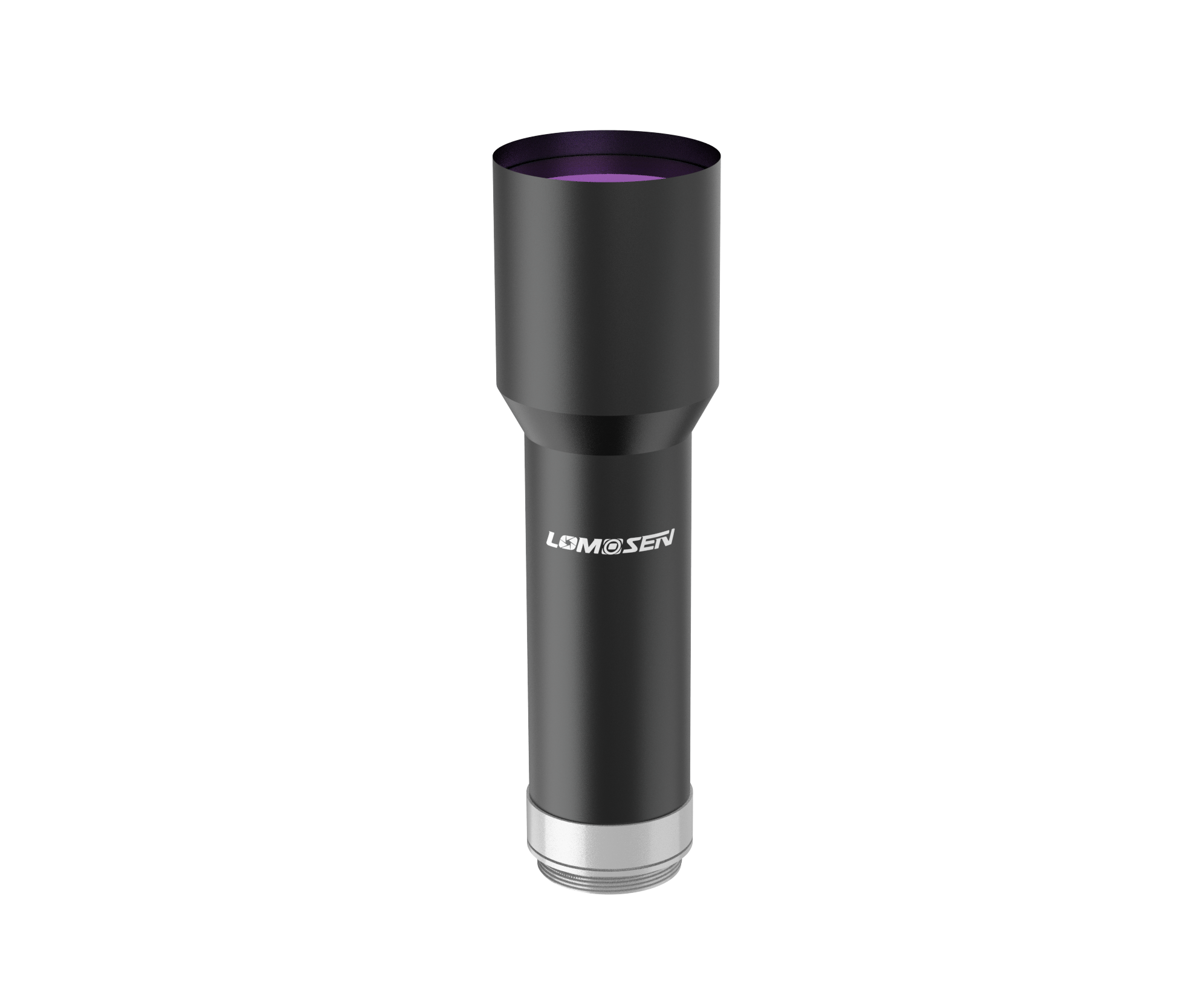

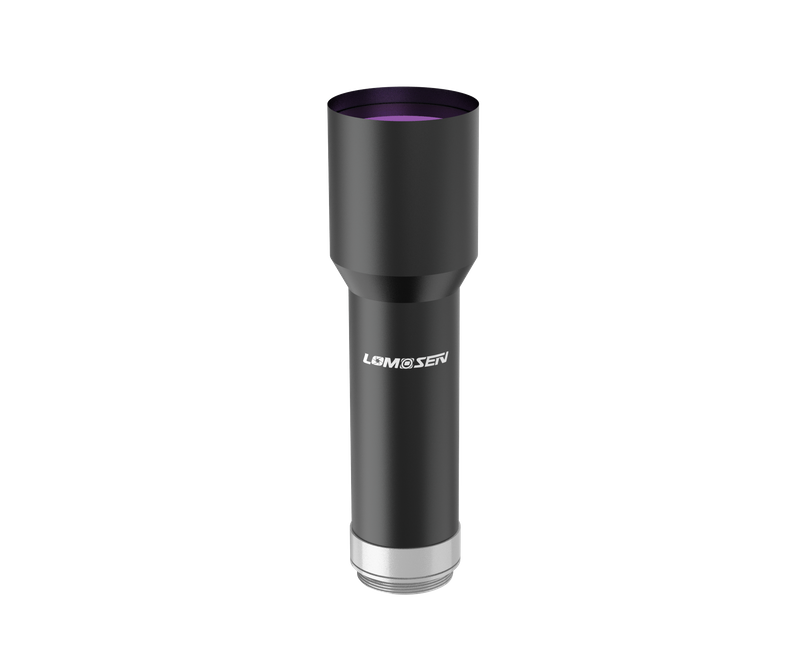

The ZX-5M05110 telecentric industrial lens is a mid-to-low magnification telecentric lens designed specifically for high-precision machine vision inspection and measurement applications. It effectively eliminates perspective errors and magnification variations, ensuring accurate dimensional reproduction of the measured object at different heights, making it an ideal optical component for precision measurement systems.
This lens features a fixed 0.5X magnification, ensuring ample field of view coverage while maintaining detail resolution, making it suitable for inspection scenarios requiring both wide field of view and high measurement accuracy. The 110mm working distance provides ample space for light source installation, mechanical structure layout, and integration with automated equipment, enhancing the flexibility and stability of the overall system design.
Furthermore, the 3.5mm effective depth of field allows the ZX-5M05110 to maintain clear imaging even when the measured object has a certain height difference or slight positional fluctuations, effectively reducing errors and downtime caused by frequent focusing, further improving inspection efficiency and repeatability.
The ZX-5M05110 is widely applicable to machine vision applications such as dimensional measurement, electronic component inspection, PCB and semiconductor inspection, precision assembly positioning, and automated visual alignment. It is a telecentric lens solution that offers a balanced performance in terms of imaging stability, inspection efficiency, and system compatibility.
