ZX-5M018110
Lomosen
5MP
-
2/3″
F6
＜0.007
0.18
C-Mount
110mm
| Quantity: | |
|---|---|

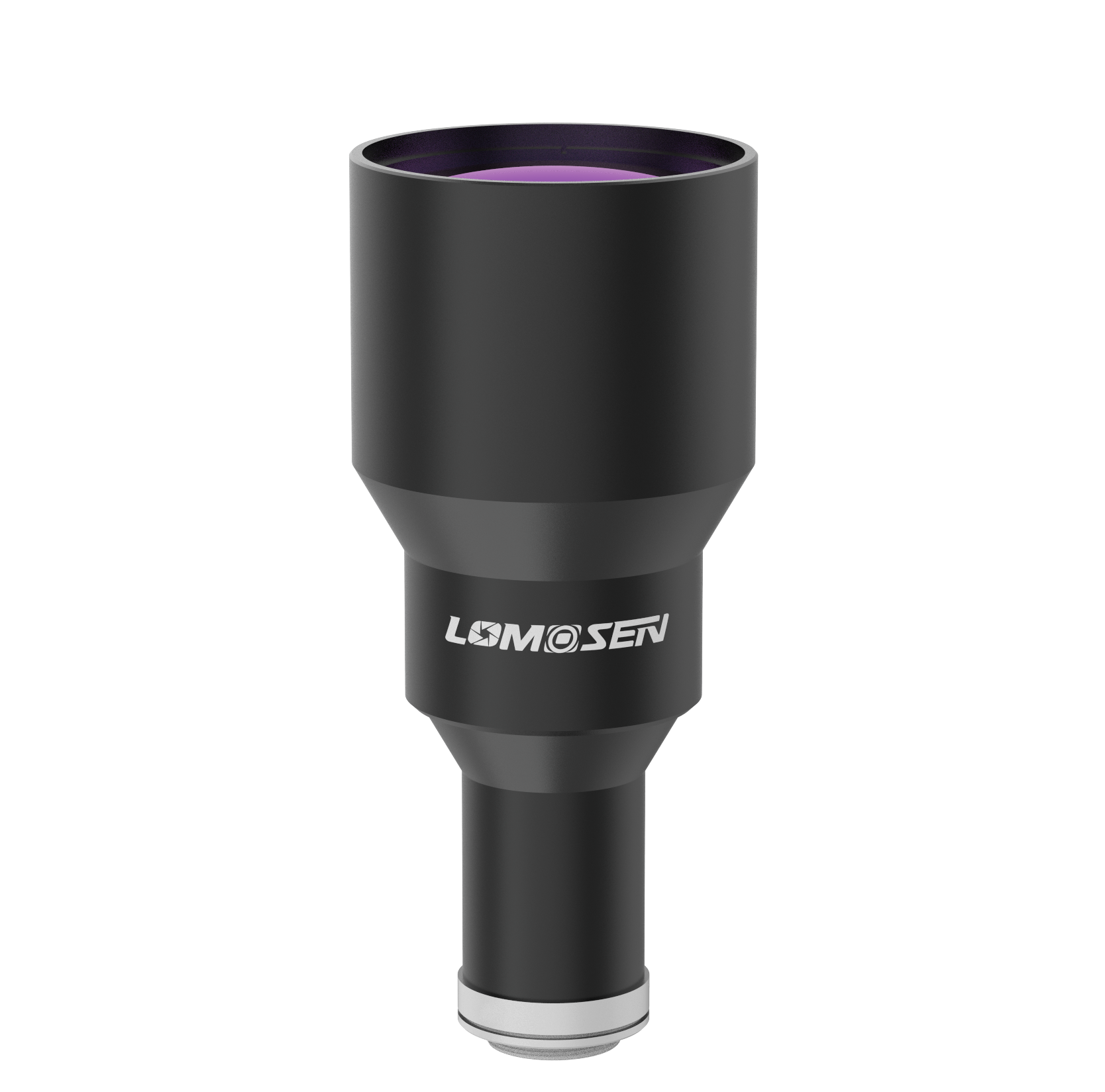

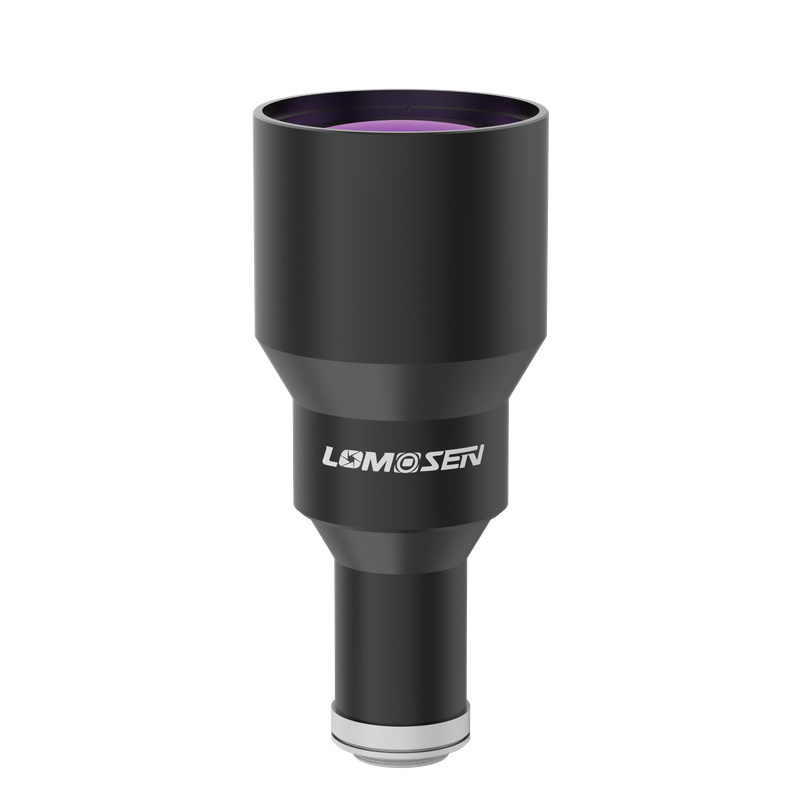

The ZX-5M018110 telecentric industrial lens is a telecentric optical product designed specifically for high-precision machine vision inspection applications. It is suitable for industrial scenarios with stringent requirements for dimensional measurement accuracy and imaging consistency. This lens employs a telecentric imaging structure, effectively eliminating perspective errors and ensuring consistent image size of the measured object at different heights, providing reliable assurance for precision measurements.
This product features a fixed magnification of 0.18X, balancing a wide field of view with detailed rendering while clearly reproducing target contours and edge information, suitable for medium magnification inspection needs. The 110mm working distance provides ample space for equipment installation, light source placement, and mechanical structure design, enhancing system integration flexibility, especially suitable for automated production lines and multi-station inspection environments.
Simultaneously, the 18.4mm effective depth of field allows the ZX-5M018110 to maintain clear and stable imaging even when the measured object has a certain height difference or positional fluctuation, reducing measurement errors caused by focus changes and improving inspection consistency and system stability.
The ZX-5M018110 telecentric industrial lens is a telecentric optical product designed specifically for high-precision machine vision inspection applications. It is suitable for industrial scenarios with stringent requirements for dimensional measurement accuracy and imaging consistency. This lens employs a telecentric imaging structure, effectively eliminating perspective errors and ensuring consistent image size of the measured object at different heights, providing reliable assurance for precision measurements.
This product features a fixed magnification of 0.18X, balancing a wide field of view with detailed rendering while clearly reproducing target contours and edge information, suitable for medium magnification inspection needs. The 110mm working distance provides ample space for equipment installation, light source placement, and mechanical structure design, enhancing system integration flexibility, especially suitable for automated production lines and multi-station inspection environments.
Simultaneously, the 18.4mm effective depth of field allows the ZX-5M018110 to maintain clear and stable imaging even when the measured object has a certain height difference or positional fluctuation, reducing measurement errors caused by focus changes and improving inspection consistency and system stability.
