What is a 2.5D vision system? What kind of inspection capabilities does it offer?

With the advancement of industrial automation and intelligent manufacturing, traditional 2D vision inspection is gradually revealing its limitations in certain complex inspection scenarios. To meet the demand for higher precision and richer information dimensions, Zhixiang Shijue recently launched a 2.5D vision inspection system, providing a more comprehensive and precise solution for industrial inspection.

What is a 2.5D vision system?

A 2.5D vision system is an inspection technology positioned between traditional 2D vision and 3D vision. While capturing planar image information of a target object, it simultaneously extracts a certain degree of height or contour information, thereby enabling a more comprehensive analysis of the object's surface structure. Compared to purely 2D vision inspection, a 2.5D vision system is capable of recognizing a greater number of three-dimensional features; conversely, when compared to the more structurally complex 3D vision systems, it offers greater flexibility in deployment, as well as distinct advantages in terms of system cost and implementation complexity.

In practical industrial inspection scenarios, traditional inspection methods often face significant challenges. For instance, when inspecting highly reflective materials—such as metals, glass, or thin films—conventional 2D vision solutions are susceptible to the effects of glare, making it difficult to reliably detect subtle surface defects. Furthermore, reliance on manual visual inspection is not only inefficient but also prone to missed detections and false positives, rendering it inadequate for meeting the rigorous demands for inspection speed and stability characteristic of modern automated production lines.

By adopting 2.5D vision technology, manufacturers can acquire richer information regarding surface structures while simultaneously maintaining inspection efficiency, thereby significantly enhancing the accuracy and stability of inspections for complex workpieces.

What detection results can be achieved?

This 2.5D vision inspection system utilizes a full-stack, proprietary technology architecture. By integrating a high-speed, programmatically controlled structured-light source, it captures multi-dimensional surface information in a single acquisition cycle, thereby significantly enhancing its capability to recognize complex surface structures. The system is capable of precisely detecting minute defects—such as fine scratches, shallow indentations or protrusions, foreign objects, and surface contamination—even on highly reflective or high-gloss workpieces.

The complete 2.5D vision solution comprises core hardware components including Industrial cameras, specialized light sources, light source controllers, acquisition cards, and industrial PCs. Through the synergistic optimization of both hardware and software, the system delivers stable and highly efficient inspection capabilities.

Leveraging advanced vision imaging technologies and algorithmic support, this 2.5D vision system achieves a wide range of inspection functions in industrial applications, including:

Height Difference Detection: Identifying variations in surface elevation, such as structural features involving protrusions or depressions.

Dimension and Contour Inspection: Precisely measuring product edge contours and geometric dimensions.

Surface Defect Detection: Identifying surface anomalies such as scratches, pits, and physical damage.

Character and Structure Recognition: Reliably recognizing characters and markings even amidst complex surface structures.

Typical Application Cases

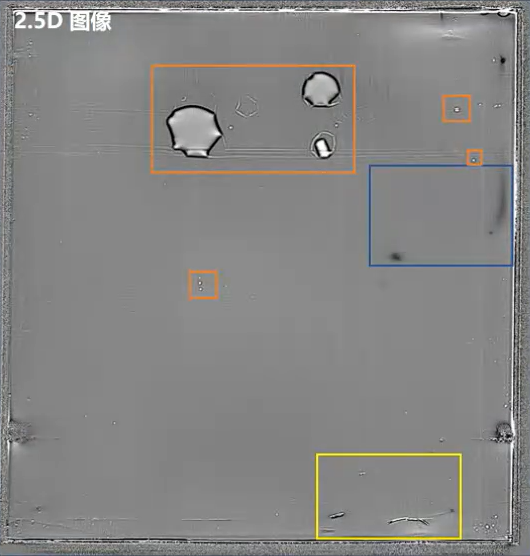

Blue Film Battery Defect Detection

Application Scenario: Detecting surface defects on batteries, such as scratches, bubbles, and irregularities.

Detection Challenges: The specific coloration and highly reflective properties of the blue film surface interfere with traditional machine vision methods.

Detection Performance: A 2.5D vision system effectively mitigates the impact of surface color and reflectivity, enabling the stable detection of even minute defects.

Pouch Cell Battery Defect Detection

Application Scenario: Detecting surface defects on pouch cells, such as scratches and irregularities.

Detection Challenges: The reflectivity and color variations inherent to the film packaging material increase the complexity of the detection process.

Detection Performance: Through the analysis of multi-dimensional imaging data, the system accurately identifies subtle defects, thereby enhancing detection stability and consistency.

As demonstrated by these application scenarios, 2.5D vision systems possess distinct advantages in the field of complex surface inspection, effectively enhancing both the accuracy and efficiency of automated production lines.

These capabilities endow 2.5D vision systems with broad prospects for application across various sectors, including electronics manufacturing, precision component inspection, packaging inspection, and automated production line inspection.

By deeply integrating industrial cameras, optical systems, and vision algorithms, Zhixiang Shijue 2.5D vision inspection system achieves a balance between inspection accuracy and efficiency, providing stable and reliable data support for automated production lines. The system not only enhances the consistency of product inspection but also mitigates the errors and efficiency limitations inherent in manual inspection processes.

Moving forward, Zhixiang Shijue will continue to drive innovation in machine vision technology, consistently introducing inspection solutions with high practical value to empower enterprises in achieving more intelligent and highly efficient production and quality management.
