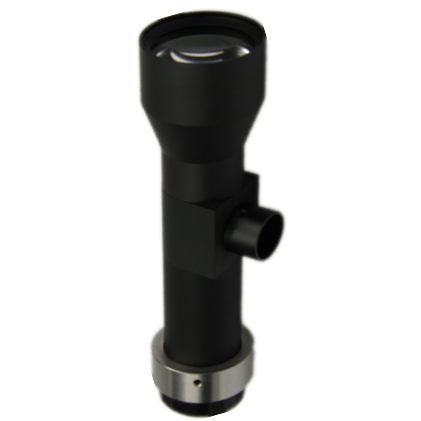

MVL-MY-045-135C-MP

5 0 Reviews

Features

High resolution, high picture clarity and consistency
Low distortion and high telecentricity, more suitable for high-precision measurement and positioning applications
Excellent anti-vibration performance and high and low temperature stability
Support 2/3' camera

Overall dimensions

MVL-MY-045-135C-MP2

Subscribe to our newsletter
Promotions, new products and sales, straight to your inbox

Quick links

Mail: anna@zx-vision.com
Landline: 0755-86967765
Fax: +86-0755-86541875
Mobile: +86-13316429834
WeChat: +86-13316429834

model	model	MVL-MY-045-135C-MP
model	name	135mm working distance, 2/3', 0.45x, with coaxial optical interface
performance	magnification	0.45
	working distance	135±2mm
	F number	F15.8
	Image size	Φ11mm
	optical distortion	≤ 0.1%
	depth of field	6.24mm
	Object resolution	23 μm
	telecentricity	≤ 0.1°
structure	Interface type	C-Mount
	Overall dimensions	Φ34 mm × 123.8 mm
	weight	150 g
	temperature	-10~50°C
	coaxial light	support
General specifications	Certification	RoHS2.0

model	model	MVL-MY-045-135C-MP
model	name	135mm working distance, 2/3', 0.45x, with coaxial optical interface
performance	magnification	0.45
	working distance	135±2mm
	F number	F15.8
	Image size	Φ11mm
	optical distortion	≤ 0.1%
	depth of field	6.24mm
	Object resolution	23 μm
	telecentricity	≤ 0.1°
structure	Interface type	C-Mount
	Overall dimensions	Φ34 mm × 123.8 mm
	weight	150 g
	temperature	-10~50°C
	coaxial light	support
General specifications	Certification	RoHS2.0
