MV-FS8200-91F2M
HIKROBOT
CMOS
8192*2
2LC optical fiber interface
black and white
7 μm
M72*0.75, flange back focus 12 mm; can be transferred to F-mount lens through adapter ring
Features
Rich ISP image processing technology, such as manual adjustment of Gamma correction, flat field correction, LUT, black level adjustment, etc.
Provides high-bandwidth transmission of dual XoF optical ports
Multiple flexible exposure and acquisition methods, support 2-TDI, line frequency up to 200 kHz
Supports bidirectional configurable I/O wiring design, input/output can be flexibly configured
Compact structure design, both front and side panels have mounting holes for flexible installation

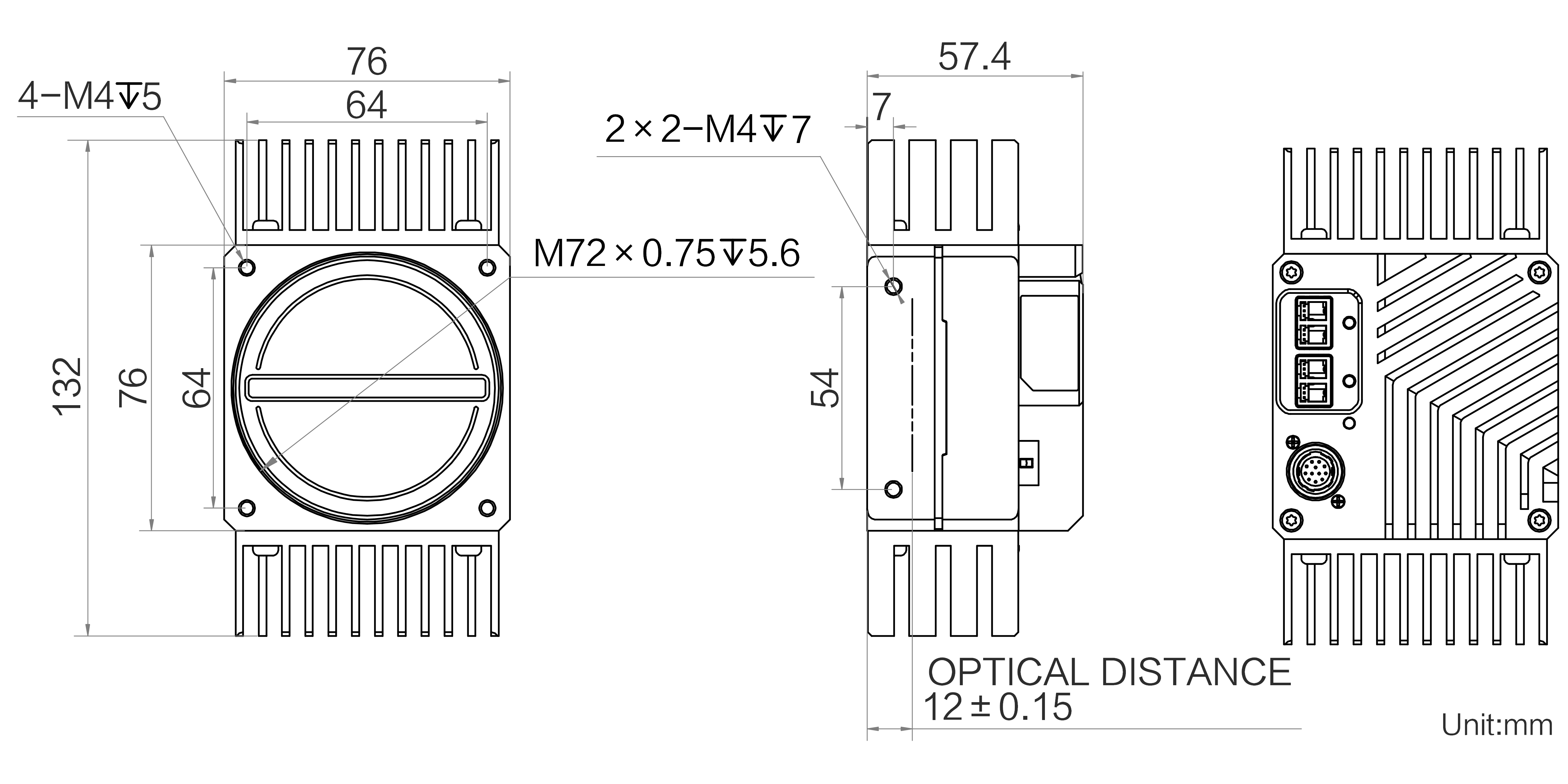

Overall dimensions
Features
Rich ISP image processing technology, such as manual adjustment of Gamma correction, flat field correction, LUT, black level adjustment, etc.
Provides high-bandwidth transmission of dual XoF optical ports
Multiple flexible exposure and acquisition methods, support 2-TDI, line frequency up to 200 kHz
Supports bidirectional configurable I/O wiring design, input/output can be flexibly configured
Compact structure design, both front and side panels have mounting holes for flexible installation
Overall dimensions
