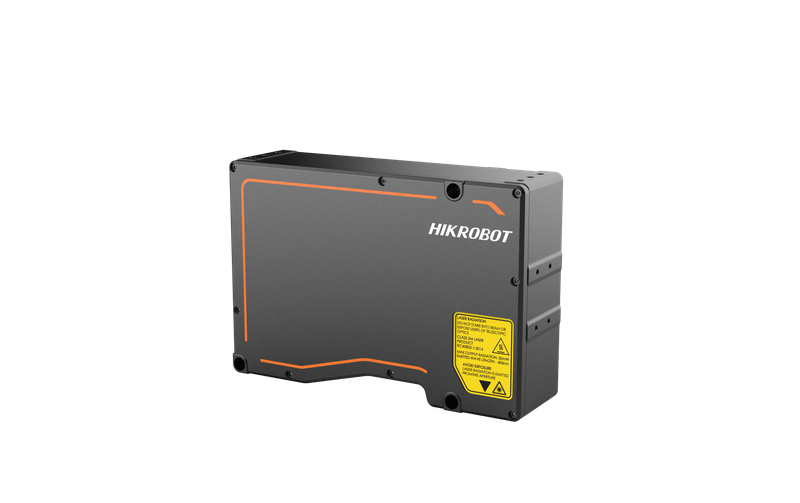

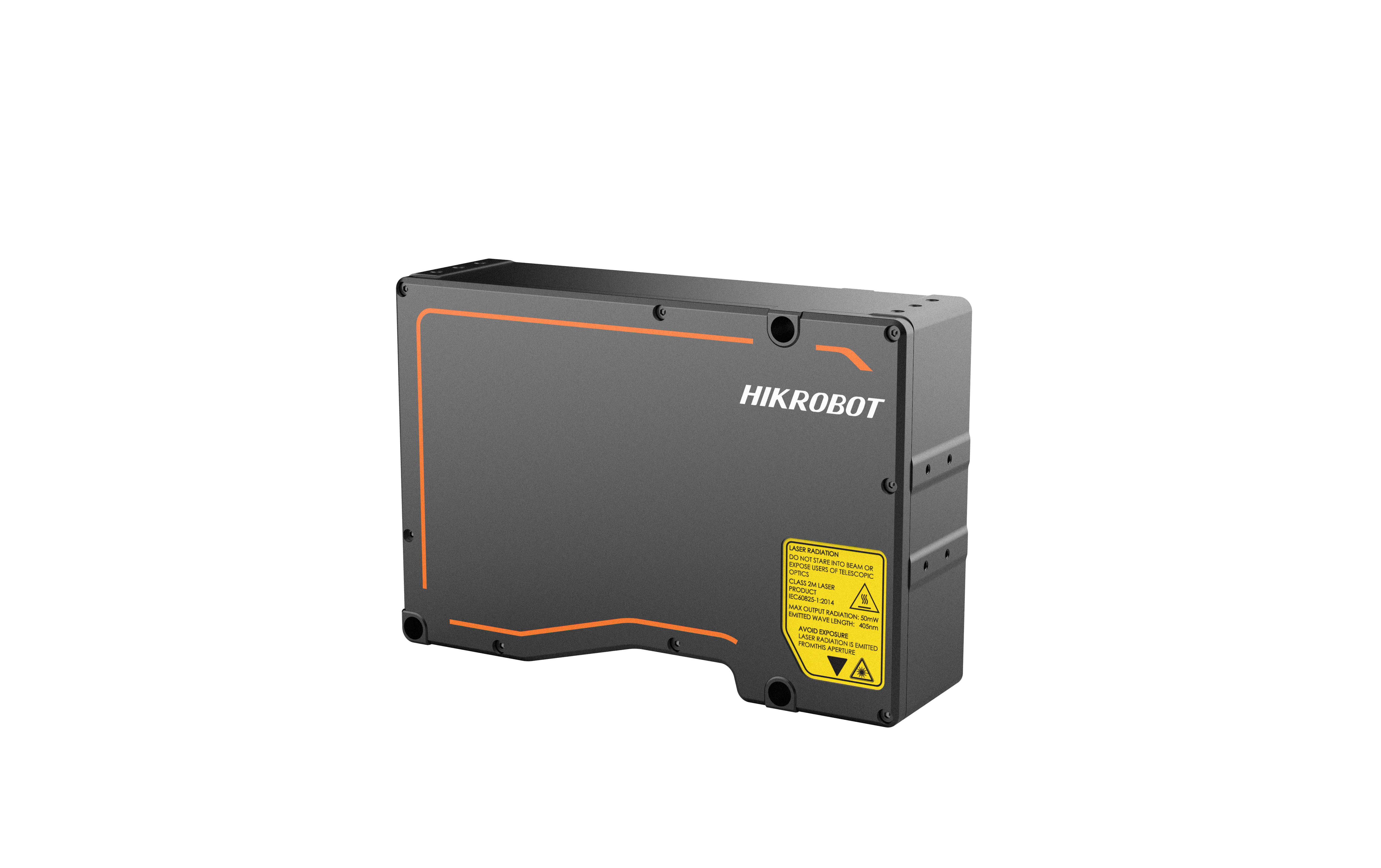

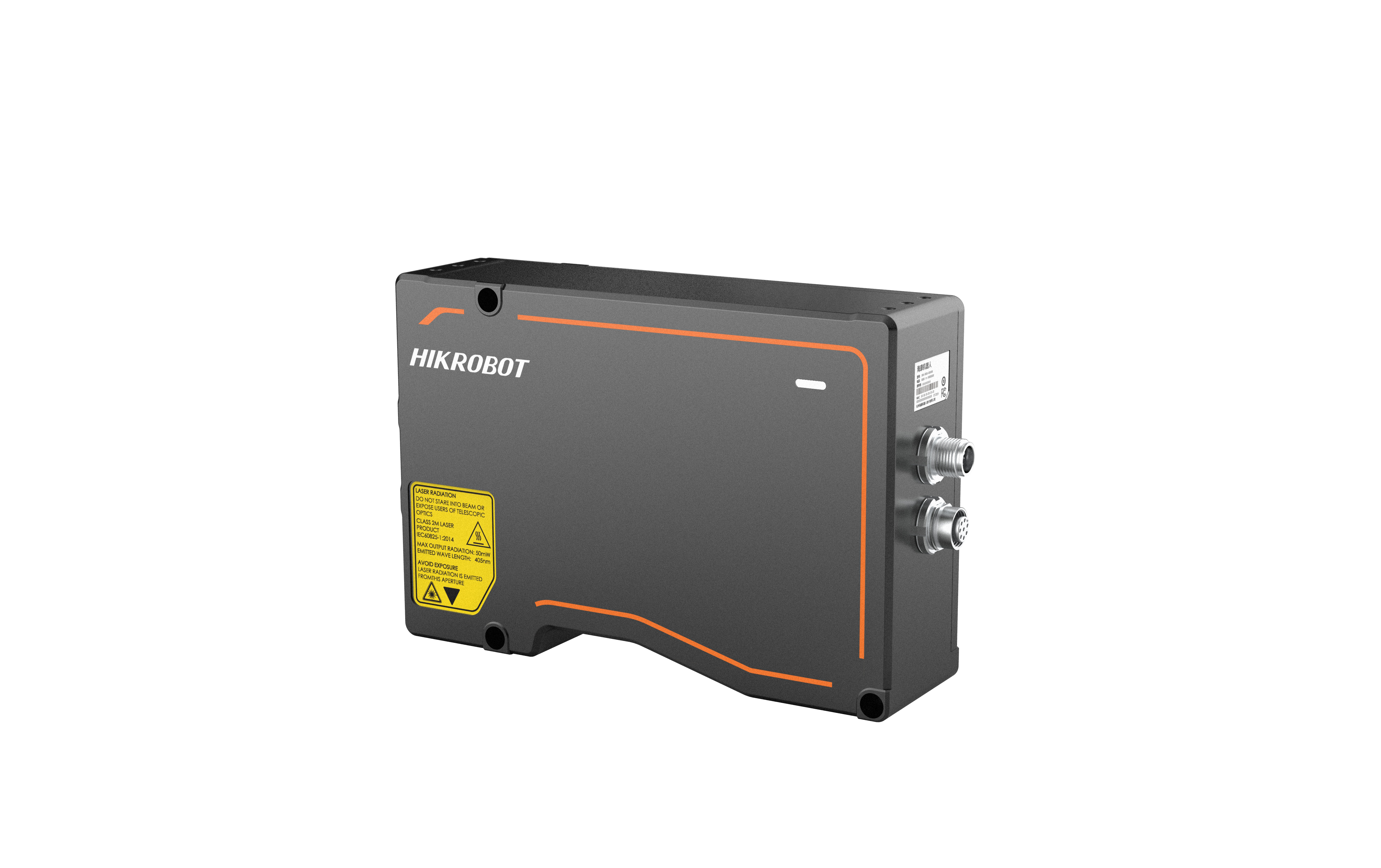

Model:
MV-DP2470-03H
Brand:
HIKROBOT
Data interface:
Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (108Mbit/s)
Frame rate (fps):
700 Hz (at maximum measurement range), up to 10 KHz

Features

Built-in high-precision algorithm, accuracy can reach sub-micron level
High frame rate chip, scanning rate up to 10KHz
Supports multiple exposure modes, more robust
Multi-frame algorithm fusion technology, more complete outlines
Multiple filtering modes are optional, making the data more stable
Supports ROI selection and one-click debugging, making operation more convenient

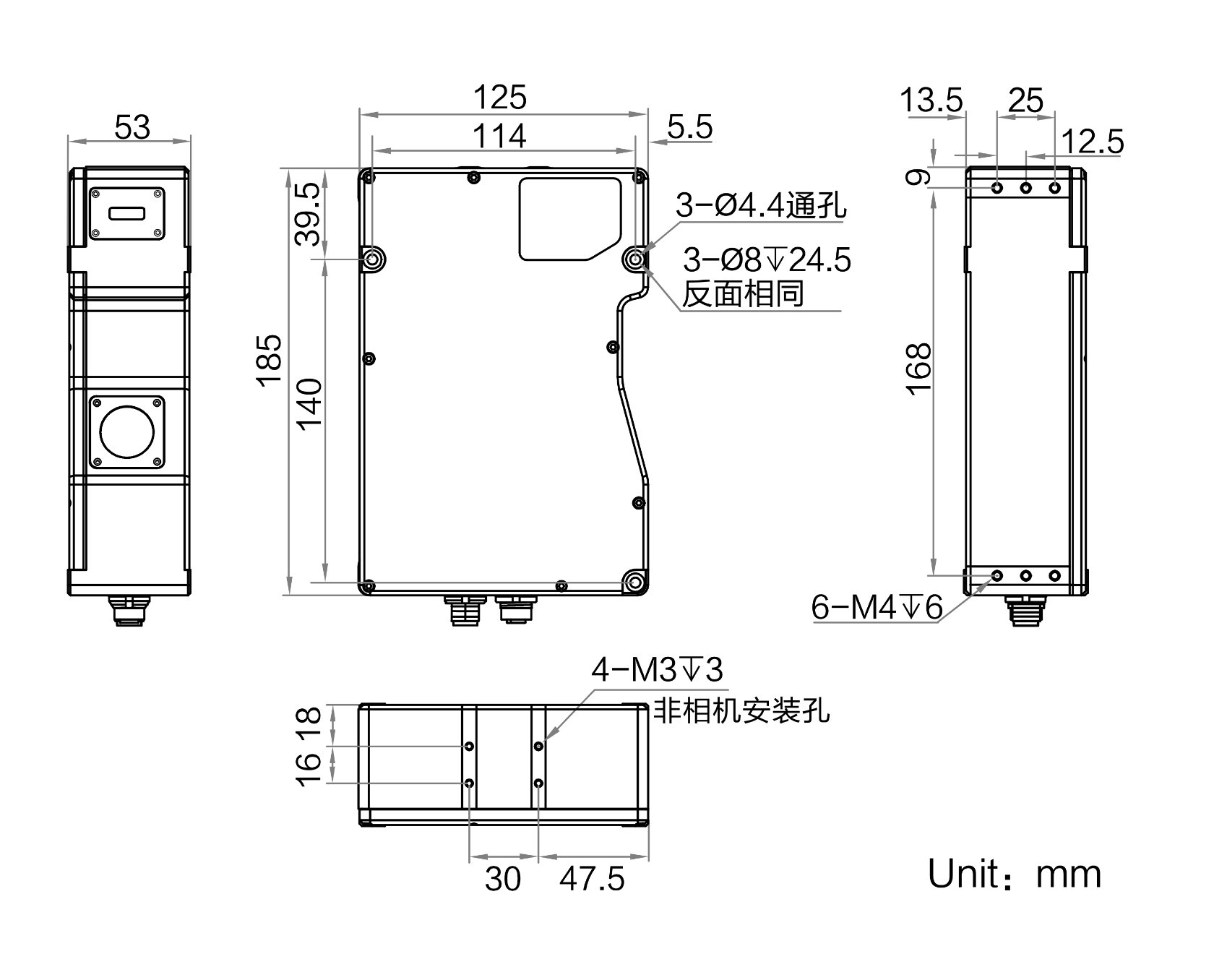

Overall dimensions

MV-DP2470-03H3

model	model	MV-DP2470-03H
model	name	3D laser profile sensor
performance	single contour points	2048
	reference distance	470mm
	Z-axis measuring range	500 mm
	X-axis measuring range	280 mm@reference distance; 130 mm@proximal; 450 mm@far end
	Z-axis resolution	15.74 ~ 136.35 μm
	Z-axis repeatability	Data of 2.0 μm@ sensor testing standard gauge block on optical platform
	Z-axis linearity (±% of MR)	0.01
	Contour data interval	64.4 ~ 185.5 μm
	Scan frame rate	700 Hz (at maximum measurement range), up to 10 KHz
	Data output type	Original image, contour data, depth map, brightness map
	trigger mode	Soft trigger, hard trigger (differential encoder trigger)
	Laser wavelength	650nm
	Laser safety level	Class3R
Electrical characteristics	Data interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
	Digital I/O	12-pin M12 interface provides power supply and I/O, 3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232
	powered by	12 ~ 24 VDC
	Typical power consumption	12W@12VDC
structure	Overall dimensions	185mm×125mm×53mm
	weight	About 1210g
	IP protection level	IP67
	temperature	Working temperature 0 ~ 45°C, storage temperature -30 ~ 80°C
	humidity	20%~85%RH no condensation
General specifications	software	3DMVS
General specifications	operating system	Windows 7/10/11 32/64bits (8G memory, i5 processor)

model	model	MV-DP2470-03H
model	name	3D laser profile sensor
performance	single contour points	2048
	reference distance	470mm
	Z-axis measuring range	500 mm
	X-axis measuring range	280 mm@reference distance; 130 mm@proximal; 450 mm@far end
	Z-axis resolution	15.74 ~ 136.35 μm
	Z-axis repeatability	Data of 2.0 μm@ sensor testing standard gauge block on optical platform
	Z-axis linearity (±% of MR)	0.01
	Contour data interval	64.4 ~ 185.5 μm
	Scan frame rate	700 Hz (at maximum measurement range), up to 10 KHz
	Data output type	Original image, contour data, depth map, brightness map
	trigger mode	Soft trigger, hard trigger (differential encoder trigger)
	Laser wavelength	650nm
	Laser safety level	Class3R
Electrical characteristics	Data interface	Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s)
	Digital I/O	12-pin M12 interface provides power supply and I/O, 3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232
	powered by	12 ~ 24 VDC
	Typical power consumption	12W@12VDC
structure	Overall dimensions	185mm×125mm×53mm
	weight	About 1210g
	IP protection level	IP67
	temperature	Working temperature 0 ~ 45°C, storage temperature -30 ~ 80°C
	humidity	20%~85%RH no condensation
General specifications	software	3DMVS
General specifications	operating system	Windows 7/10/11 32/64bits (8G memory, i5 processor)
