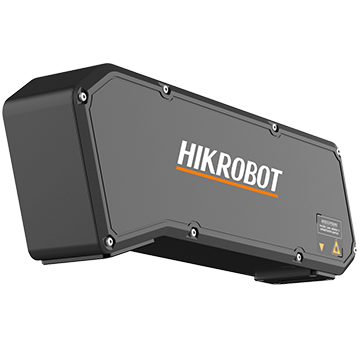

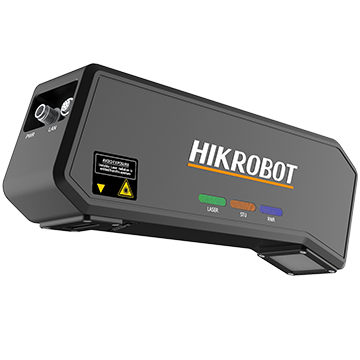

MV-DL2125-04H-R

5 0 Reviews

Features

Wide dynamic algorithm, more accurate measurement of high reflection/high absorption materials
Optimized efficiency, supporting up to 3m/s
Sub-pixel technology, accuracy up to 5mm
High power laser module with wider dynamic range
Narrowband filter, stronger anti-interference ability
Precise exposure synchronization, more stable performance
Supports volume (length, width, height, integrated volume), point cloud, and top surface coordinate output

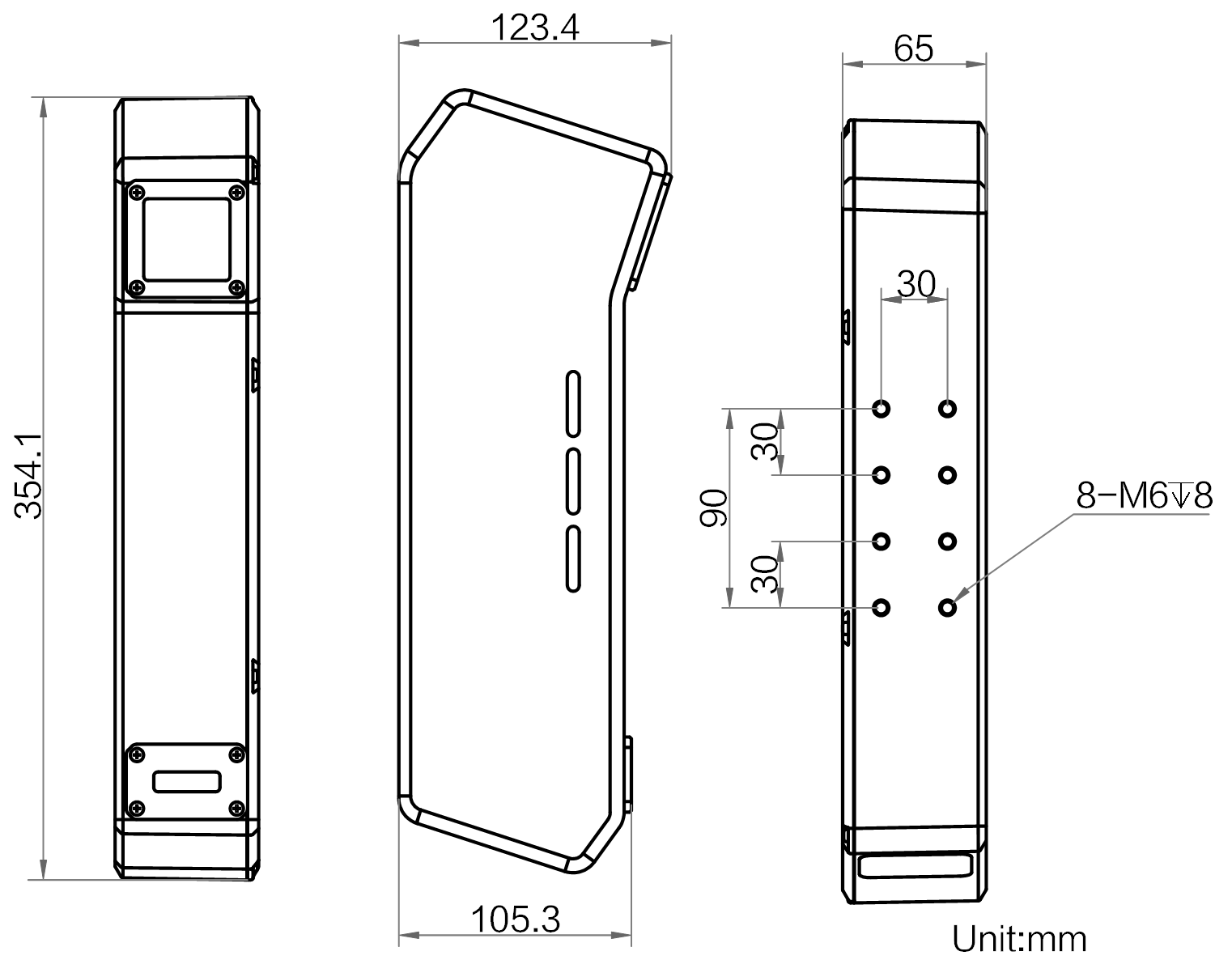

Overall dimensions

MV-DL2125-04H-R3

model	model	MV-DL2125-04H-R
model	name	Line laser stereo camera
performance	near field of view	1000mm
	far field of view	2600mm
	Clear distance (CD)	700 mm
	Measuring range (MR)	1000mm
	Detection accuracy	± 5 mm (regular parts)
	Detection speed	3 m/s@± 5 mm detection accuracy
	Scan frame rate	600 fps@1 m3 measurement range
	data type	Point cloud, length, width and height dimensions, integrated volume, top surface coordinates, depth map
	trigger mode	External trigger, encoder trigger (supports up to 15 KHz trigger signal access)
	Laser safety level	Class 3B
Electrical characteristics	Data interface	Gigabit Ethernet (1000 Mbit/s)
	Digital I/O	12-pin M12 interface provides I/O, including 3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7), and 1 RS-232 serial port
	powered by	12 ~ 24 VDC
	Typical power consumption	10.0W@12VDC
structure	Overall dimensions	354.1 mm × 65 mm × 123.4 mm
	weight	1.6kg
	temperature	Working temperature 0~45°C, storage temperature -30~80°C
	humidity	20%~85%RH no condensation
General specifications	software	3DMVS, CodePlatom
	operating system	Windows 7/10/11 32/64bits
	Certification	CE

model	model	MV-DL2125-04H-R
model	name	Line laser stereo camera
performance	near field of view	1000mm
	far field of view	2600mm
	Clear distance (CD)	700 mm
	Measuring range (MR)	1000mm
	Detection accuracy	± 5 mm (regular parts)
	Detection speed	3 m/s@± 5 mm detection accuracy
	Scan frame rate	600 fps@1 m3 measurement range
	data type	Point cloud, length, width and height dimensions, integrated volume, top surface coordinates, depth map
	trigger mode	External trigger, encoder trigger (supports up to 15 KHz trigger signal access)
	Laser safety level	Class 3B
Electrical characteristics	Data interface	Gigabit Ethernet (1000 Mbit/s)
	Digital I/O	12-pin M12 interface provides I/O, including 3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7), and 1 RS-232 serial port
	powered by	12 ~ 24 VDC
	Typical power consumption	10.0W@12VDC
structure	Overall dimensions	354.1 mm × 65 mm × 123.4 mm
	weight	1.6kg
	temperature	Working temperature 0~45°C, storage temperature -30~80°C
	humidity	20%~85%RH no condensation
General specifications	software	3DMVS, CodePlatom
	operating system	Windows 7/10/11 32/64bits
	Certification	CE
