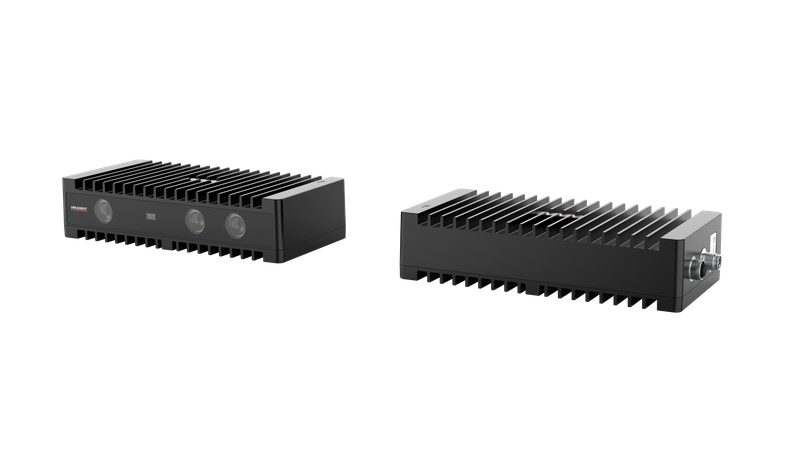

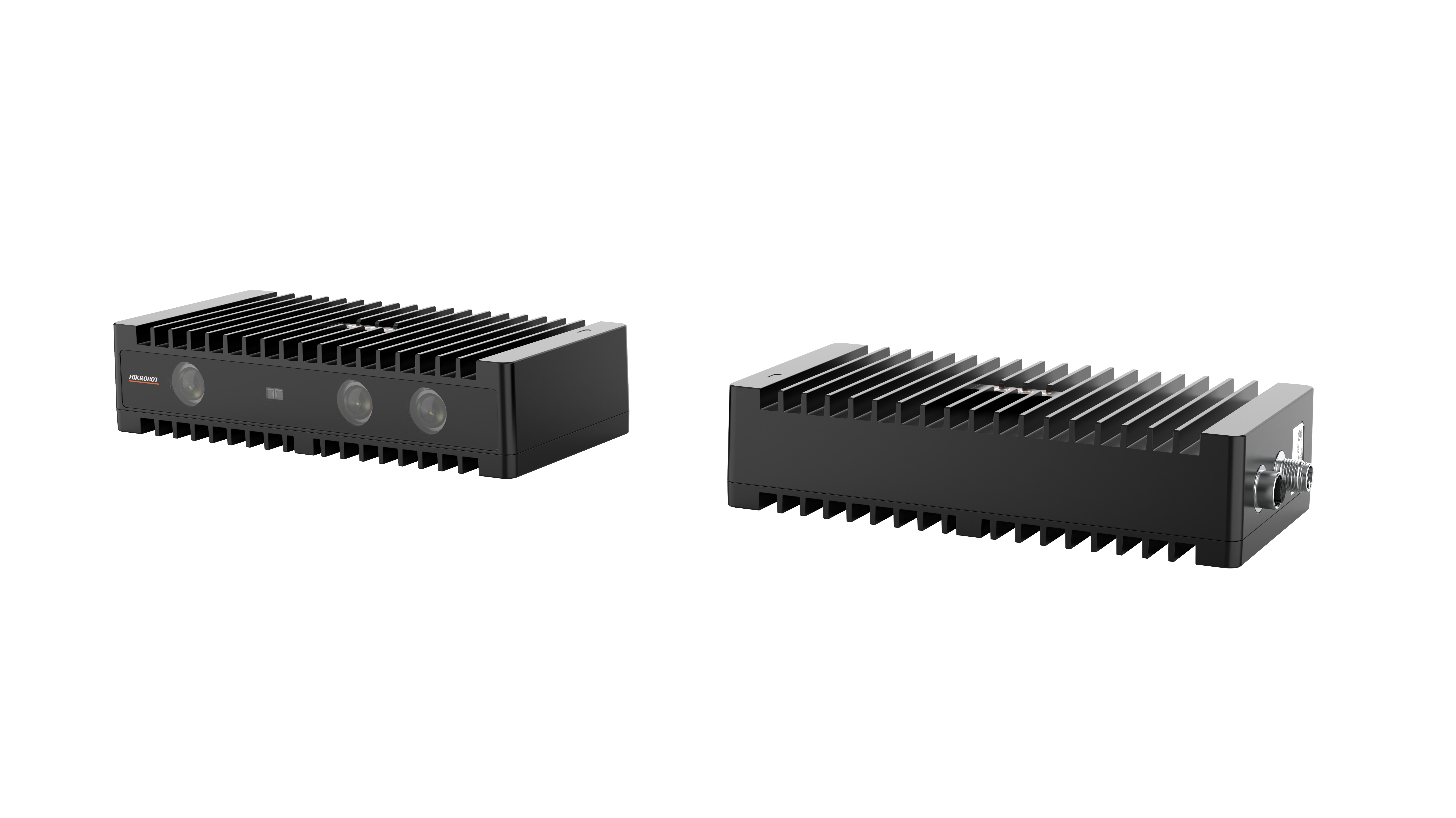

MV-DB700S-C

5 0 Reviews

Features

Suitable for various application scenarios such as empty disk detection, double output detection, position correction, etc.
Built-in deep learning algorithm and 3D image processing algorithm, the results are more accurate
Extra large field of view, suitable for scenes with limited working distance such as cross belts and lower lines
High-energy-efficiency laser module with precise exposure synchronization, wide dynamic range and more stable performance
Equipped with narrow-band filter, stronger anti-interference ability
Internal parameter calibration is completed at the factory, single-camera system calibration is completed with one click, and deployment is easy
IP65 protection level, industrial grade dustproof and waterproof

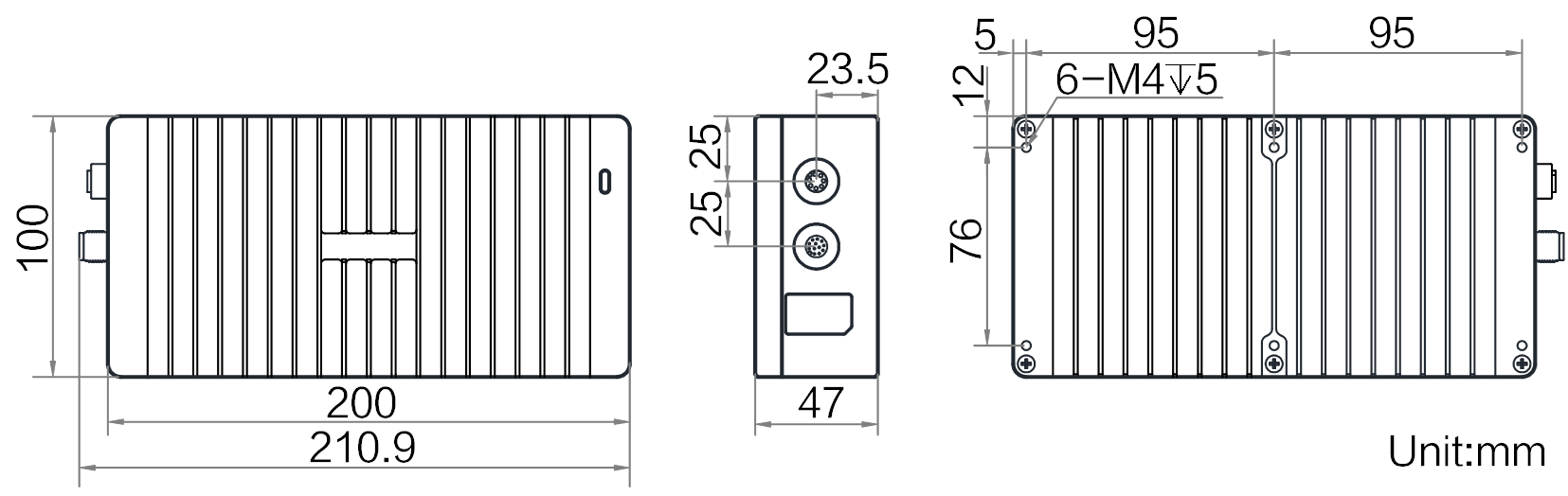

Overall dimensions

MV-DB700S-C2

model	model	MV-DB700S-C
model	name	Single DOE speckle structured light stereo camera (low headroom EDP)
performance	near field of view	595 mm × 460 mm
	far field of view	2255 mm × 1535 mm
	Clear distance (CD)	300mm
	Measuring range (MR)	700mm
	Object detection range	700 mm erection height: 50 mm × 50 mm × 10 mm ~ 450 mm × 450 mm × 200 mm
	Depth map detection accuracy	X,Y:5 mm@1 m; Z:5mm@1m
	Color image detection accuracy	X,Y:2.6 mm@1 m
	Scan frame rate	13 fps@EDP mode
	data type	Original image (black and white + color), depth image, EDP detection results
	Laser safety level	Class 1
Electrical characteristics	Data interface	Gigabit Ethernet(1000Mbit/s)
	Digital I/O	12-pin M12 interface provides power supply and I/O, 3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
	powered by	12~24 VDC
	Typical power consumption	10.8W@24VDC
structure	Overall dimensions	200 mm × 47 mm × 100 mm
	weight	about 1 kg
	IP protection level	IP65
	temperature	Working temperature 0~45°C, storage temperature -30~80°C
	humidity	20%~85%RH non-condensing
General specifications	software	HiViewer
General specifications	operating system	Windows 7/10/11 32/64bits

model	model	MV-DB700S-C
model	name	Single DOE speckle structured light stereo camera (low headroom EDP)
performance	near field of view	595 mm × 460 mm
	far field of view	2255 mm × 1535 mm
	Clear distance (CD)	300mm
	Measuring range (MR)	700mm
	Object detection range	700 mm erection height: 50 mm × 50 mm × 10 mm ~ 450 mm × 450 mm × 200 mm
	Depth map detection accuracy	X,Y:5 mm@1 m; Z:5mm@1m
	Color image detection accuracy	X,Y:2.6 mm@1 m
	Scan frame rate	13 fps@EDP mode
	data type	Original image (black and white + color), depth image, EDP detection results
	Laser safety level	Class 1
Electrical characteristics	Data interface	Gigabit Ethernet(1000Mbit/s)
	Digital I/O	12-pin M12 interface provides power supply and I/O, 3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
	powered by	12~24 VDC
	Typical power consumption	10.8W@24VDC
structure	Overall dimensions	200 mm × 47 mm × 100 mm
	weight	about 1 kg
	IP protection level	IP65
	temperature	Working temperature 0~45°C, storage temperature -30~80°C
	humidity	20%~85%RH non-condensing
General specifications	software	HiViewer
General specifications	operating system	Windows 7/10/11 32/64bits
