ZX-GET-*m
Lomosen
0.5/1/3/5/7/10/15/30/60 m
RJ45 (with locking studs)
RJ45
| Availability: | |
|---|---|
| Quantity: | |
Product Features

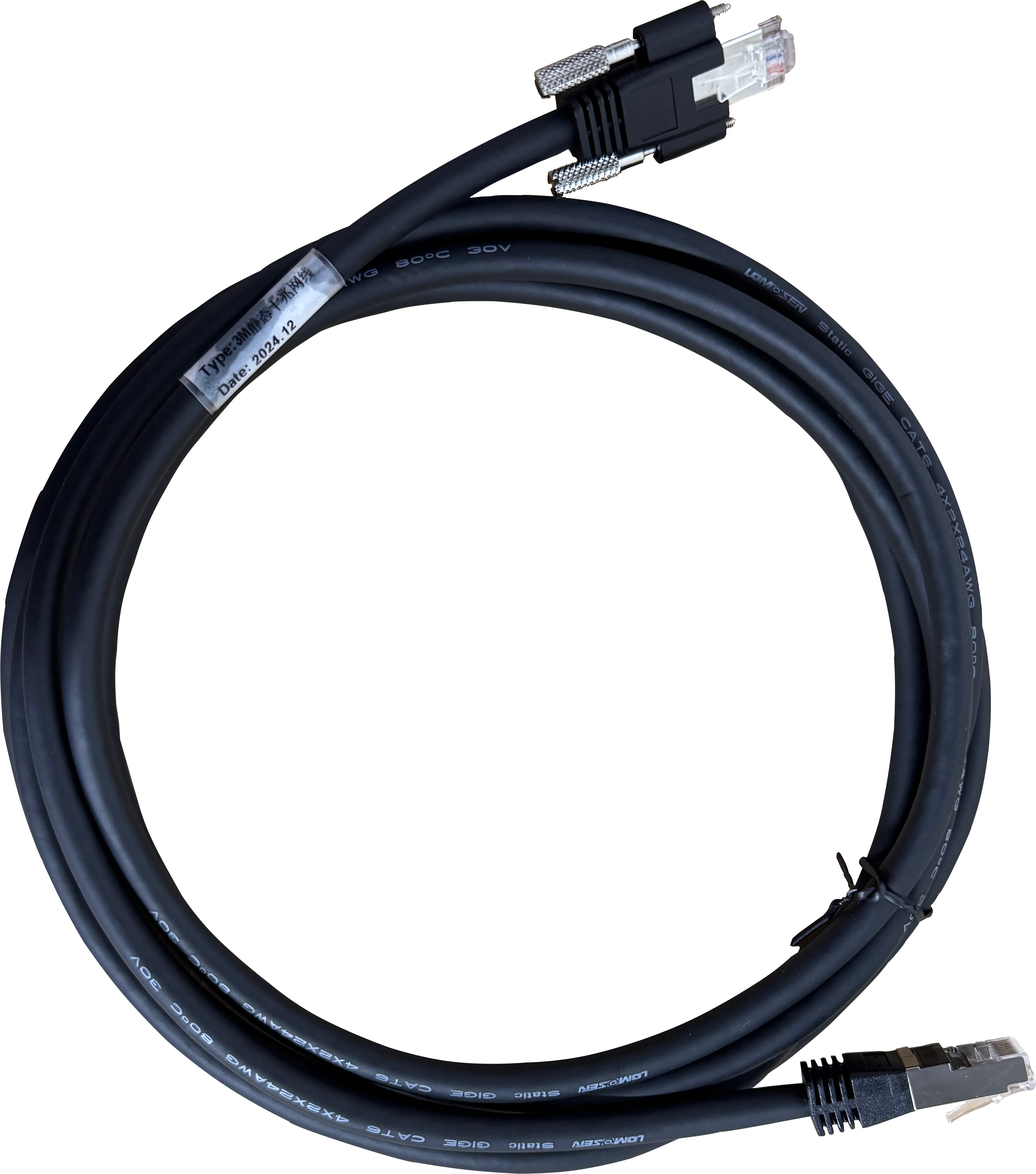

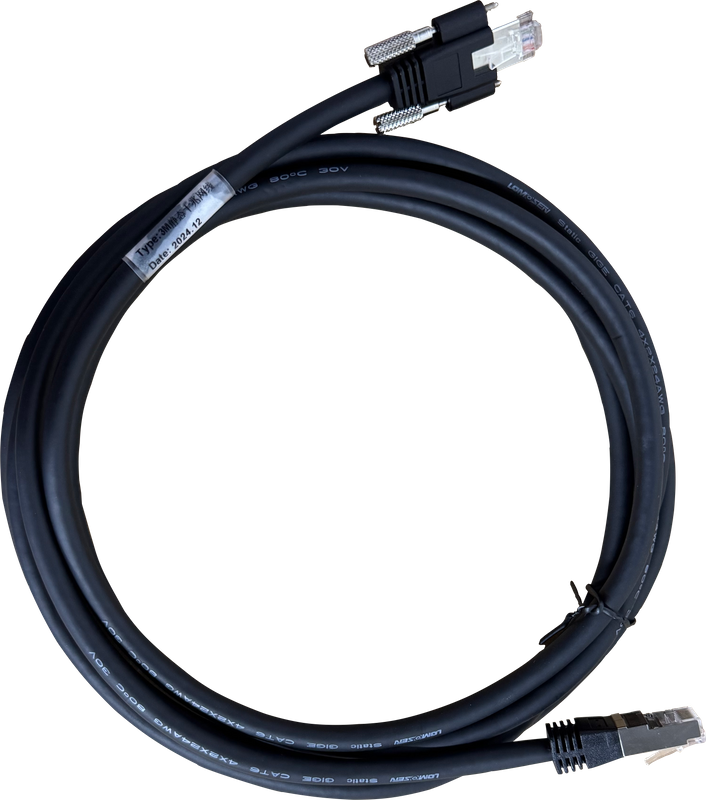

The ZX-GET-*m is an industrial Ethernet cable designed specifically for machine vision systems, suitable for the data transmission and power supply needs of GigE industrial cameras. The cable utilizes a high-quality shielding structure and industrial-grade materials, providing stable high-speed transmission, strong resistance to electromagnetic interference, and reliable communication in complex industrial environments, meeting the application requirements of automated production lines for long-term continuous operation.

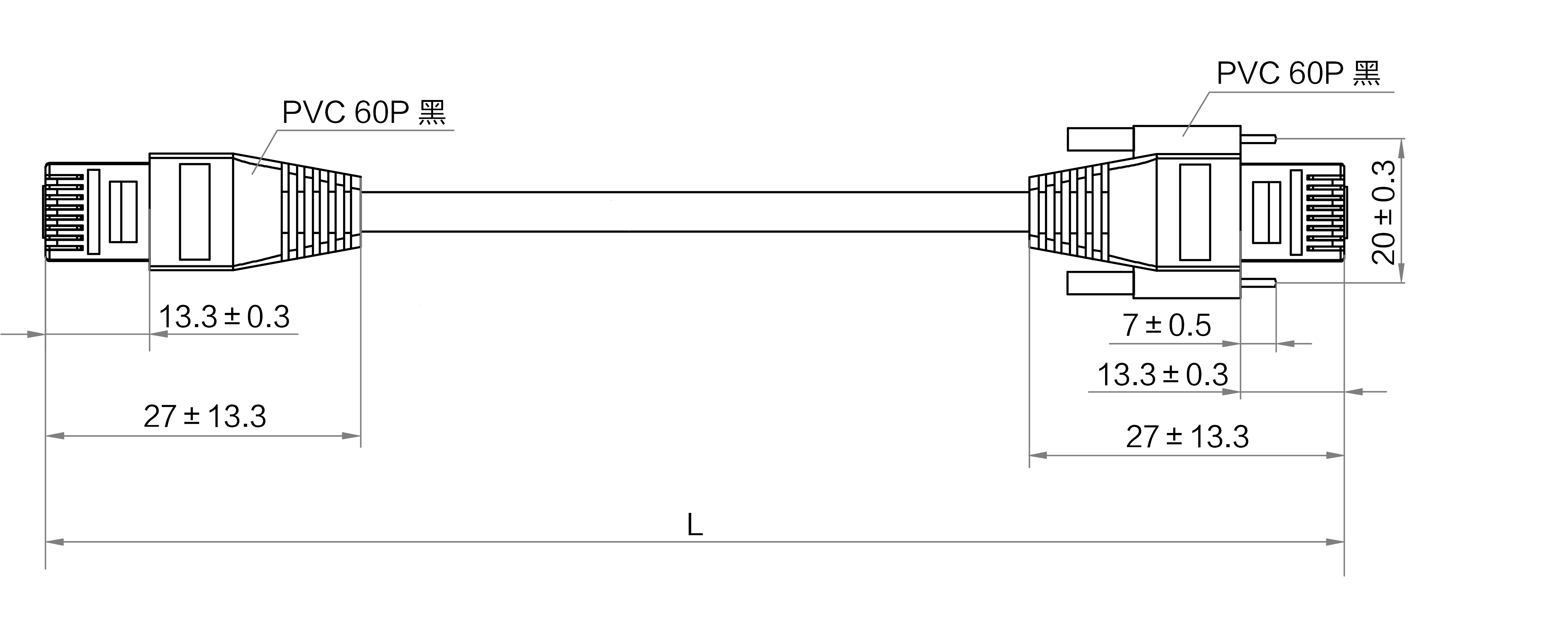

Overall dimensions

Product Features
The ZX-GET-*m is an industrial Ethernet cable designed specifically for machine vision systems, suitable for the data transmission and power supply needs of GigE industrial cameras. The cable utilizes a high-quality shielding structure and industrial-grade materials, providing stable high-speed transmission, strong resistance to electromagnetic interference, and reliable communication in complex industrial environments, meeting the application requirements of automated production lines for long-term continuous operation.
Overall dimensions

| Model | ZX-GET-*m |
| Physical Specifications | |
| A-end Interface | RJ45(带锁定螺柱) |
| B-end Interface | RJ45 |
| Wire Harness Diameter | 6.2mm |
| Length | 0.5/1/3/5/7/10/15/30/60 m |
| Outer Coating Material | PVC |
| Wire Color | Black |
| Connector Durability | ≥750 Mating Cycles |
| Minimum Bending Radius | 74.4mm |
| Applicable Scenarios | Static |
| Electrical Specifications | |
| Maximum Operating Voltage | 30VDC |
| Model | ZX-GET-*m |
| Physical Specifications | |
| A-end Interface | RJ45(带锁定螺柱) |
| B-end Interface | RJ45 |
| Wire Harness Diameter | 6.2mm |
| Length | 0.5/1/3/5/7/10/15/30/60 m |
| Outer Coating Material | PVC |
| Wire Color | Black |
| Connector Durability | ≥750 Mating Cycles |
| Minimum Bending Radius | 74.4mm |
| Applicable Scenarios | Static |
| Electrical Specifications | |
| Maximum Operating Voltage | 30VDC |
