The need for stability testing and cycle time verification in automated production

With the continuous upgrading of automated production, machine vision systems have become a crucial support for manufacturing enterprises to achieve high-quality and high-efficiency production. Recently, the Zhixiang Shijue technical team received a request from a client to conduct vision testing and verification for their online product inspection needs, simulating a real-world production environment. The imaging quality and operational performance of the vision solution were evaluated in this actual production line environment, providing a reliable basis for subsequent mass deployment.

On-site Testing Background

The client's products require rapid positioning and image acquisition during production to support subsequent defect detection and process judgment. Due to the fast production line cycle and high target object movement speed, high demands are placed on the image clarity, acquisition stability, and trigger response speed of the vision system. Therefore, this test focused on dynamic grasping imaging capabilities and continuous operational stability.

Test Plan and Implementation

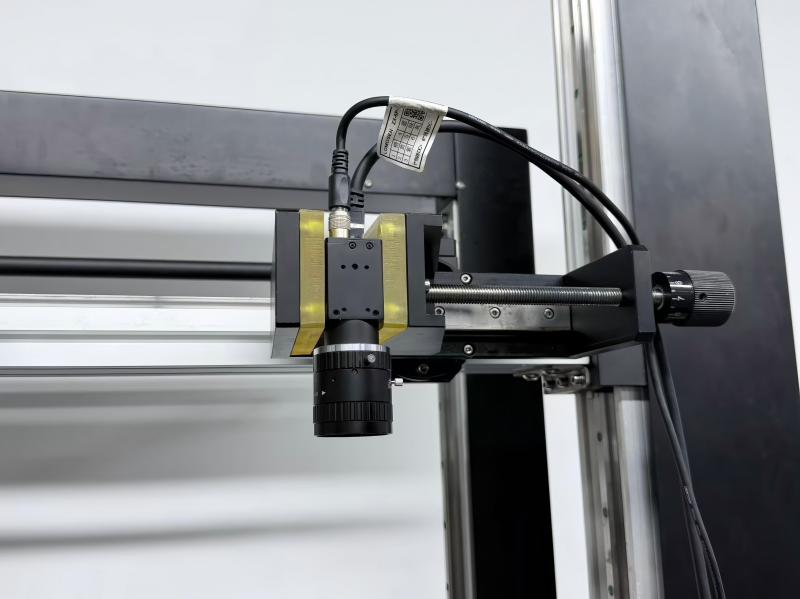

During the testing process, Zhixiang Shijue engineers, considering the characteristics of the client's production line structure, completed the installation of the vision equipment, adjustment of optical parameters, and configuration of trigger logic. After the system was operational, it comprehensively evaluated the following indicators by acquiring real-time images of moving targets on the production line:

Image edge detail and texture restoration capability

Motion blur control effect under high-speed motion

Frame rate and stability under continuous triggering conditions

Image data transmission integrity

Through multiple rounds of debugging and parameter optimization, the vision system gradually reached its optimal working state.

Test Results

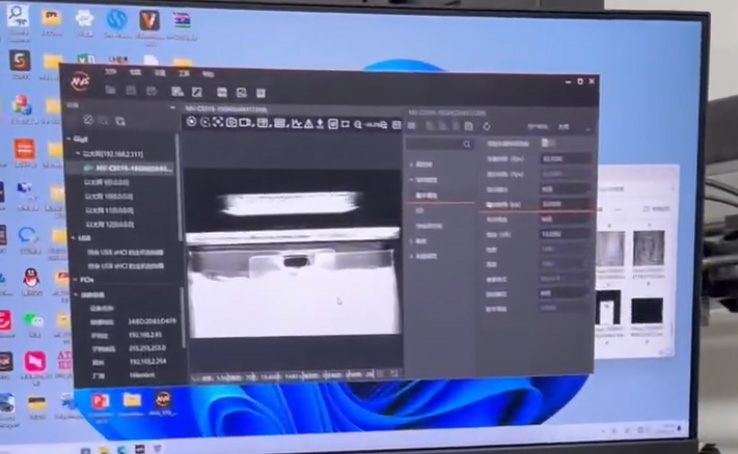

Test results show that the vision system maintained clear and stable image output even under the customer's production cycle time, with complete target feature details and no obvious motion blur. Simultaneously, during continuous triggering operation, the system's capture response was rapid and the frame rate was stable, meeting the production line cycle time requirements and providing a high-quality data foundation for subsequent algorithm detection.

These test results not only verified the feasibility of the solution in dynamic scenarios but also demonstrated the reliable operation capability of the vision system in complex industrial environments.

Solution Value and Advantages

This application case fully demonstrates Zhixiang Shijue's comprehensive capabilities in production line vision integration:

Rapid On-Site Deployment: The engineering team can efficiently complete deployment and debugging in a real production line environment.

Guaranteed Imaging Quality: Clear and stable image output is achieved through optical and system synergy optimization.

High-Speed Acquisition Capability: Meets the continuous grasping requirements under high-paced production conditions.

Solution Adaptability: Vision configuration can be flexibly adjusted according to different product and process characteristics.

These advantages make the vision system not only valuable for testing and verification but also provide a foundation for large-scale application.

As manufacturing enterprises continuously increase their requirements for automated inspection, vision systems have gradually evolved from single-point devices into crucial infrastructure for production quality control. The successful completion of this production line vision test once again proves Zhixiang Shijue's technical accumulation and service capabilities in the implementation of industrial vision applications. In the future, Zhixiang Shijue will continue to deepen industry application practices, providing customers with more efficient and stable machine vision solutions to support the upgrade of intelligent manufacturing.
