MV-SCA004M-05S-WBN-NR
HIKROBOT
1024*768
Fast Ethernet(100Mbit/s)
Mono
2.7 μm*2.7 μm
15fps
M5-mount
Product Introduction
The SCA vision sensor is an ultra-miniaturized intelligent vision device equipped with a 5mm lens, an 800,000-pixel black-and-white sensor, and supports a 120mm focus distance. It is designed for compact machines and small workstations. The sensor uses an embedded high-speed hardware platform with built-in high-precision positioning and measurement algorithms. It can efficiently perform tasks such as counting, target presence detection, and size measurement. It is widely used in industries such as electronics manufacturing, automotive parts, food packaging, and logistics sorting.

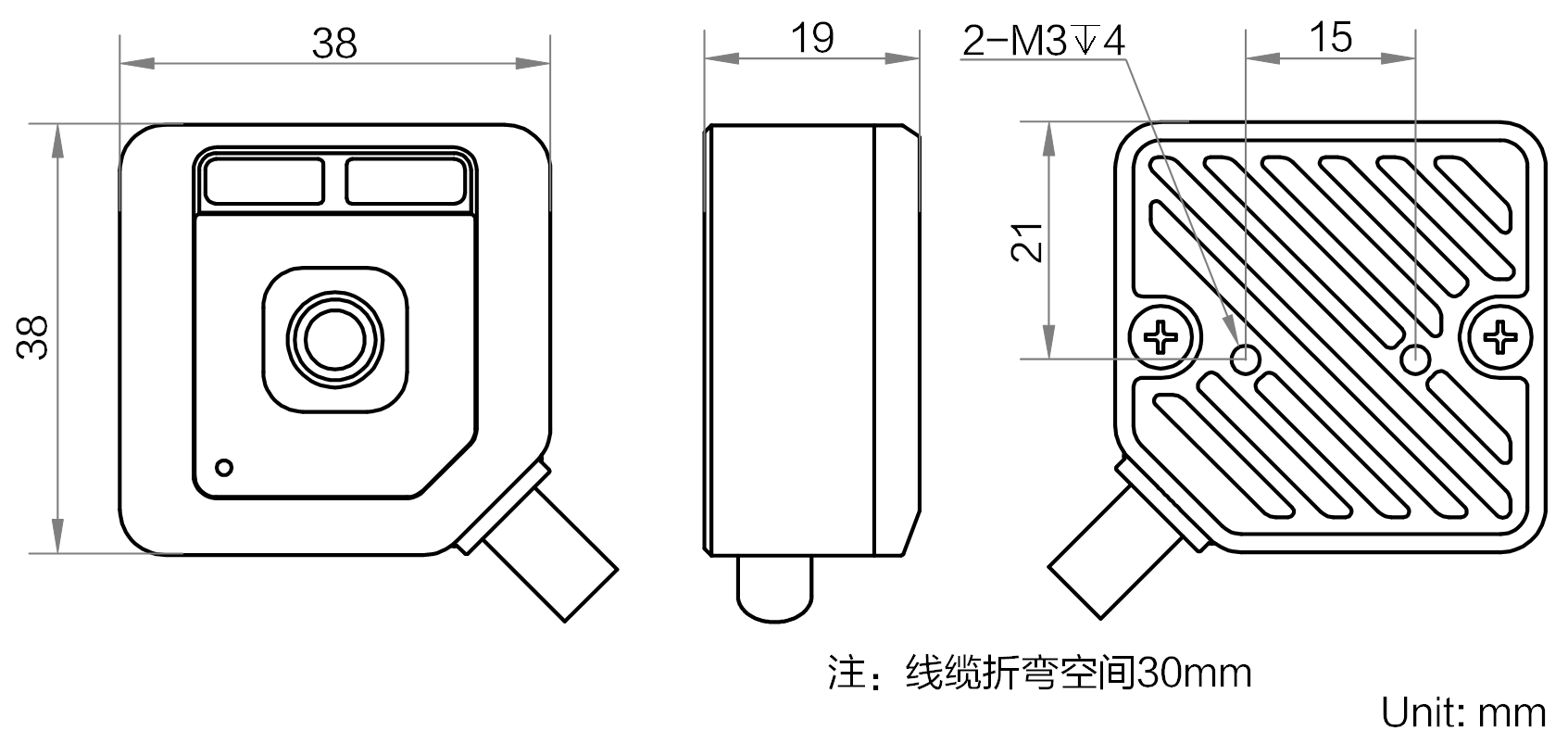

Dimensions
Product Introduction
The SCA vision sensor is an ultra-miniaturized intelligent vision device equipped with a 5mm lens, an 800,000-pixel black-and-white sensor, and supports a 120mm focus distance. It is designed for compact machines and small workstations. The sensor uses an embedded high-speed hardware platform with built-in high-precision positioning and measurement algorithms. It can efficiently perform tasks such as counting, target presence detection, and size measurement. It is widely used in industries such as electronics manufacturing, automotive parts, food packaging, and logistics sorting.
Dimensions
