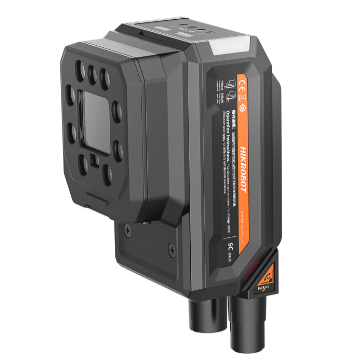

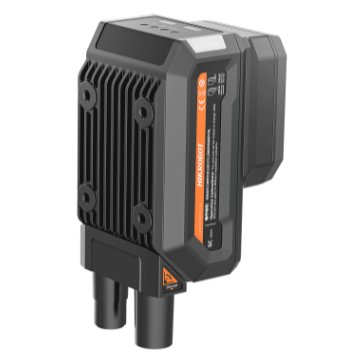

MV-SC5050XC-12M-WBN

5 0 Reviews

Model:
MV-SC5050XC-12M-WBN
Brand:
HIKROBOT
resolution:
2432 × 2048
Data interface:
Gigabit Ethernet(1000Mbit/s)
black and white/color:
Color
Pixel size:
3.45 μm × 3.45 μm
Max frame rate:
60 fps
Lens mount:
M12-Mount, mechanical focus adjustable

Availability:

Quantity:



consult Add to inquiry basket

Key Feature

Embedded AI deep learning engine

Supports intelligent visual applications such as character recognition, object recognition, defect detection, etc., and can easily cope with complex scenarios.

Integrated VM algorithm platform

Built-in 140+ algorithm modules to meet diverse detection and analysis needs, and support free configuration and calling.

Rich IO interfaces

Multi-channel input and output signal access facilitates flexible linkage with various devices to achieve efficient system integration.

Compatible with multiple industrial communication protocols

Supports mainstream industrial communication methods, quickly connects to various automation equipment, and improves deployment efficiency.

Multi-state indicator light design

Real-time feedback on device status, improves debugging efficiency, and simplifies operation and maintenance processes.

IP67 high protection level

Effectively dustproof and waterproof, suitable for various complex and harsh industrial environments.

Dimension

SC5050XC

12mm lens smart camera SC5000X smart camera 5MP smart camera

model	Model	MV-SC5050XC-12M-WBN
model	Name	12mm lens 5 megapixel color SC5000X smart camera
tool	Functional module	VisionMaster algorithm development platform (including deep learning module)
tool	Communication protocol	TCP, UDP, ModBus, serial port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Target size	1/1.45"
	Resolution	2432 × 2048
	Maximum acquisition frame rate	60 fps
	Gain	0 dB ~ 37 dB
	Exposure time	15 μs ~ 3000 μs
	Pixel format	Mono 8, RGB 8
	Black and white/color	Color
platform	Memory	8 GB
platform	storage	64 GB
Electrical Characteristics	Data Interface	Gigabit Ethernet (1000Mbit/s)
	Digital I/O	12-pin M12 connector provides power and I/O, including 3 optocoupler isolated inputs (Line0/1/2), 3 optocoupler isolated outputs (Line3/4/5), 1 RS-232
	powered by	24 VDC
	Power consumption	Typical power consumption: 10 W@24 VDC
	Power consumption	Maximum power consumption: 12.9 W@24 VDC
structure	Focal length	12 mm
	Lens mount	M12-Mount, mechanical focus adjustment
	Lens hood	Semi-polarized lens hood, transparent, fully polarized, diffuse lens hood optional
	Light source	White light source, red, blue or infrared optional
	Indicator Lights	Power indicator PWR, network indicator LNK, user indicator U1/U2
	Dimensions	Straight angle: 112.3 mm × 54 mm × 60.2 mm
	Dimensions	Right angle: 88.7 mm × 54 mm × 82.5 mm
	Weight	About 370 g
	IP protection level	IP67
	temperature	Operating temperature 0 ~ 50°C, storage temperature -30 ~ 70°C
	Humidity	20% ~ 95%RH non-condensing
Additional Information	Certification	CE, KC

model	Model	MV-SC5050XC-12M-WBN
model	Name	12mm lens 5 megapixel color SC5000X smart camera
tool	Functional module	VisionMaster algorithm development platform (including deep learning module)
tool	Communication protocol	TCP, UDP, ModBus, serial port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Target size	1/1.45"
	Resolution	2432 × 2048
	Maximum acquisition frame rate	60 fps
	Gain	0 dB ~ 37 dB
	Exposure time	15 μs ~ 3000 μs
	Pixel format	Mono 8, RGB 8
	Black and white/color	Color
platform	Memory	8 GB
platform	storage	64 GB
Electrical Characteristics	Data Interface	Gigabit Ethernet (1000Mbit/s)
	Digital I/O	12-pin M12 connector provides power and I/O, including 3 optocoupler isolated inputs (Line0/1/2), 3 optocoupler isolated outputs (Line3/4/5), 1 RS-232
	powered by	24 VDC
	Power consumption	Typical power consumption: 10 W@24 VDC
	Power consumption	Maximum power consumption: 12.9 W@24 VDC
structure	Focal length	12 mm
	Lens mount	M12-Mount, mechanical focus adjustment
	Lens hood	Semi-polarized lens hood, transparent, fully polarized, diffuse lens hood optional
	Light source	White light source, red, blue or infrared optional
	Indicator Lights	Power indicator PWR, network indicator LNK, user indicator U1/U2
	Dimensions	Straight angle: 112.3 mm × 54 mm × 60.2 mm
	Dimensions	Right angle: 88.7 mm × 54 mm × 82.5 mm
	Weight	About 370 g
	IP protection level	IP67
	temperature	Operating temperature 0 ~ 50°C, storage temperature -30 ~ 70°C
	Humidity	20% ~ 95%RH non-condensing
Additional Information	Certification	CE, KC
