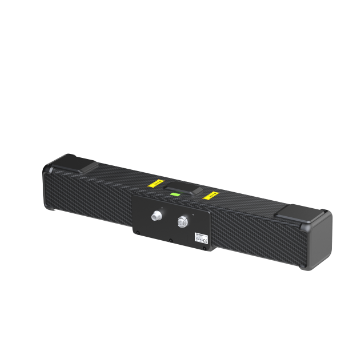

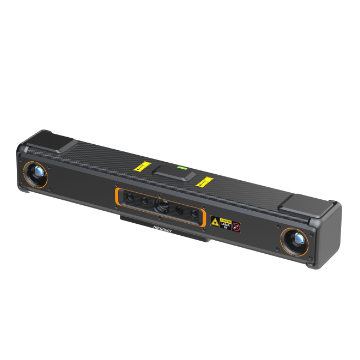

MV-DB1300A

5 0 Reviews

Features

Built-in high-precision deep fusion algorithm, with accuracy up to millimeter level
Ultra-large viewing scene with deep coverage, meeting application scenarios such as palletizing and palletizing, pallet type identification and detection, and large-piece volume measurement
Supports multiple exposure modes and has stronger material adaptability
Equipped with a narrow-band filter to avoid interference from ambient light
IP65 protection level, industrial grade dustproof and waterproof

Overall dimensions

MV-DB1300A3

model	model	MV-DB1300A
model	name	Multi-DOE speckle structured light stereo camera (MV-DB1300A)
performance	near field of view	1350 mm × 1200 mm
	far field of vision	3650 mm × 2750 mm
	Clear distance (CD)	1200mm
	Measuring range (MR)	1800mm
	resolution	3072 × 2048@RGB image 1536 × 1024@depth map
	Depth map detection accuracy	X,Y:5 mm@1.2 m;9 mm@2 m;14 mm@3 m Z:1 mm@1.2 m;2 mm@2 m;3 mm@3 m
	Color image detection accuracy	X,Y:3 mm@1.2 m;4.6 mm@ 2m;6.8 mm@ 3m
	Scan frame rate	1.5 fps
	data type	Original image (black and white + color), depth image, RGB-D image
	Laser safety level	CLASS 3R
Electrical characteristics	Data interface	Gigabit Ethernet(1000Mbit/s)
	Digital I/O	12-pin M12 interface provides power supply and I/O, 3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
	powered by	12~24 VDC
	Typical power consumption	7W@24VDC
structure	Overall dimensions	522 mm × 82.8 mm × 83.1 mm
	weight	About 2.5kg
	IP protection level	IP65
	temperature	Working temperature 0~45°C, storage temperature -30~80°C
	humidity	20%~85%RH no condensation
General specifications	software	HiViewer
	operating system	Windows 7/10/11 32/64bits
	Certification	CE,RoHS

model	model	MV-DB1300A
model	name	Multi-DOE speckle structured light stereo camera (MV-DB1300A)
performance	near field of view	1350 mm × 1200 mm
	far field of vision	3650 mm × 2750 mm
	Clear distance (CD)	1200mm
	Measuring range (MR)	1800mm
	resolution	3072 × 2048@RGB image 1536 × 1024@depth map
	Depth map detection accuracy	X,Y:5 mm@1.2 m;9 mm@2 m;14 mm@3 m Z:1 mm@1.2 m;2 mm@2 m;3 mm@3 m
	Color image detection accuracy	X,Y:3 mm@1.2 m;4.6 mm@ 2m;6.8 mm@ 3m
	Scan frame rate	1.5 fps
	data type	Original image (black and white + color), depth image, RGB-D image
	Laser safety level	CLASS 3R
Electrical characteristics	Data interface	Gigabit Ethernet(1000Mbit/s)
	Digital I/O	12-pin M12 interface provides power supply and I/O, 3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
	powered by	12~24 VDC
	Typical power consumption	7W@24VDC
structure	Overall dimensions	522 mm × 82.8 mm × 83.1 mm
	weight	About 2.5kg
	IP protection level	IP65
	temperature	Working temperature 0~45°C, storage temperature -30~80°C
	humidity	20%~85%RH no condensation
General specifications	software	HiViewer
	operating system	Windows 7/10/11 32/64bits
	Certification	CE,RoHS
