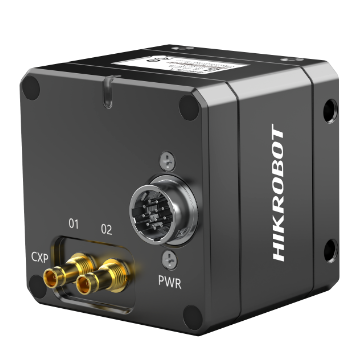

MV-CH120-90X2M-C-NN

5 0 Reviews

Model:
MV-CH120-90X2M-C-NN
Brand:
HIKROBOT
resolution:
4096 × 3072
Data interface:
CoaXPress
Max frame rate:
95.0 fps

Availability:

Quantity:



consult Add to inquiry basket

Key Feature

Resolution of 4096 × 3072, pixel size of 3.4 µm × 3.4 µm.
Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
Adopts CXP-6 interface to transmit data.
Supports Off, Once, and Continuous exposure modes.
Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Dimension

MV-CH120-90X2M-C-NN3

HIKROBOTMV-CH120-90X2M-C-NN

Model	Product Model	MV-CH120-90X2M-C-NN
Model	Type	12MP Area Scan Camera, GMAX3412, 2-link CXP-6, C-mount, without fan, Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Gpixel GMAX3412
	Pixel size	3.4 μm × 3.4 μm
	Sensor size	1.1"
	Resolution	4096 × 3072
	Max. frame rate	95 fps @ 4096 × 3072 Mono 8
	Dynamic range	59.6 dB
	SNR	38.9 dB
	Gain	0 dB to 6.1 dB
	Exposure time	6 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress with DIN interface
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	9 VDC to 24 VDC, CXP-1 supports PoCXP
	Power consumption	Typ. 5.8 W @ 24 VDC
Mechanical	Lens mount	C-mount, flange back focal length 17.52 mm
	Dimension	50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
	Weight	Approx. 207 g (0.5 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows XP/7/10/11, 32/64-bit Linux
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC

Model	Product Model	MV-CH120-90X2M-C-NN
Model	Type	12MP Area Scan Camera, GMAX3412, 2-link CXP-6, C-mount, without fan, Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Gpixel GMAX3412
	Pixel size	3.4 μm × 3.4 μm
	Sensor size	1.1"
	Resolution	4096 × 3072
	Max. frame rate	95 fps @ 4096 × 3072 Mono 8
	Dynamic range	59.6 dB
	SNR	38.9 dB
	Gain	0 dB to 6.1 dB
	Exposure time	6 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress with DIN interface
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	9 VDC to 24 VDC, CXP-1 supports PoCXP
	Power consumption	Typ. 5.8 W @ 24 VDC
Mechanical	Lens mount	C-mount, flange back focal length 17.52 mm
	Dimension	50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
	Weight	Approx. 207 g (0.5 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows XP/7/10/11, 32/64-bit Linux
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
