Views: 0 Author: Site Editor Publish Time: 2025-10-30 Origin: Site
In the fields of machine vision and intelligent inspection, infrared cameras are gradually becoming indispensable visual sensing devices. Unlike traditional industrial cameras that rely on visible light imaging, infrared cameras convert received radiation signals into electrical signals, which are then processed by image processing algorithms to generate visualized thermal images, revealing temperature distributions and material differences that are not directly perceptible to the human eye. This technology enables infrared cameras to achieve accurate imaging even in complex industrial environments, and is widely used in equipment inspection, security monitoring, energy inspection, and scientific research analysis, bringing broader sensing capabilities and application value to visual inspection systems.
An infrared camera is a device that captures the thermal radiation signal of an object and converts it into a visible image. In nature, all objects with temperatures above absolute zero (-273°C) emit infrared radiation (i.e., thermal radiation) to varying degrees. Unlike visible light, infrared radiation does not rely on external illumination, thus allowing imaging even in complete darkness.
In the electromagnetic spectrum, the atmosphere strongly absorbs visible and near-infrared light, but its transmission of infrared light is excellent in the 3–5 μm and 8–14 μm bands; these two bands are known as the "atmospheric windows" for infrared radiation. Utilizing these windows, infrared cameras can clearly observe the thermal distribution of target objects in completely dark environments or under harsh conditions such as smoke and dust.
With this unique advantage, infrared thermal imaging technology is widely used in nighttime security monitoring, industrial inspection, and equipment temperature monitoring, providing reliable support for visual monitoring in complex environments.
The wavelength range of visible light to the human eye is approximately 0.38–0.78 micrometers, while electromagnetic waves with wavelengths longer than 0.78 micrometers are called infrared radiation. Infrared thermal imaging technology is based on this principle: all objects in nature with temperatures above absolute zero (-273°C) radiate infrared radiation at varying intensities.
Infrared cameras use highly sensitive detectors to receive the differences in infrared radiation between the target object and the background, converting these invisible thermal radiation signals into a visible image, forming a thermal image.

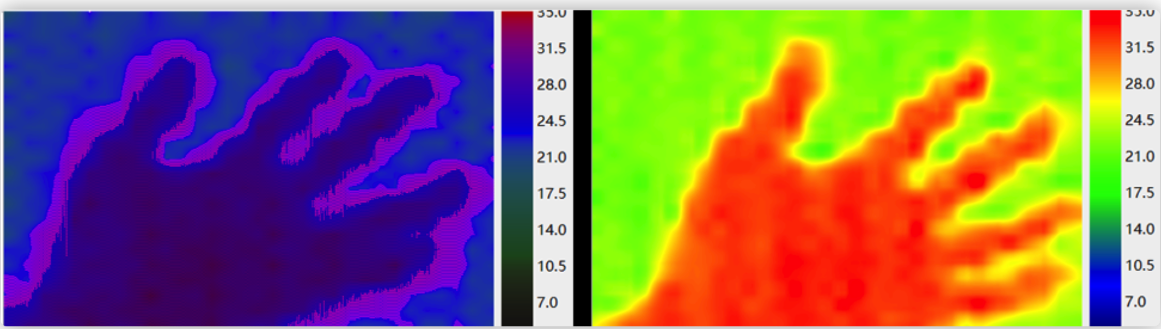

This thermal image can visually reflect the temperature distribution on the surface of an object, allowing the human eye to clearly see areas of temperature change that were previously invisible.
With this imaging mechanism, infrared cameras can not only observe at night or in low-light environments, but also achieve non-contact, high-precision temperature monitoring and analysis in complex industrial inspections, equipment maintenance, and scientific research temperature measurement scenarios.
Infrared cameras, through photoelectric conversion and signal processing, transform the temperature distribution information of a target object's surface into visualized thermal or video images, enabling intuitive monitoring and analysis of temperature changes.
Based on their imaging principles and detection methods, infrared thermal imagers can be broadly categorized into cooled and uncooled types: Cooled infrared thermal imagers employ cryogenic cooling systems, significantly reducing detector noise and offering higher thermal sensitivity and resolution, making them suitable for high-precision applications such as military reconnaissance and space exploration.
Uncooled infrared thermal imagers, on the other hand, require no cooling device, resulting in a more compact structure, lower power consumption, and faster response time. While their sensitivity is slightly lower than cooled imagers, their performance is sufficient for most civilian applications, including industrial inspection, security monitoring, medical diagnosis, and scientific research.
With their stable and reliable imaging performance and low dependence on ambient light, infrared cameras are gradually becoming an important component in fields such as intelligent security, predictive maintenance, energy detection, and automated production monitoring, providing technical support for the intelligent upgrading of multiple industries.
In machine vision, security monitoring, and industrial inspection, thermal imaging and infrared cameras are two commonly mentioned imaging methods. Although both are based on infrared technology, they differ significantly in their working principles, image rendering, and application areas. Understanding these differences helps in selecting the most suitable equipment for different scenarios.
1. Different Detection Principles
Infrared Cameras: Primarily capture infrared radiation emitted or reflected by objects, relying on external infrared light sources or ambient infrared signals. Under certain lighting conditions, they can acquire reflective information from the object's surface, forming a clear image.
Thermal Imaging Cameras: Rely solely on the thermal radiation generated by the object itself, requiring no external light source. They generate images by detecting temperature differences on the object's surface, thus accurately identifying targets even in complete darkness or harsh environments.
2. Differences in Image Information
Infrared Cameras: By capturing the reflection or radiation of light in the infrared band, they can reveal the shape, material characteristics, and contour details of objects, suitable for target recognition and scene monitoring.
Thermal Imaging Cameras: Focus on visualizing temperature information; the output thermal image reflects the temperature distribution of the object. Different temperature zones are represented by color differences, helping to identify overheated components, energy loss points, or concealed targets.
3. Application Scenarios Differences
Infrared Cameras: Commonly used in night vision surveillance, traffic management, medical testing, and scientific research experiments, assisting in target identification and environmental monitoring.
Thermal Imaging Cameras: More suitable for scenarios requiring temperature measurement or heat distribution analysis, such as building energy consumption monitoring, electrical equipment inspection, fire rescue, industrial temperature measurement, and wildlife observation.
4. Cost and System Complexity
Infrared Cameras: Mature technology and relatively low cost, with models ranging from consumer to industrial grade available, suitable for diverse application needs.
Thermal Imaging Cameras: Due to their high-sensitivity thermal sensors and precision temperature calibration systems, they have higher manufacturing costs and are mainly used in professional fields with high temperature accuracy requirements.
In general, infrared cameras focus on image recognition and scene imaging, while thermal imaging cameras focus on temperature analysis and concealed detection. The former prioritizes "clear visibility," while the latter emphasizes "accurate detection." In intelligent monitoring, industrial inspection, and scientific research applications, the two can often complement each other to jointly build a more complete visual inspection and monitoring system.
1. Different Operating Wavelengths:
Short-wave infrared (SWIR): Wavelength range approximately 0.9–1.7 μm (extending to 2.5 μm in some areas).
Long-wave infrared (LWIR): Wavelength range approximately 8–14 μm.
Short-wave infrared is close to visible light, thus it can utilize partially reflected light for imaging; long-wave infrared belongs to the thermal radiation band and relies on the object's own thermal radiation signal.
2. Different Imaging Principles:
SWIR (Short-wave infrared): Relies on the principle of reflection imaging, similar to a visible light camera, but in a different wavelength band. Therefore, it can capture details that traditional cameras cannot recognize, such as differences in material transmittance and humidity changes.
LWIR (Long-wave infrared): Relies on the principle of thermal radiation imaging, that is, detecting the infrared thermal radiation energy of the object itself, which can directly reflect the temperature distribution and is often used for thermal imaging inspection.
3. Different Application Areas:
Short-wave infrared cameras are mainly used for material identification, see-through inspection, and humidity or pollution analysis. They can capture surface details and texture differences that visible light cannot reveal, thus performing exceptionally well in industrial scenarios such as semiconductor inspection, glass bottle inspection, moisture monitoring, and laser alignment.
Long-wave infrared cameras excel at temperature detection and thermal energy monitoring, providing a direct view of heat distribution and energy changes on an object's surface. They are commonly used in electrical equipment inspection, thermal fault diagnosis, building energy consumption analysis, and fire monitoring.
In general, short-wave infrared focuses on "seeing the structure and materials," while long-wave infrared emphasizes "understanding temperature and energy." Both play irreplaceable roles in machine vision systems.
